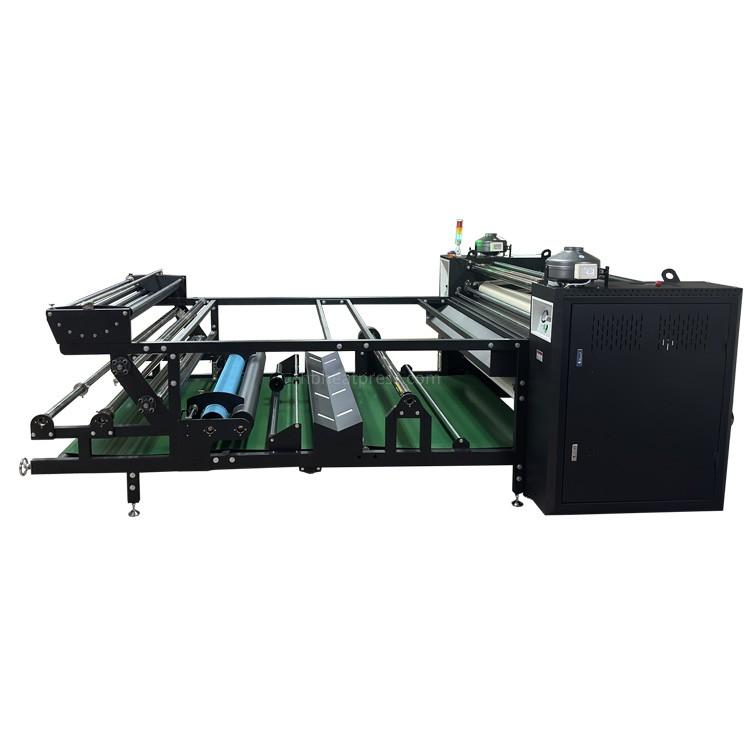

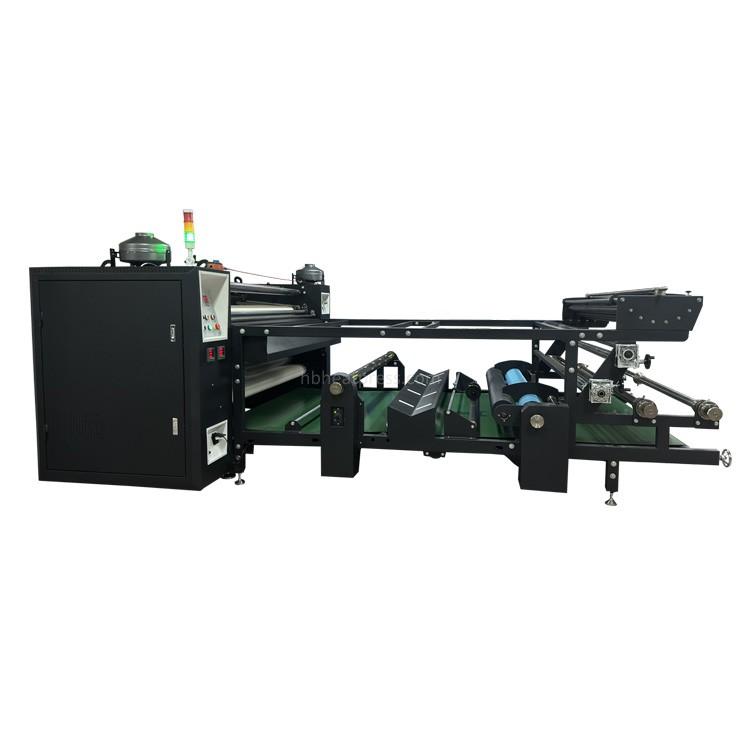

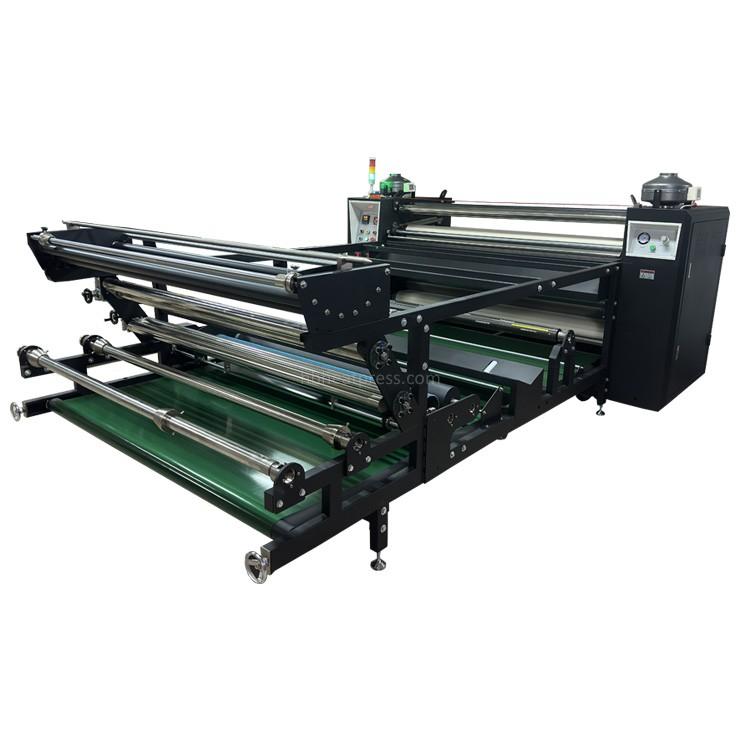

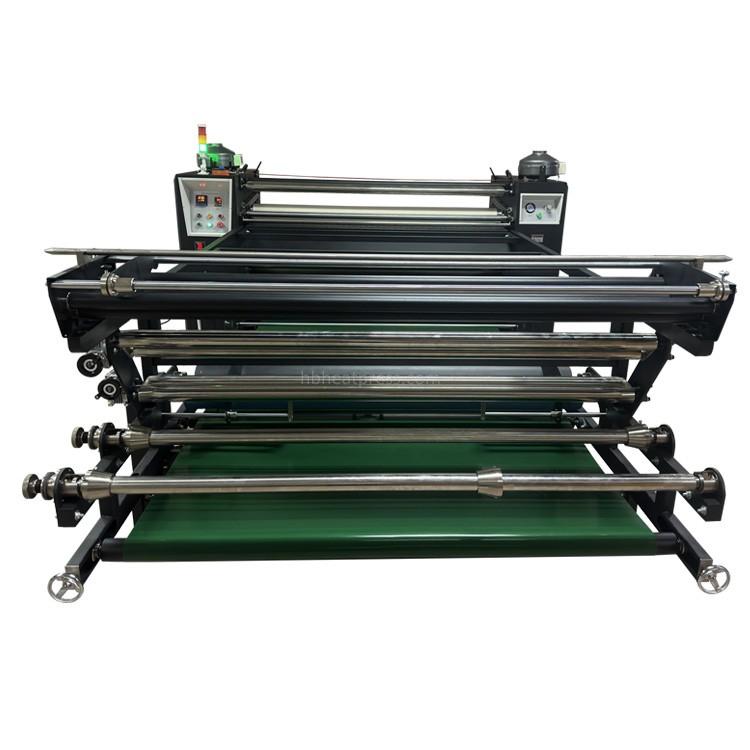

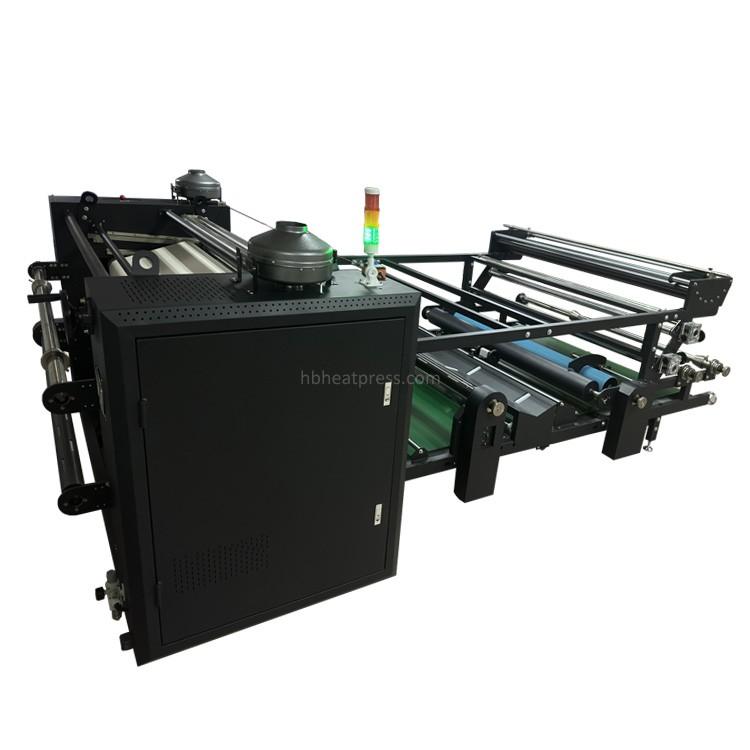

Calendar machines roll sublimation

Drum type: double-layer chrome-plated
Heating type: oil heating
Temperature range: 0-260℃
Drum speed: Adjustable
Voltage: 220V 3 phase, 380V 3 phase

Product Description:

Features

The current of the 420mm diameter calendar roll sublimation is much lower than the speed of the 600mm diameter, which is acceptable to most factories with three-phase electricity. Compared with 600mm and 800mm, it is more popular. Most customers use it to transfer printing sportswear, flags, banners and so on.


There are multiple buttons on the panel, corresponding to different functions. For example, the "start" button, the button "drum forward and reverse", the "blanket enter" button, the "pressure" button, and the "stop" button. The "blanket enter" button controls the motor to make the blanket go forward. The  stop button controls the motor to make the blanket move backwards. The pressure button is to control the cylinders on the left and right sides of the chassis to drive the pressure shaft.


The purpose of the leakage protection switch is that it will trip automatically when any electric component leaks electricity. So it can make sure the safety of operator.


The smoke exhaust system can help to remove part of the oil fume, because when the transfer paper pattern is transferred to the fabric, the high temperature transfer will cause the smoke to be generated.


Temperature, speed, and pressure can all be adjusted according to different substrates. For substrates with different thicknesses, you can choose whether to turn on the pressurized cylinders.


After pressing the automatic shutdown button, wait for the machine to cool down to 90 degrees, then it will shut down directly.


Calendar machines roll sublimation (1).jpg

Technical parameters

No
Item
Data
1
Drum type
Durable chrome-plated double-layer
2
Drum diameter
420mm
3
Drum width
1.7 m (other drum widths are available)
4
Temperature range
0-260℃
5
Control
Button control
6
Main motor power
0.75KW
7
Other motors power
0.15KW and 0.18KW, etc.
8
Preheating power for 380V 3 phase
25KW
9
Amperage for 380V 3 phase
38A
10
Preheating power for 220V 3 phase
22KW
11
Amperage for 220V 3 phase
58A
12
Automatic pneumatic pressure
Yes
13
Automatic blanket alignment
Yes
14
Adjustable blanket length
Yes
15
Automatic blanket moving
Yes
16
Take-up system for printed textile
Optional
17
Fume exhaust system
Optional
18
Textile basket
Optional
19
Number of air shaft
2
20
Working way
Roll to roll, roll to pieces, pieces to pieces
21
Packing dimension
270x150x173cm
22
Volume
7.015 CBM

Working flow

cylinder heat press.jpg

Calender dimension

calender sublimation .jpg

Calendar sublimation package

calendar roll sublimation.jpg
