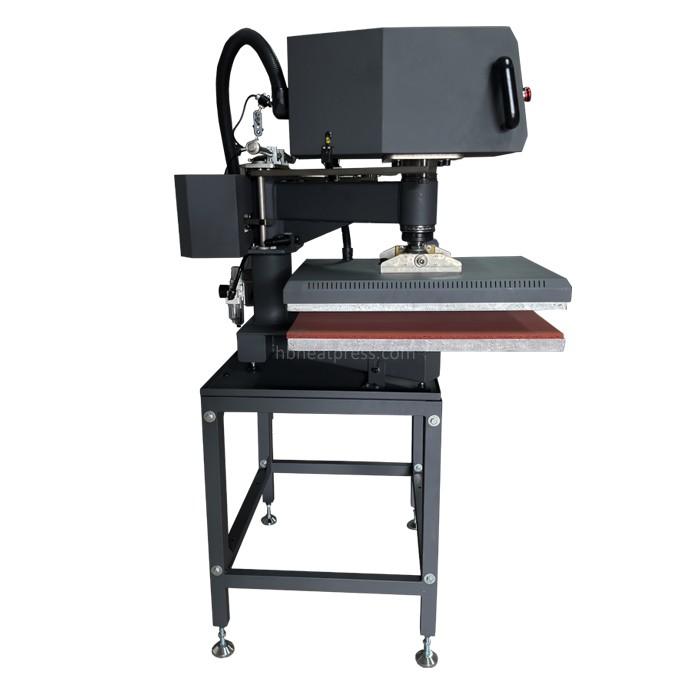

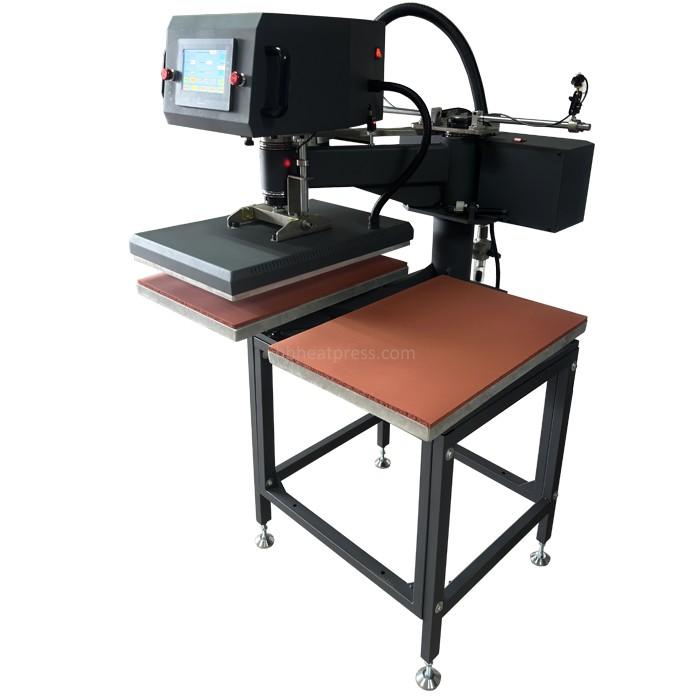

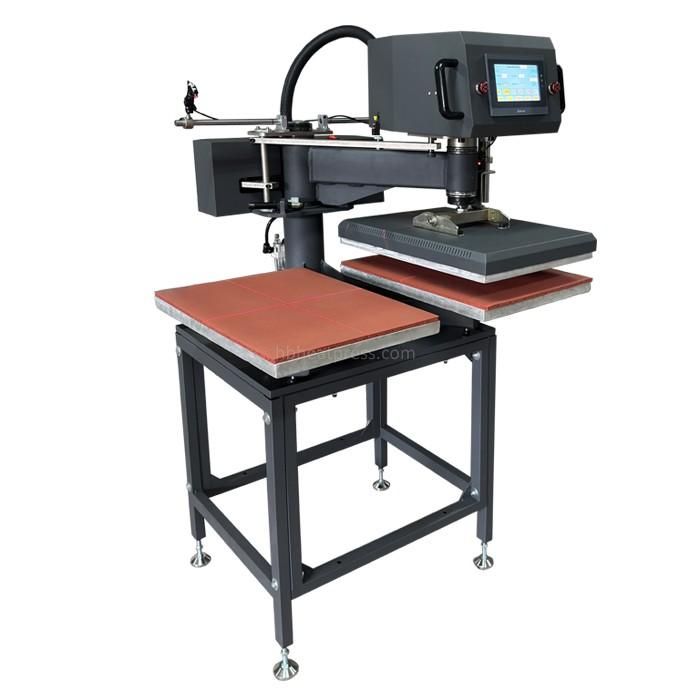

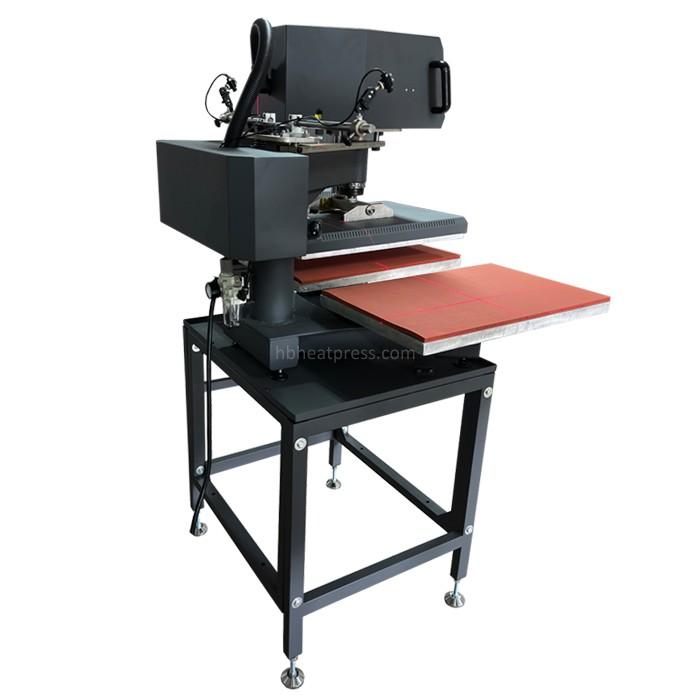

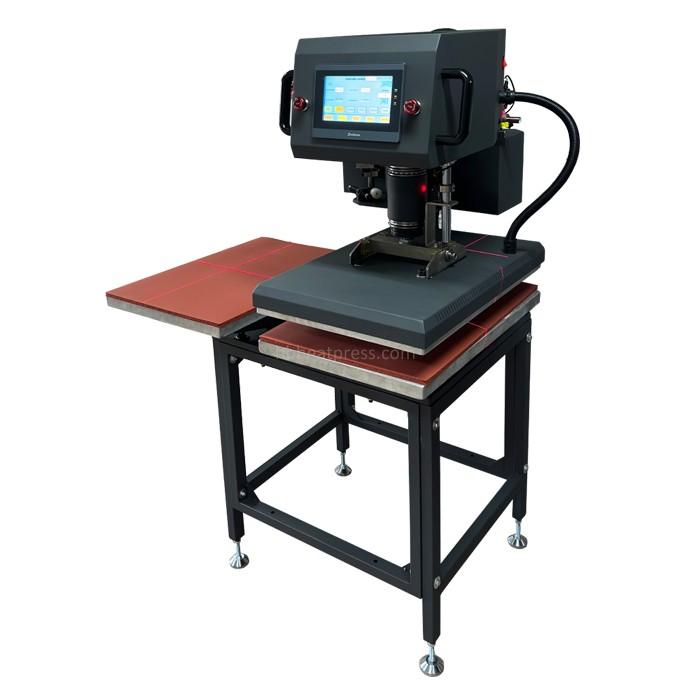

Automatic heat press machine

Platen size: 16x20 inches and 16x24 inches
Temperature range: 0-300℃
Timer control: 0-999seconds
Pressure: Adjustable
Machine type: Automatic Pneumatic

Product Description:

Features

Why do we call it a high pressure shaking head heat transfer machine? Because it has a larger diameter cylinder than other heat presses of the same size. It is suitable for pressing clothes, backpacks, coasters, metal and so on. It is very popular in European market, American market and so on.

Chinese, English, and Spanish are the three languages available on the touch screen control page. To transition between modes, there are automated and manual modes. The term "automatic mode" refers to the ability of the head to swing, push down, and rise automatically.

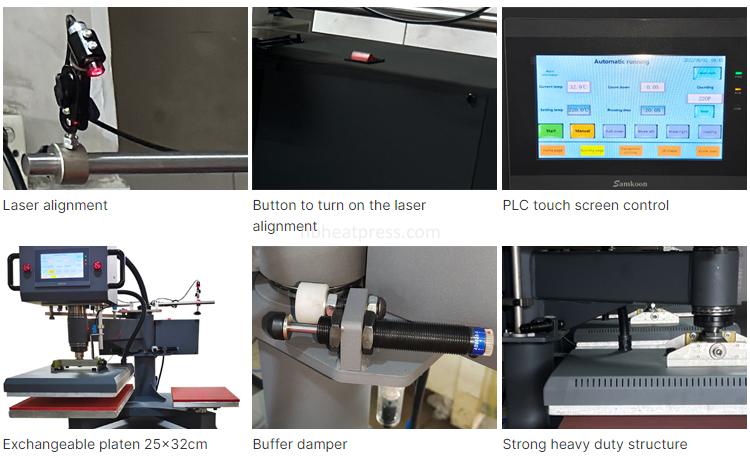

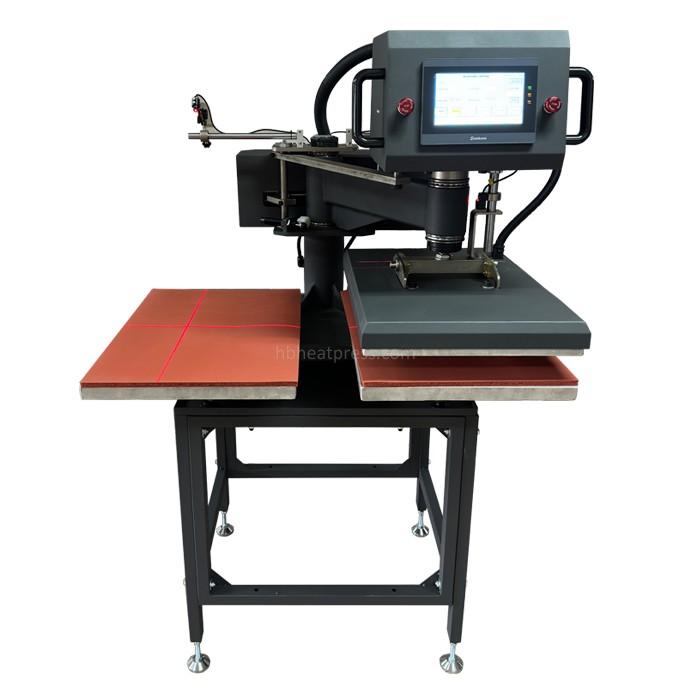

The machine's left and right stations both contain a set of laser alignments that can aid users in swiftly and precisely positioning clothing. This is crucial for performing DTF transfers. Simply deactivate infrared positioning using the machine's button if you don't need it.
It uses thicker swing arm, larger diameter cylinders, and other components. In addition, a base plate measuring 25 x 32 cm that can be readily changed is available.

There are emergency stop buttons provided on the left and right sides of the PLC display. The heated plate will rise when the stop button is pressed.

Buffer dampers of the highest caliber lessen impact noise and produce a relaxing working atmosphere.Reduce the impact between the machines significantly and prevent the left and right swing arms from damaging the machine.

Technical parameters

No	Item	Data
1	Total Power	3.5KW
2	Platen size	40x50cm(16"x20") and 40x60cm(16"x24")
3	Timer control	0-999 seconds
4	Temperature range	0-300℃
5	Touchscreen control	Yes
6	Language	Chinese, English and Espanol
7	Voltage	220V 1 phase
8	Plug type	European plug, UK plug, American plug, etc.
9	Thickness of silicone pad	1cm
10	With laser alignment	Yes
11	Exchangeable platen design	Yes
12	Optional exchangeable platen size	25x32cm
13	Gross weight	225 kg (included exchangeable platens)
14	Packing dimension	107x100x105cm
15	Package type	Plywood case
16	HS Code	8443399000
