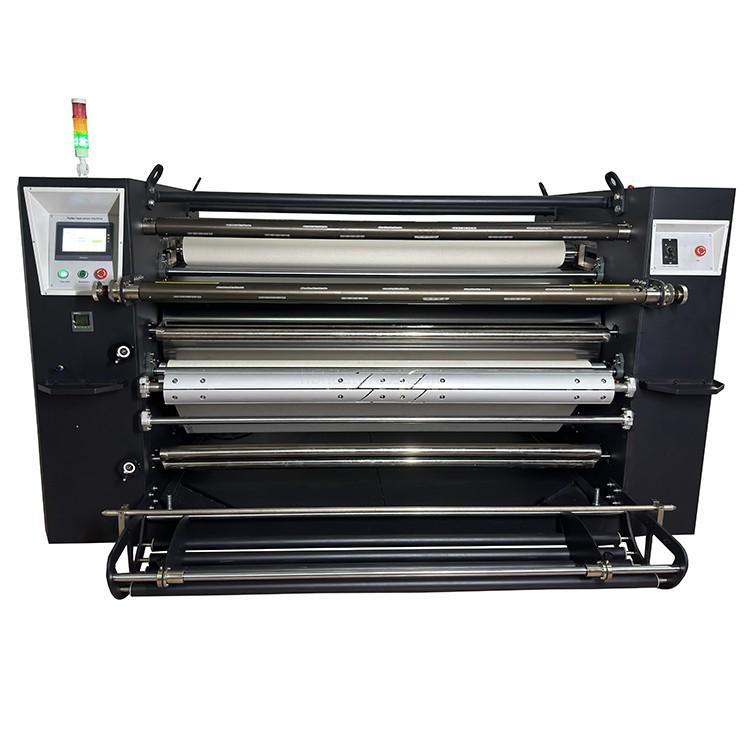

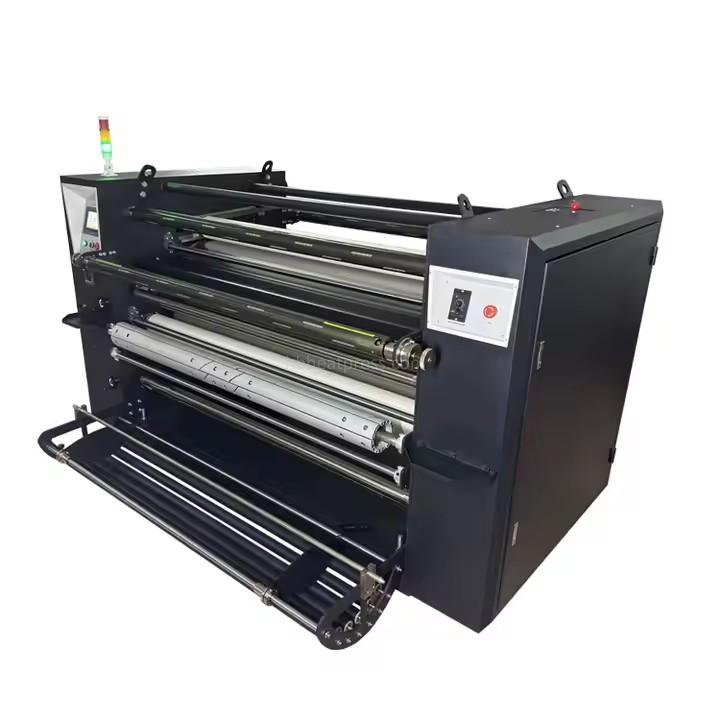

Working method: Roll to roll sublimation printing Drum width: 2.0m (other sizes are available) Drum diameter: 420mm Voltage: 220V 3 phase, 380V 3 phase
Features
The roll to roll sublimaton calandra is ideal for most shops that are already using the 210mm diameter to switch to 420mm diameter in order to increase production. Compared with the calender roll heat transfer machine with a workbench, it is easier to use, especially for fabric feeding in. So for users who only transfer roll-to-roll, we highly recommend this machine.
Speed Adjustment: This calandra has adjustable speed setting to accommodate different types of substrates and designs. This flexibility helps optimize production efficiency and print quality.

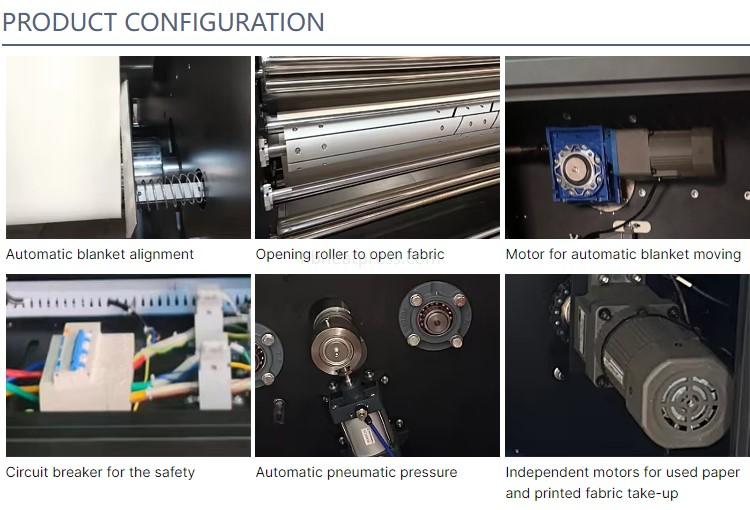

Rolling Handling System: The machine typically includes the opening roller and tension controls to handle the feeding and take-up of the rolls. This helps ensure smooth feeding and reduces the risk of wrinkles.
Pressure Adjustment: Proper pressure is essential for effective sublimation. The calender has adjustable pressure setting to ensure that the transfer is uniform across the entire width of the roll.
Top Configuration: All paper loading shafts, all paper take-up shafts and printed fabric take-up are using air shafts.
Safety Features: It is equipped with safety mechanisms to protect operators and prevent accidents, such as emergency stop buttons of both left side and right side, and a circuit breaker to cut off power immediately when electricity leakage happens.
Durability: This thermal transfer machine is built to withstand the rigors of continuous running, featuring robust construction and high-grade materials, such as the thick drum, the heavy-duty basket, etc. to ensure longevity and reliability.
Technical parameters
No | Item | Data |
1 | Total Power | 25KW (220V 3 phase) |
2 | Total power | 28KW (380V 3 phase) |
3 | Drum width | 2000mm (other drum widths are available) |
4 | Drum diameter | 420mm (600mm and 800mm are available) |
5 | Speed | Adjustable |
6 | Temperature range | 0-260℃ |
7 | Control panel | Button control |
8 | Language | English and Espanol |
9 | Automatic shutdown | Yes |
10 | Automatic blanket alignment | Yes |
11 | Adjustable blanket length | Yes |
12 | With textile basket | Yes |
13 | With opening roll | Yes |
14 | Heating type | Thermal oil heating |
15 | Number of air shaft | 5 |
16 | Working way | Roll to roll |
17 | Packing dimension | 301x161x175cm |

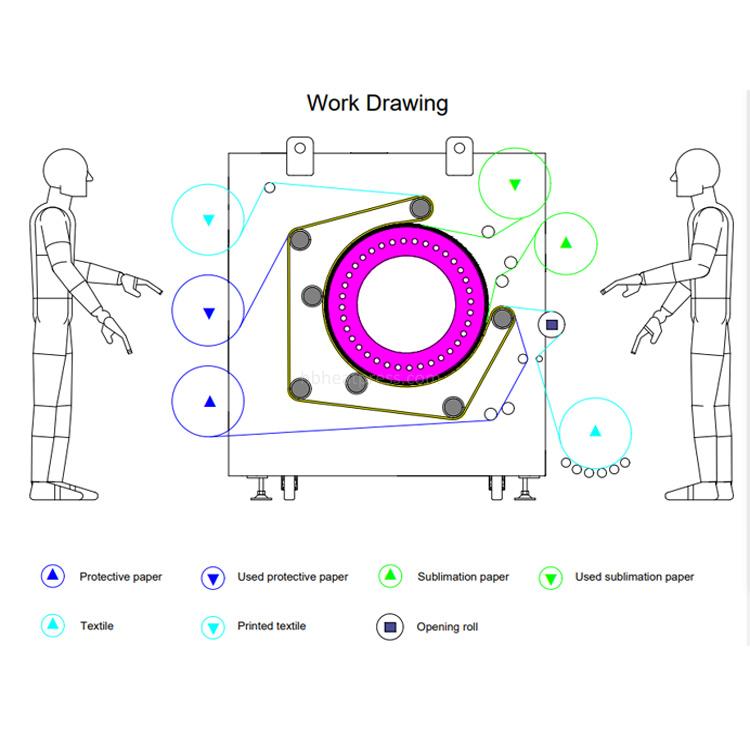

Working flow

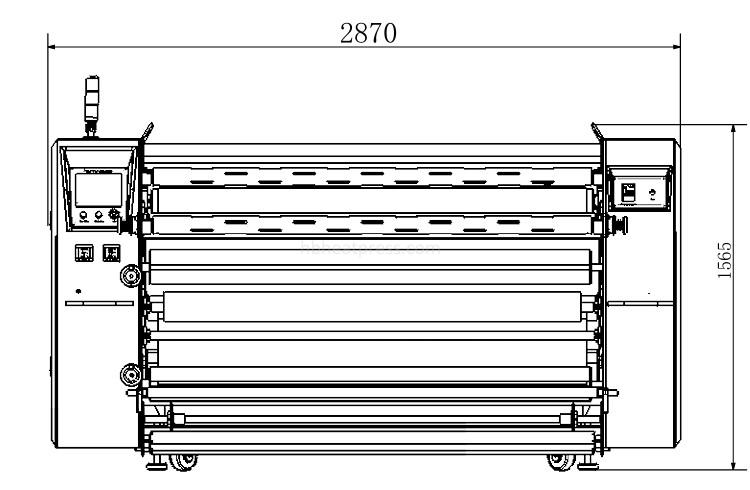

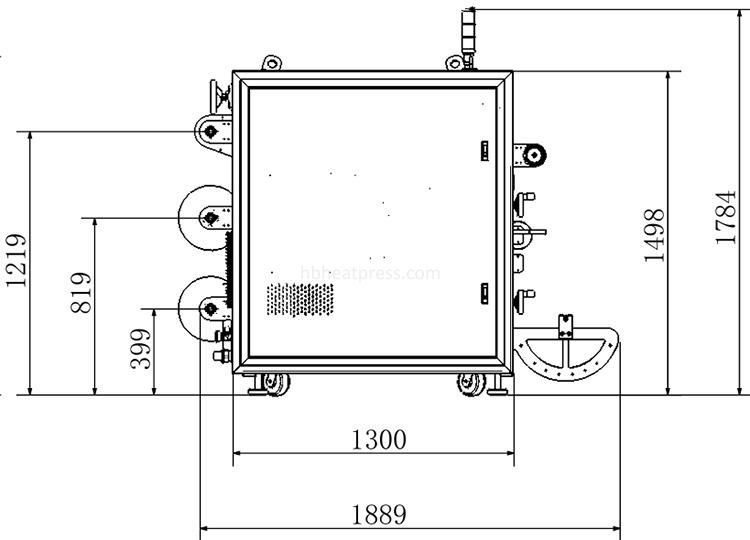

Machine dimension
Calendar heat press package
Quality control for roll heat press
How to choose a suitable calander sublimation
How to maintain the roll heat press
