Machine type: Fully automatic pneumatic Package: Plywood case Assembly: No need to assemble it Voltage: 220V 1 phase Plug: Optional
US$1650-US$1800

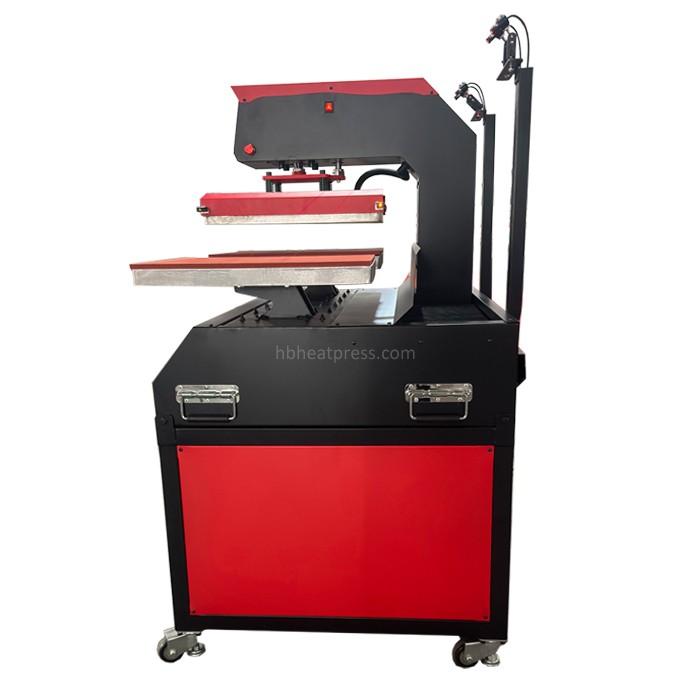

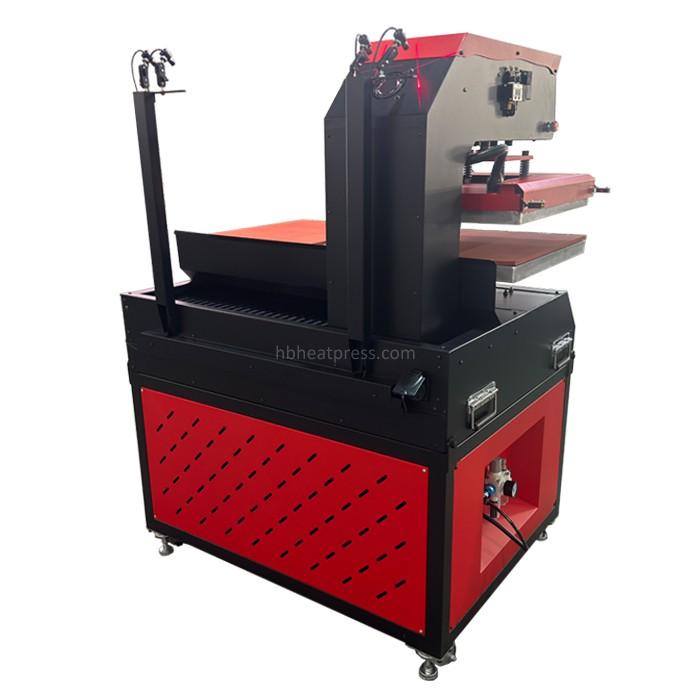

Features
It is perfect for sublimation because the heating plate thickness is 7cm. It is heavy duty design. Sublimation requires the best heat press machine. Available in 40x50cm and 40x60cm.

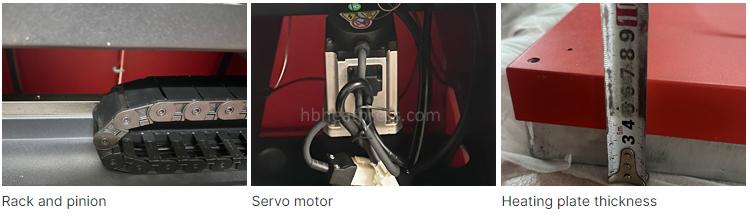

A horizontal head movement mechanism with great precision is created by combining a servo motor and precision rack and pinion.
swift reaction time, high positioning repeat accuracy, and more steady movement.
The heating plate with a thickness of 7cm allows you not to worry about uneven heating and deformation of the heating plate after long-term use. Moreover, because of the large thickness, the heat preservation effect is good, so that it can be continuously pressed.
Adjustable pressure, ranges from 0-8 kg to be suitable for different substrates.
The laser alignments has a plug. So if you don't need to turn on them, you can pull out the plug.
Optional exchangeable platens 10x15cm and 20x30cm, if you need the machine for children shirts also, you can choose to come with them.
Technical parameters
No | Item | Data |
1 | Total Power | 3.5KW |
2 | Platen size | 40x50cm and 40x60cm |
3 | Timer control | 0-999 seconds |
4 | Temperature range | 0-300℃ |
5 | Touchscreen control | Yes |
6 | Language | English and Espanol |
7 | Motor type | Servo motor |
8 | Voltage | 220V 1 phase |
9 | Plug type | European plug, UK plug, American plug, etc. |
10 | Thickness of silicone pad | 1cm |
11 | Exchangeable platen design | Yes |
12 | Optional exchangeable platen size | 10x15cm and 20x30cm |
13 | Gross weight | 280kg |
14 | Packing dimension | 101x98x156cm |
15 | Package type | Plywood case |
16 | HS Code | 8443399000 |

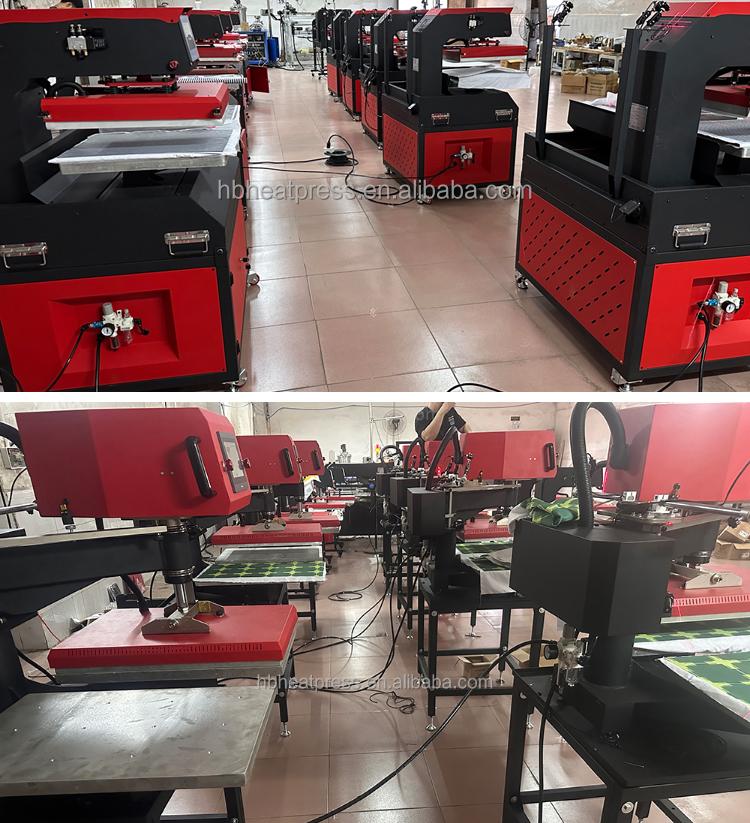

Heat press workshop

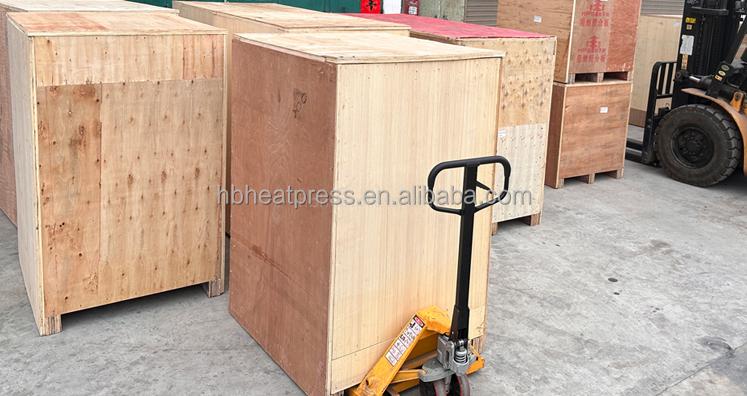

Automatic heat press package
FAQ:
Q1：Is it pneumatic or electric?
A1: It is pneumatic.
A2: You need the 1.1KW power and 50L capacity air compressor.
A3: You don't need. It comes the entire set without any part removed.
Quality control for roll heat press

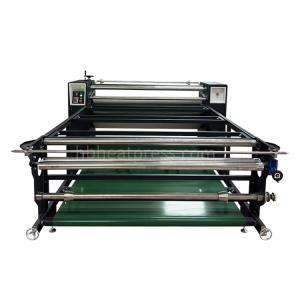

How to choose a suitable calander sublimation
