Platen size: 16x20 inches and 16x24 inches Temperature range: 0-300℃ Timer control: 0-999seconds Pressure: Adjustable Machine type: Pneumatic
Features

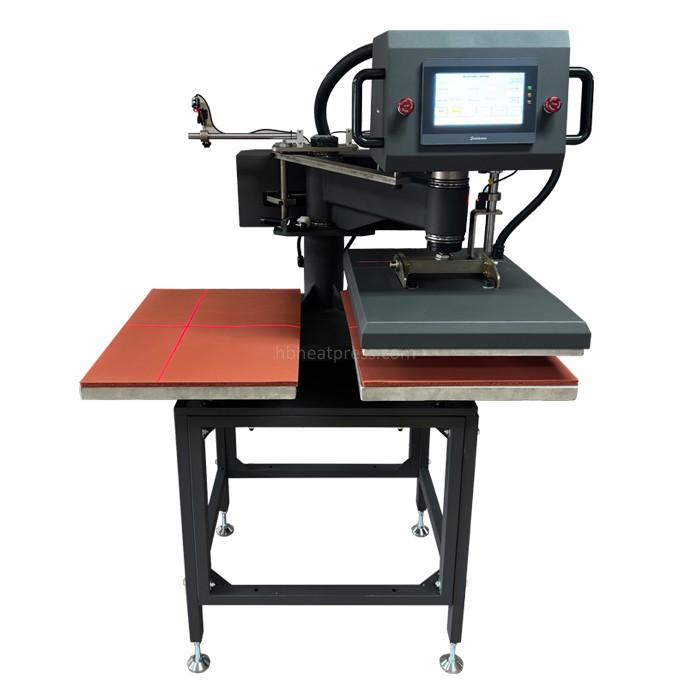

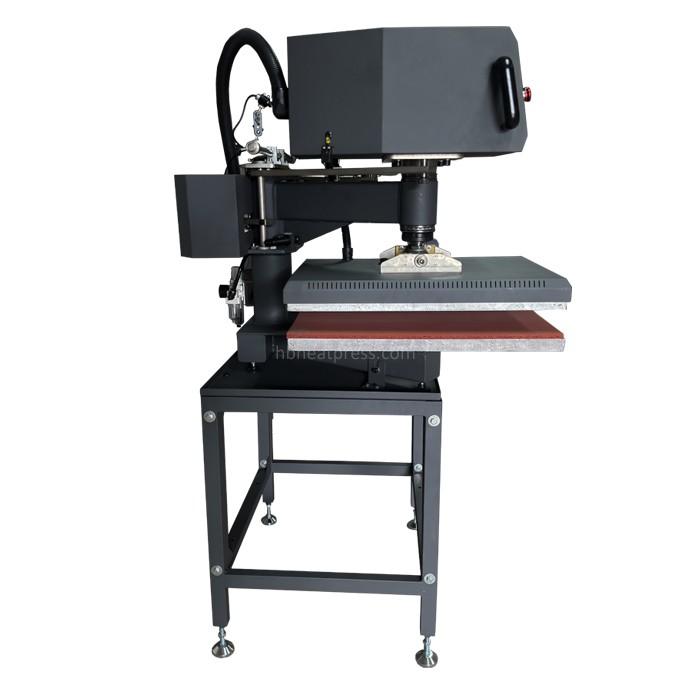

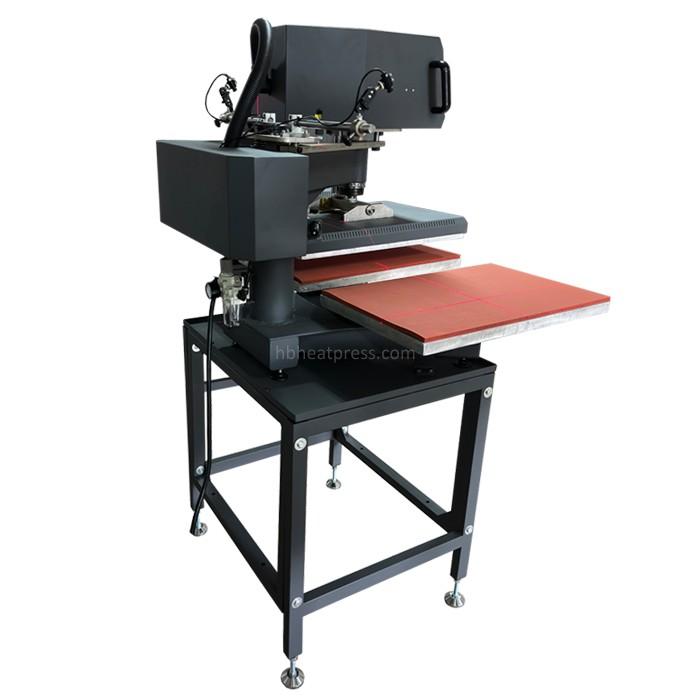

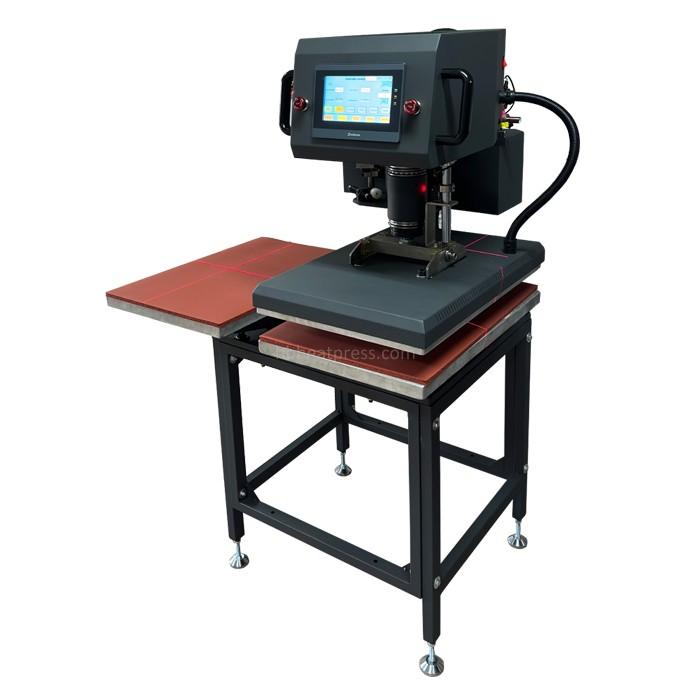

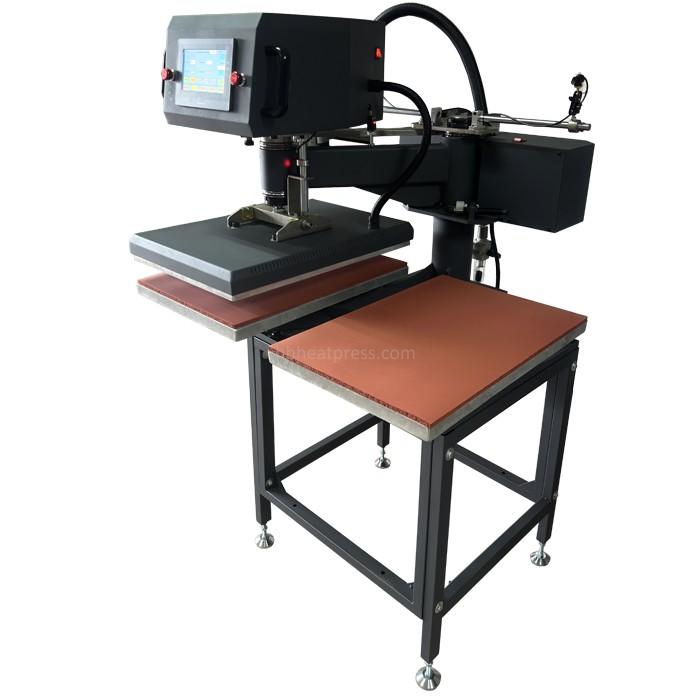

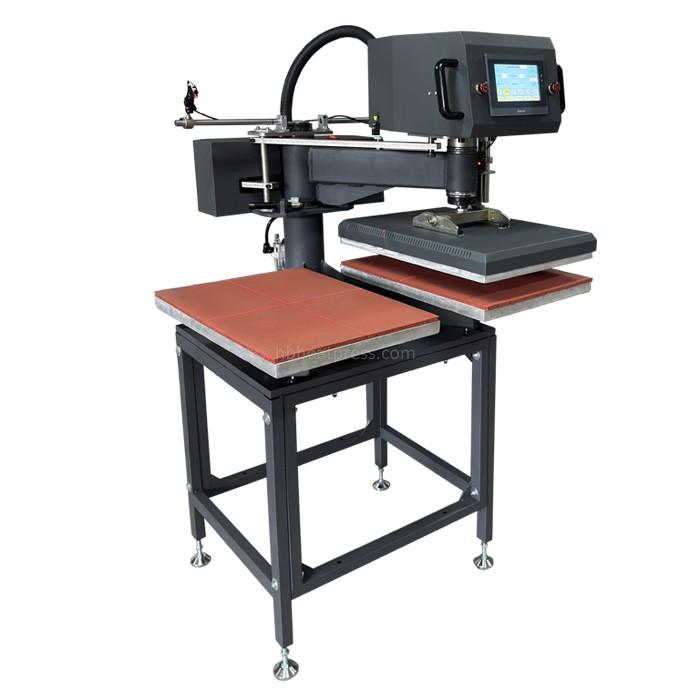

This machine adopts a shaking head design, which does not take up space and saves time and effort in operation. It adopts a large cylinder with a diameter of 125mm, which is larger than that of ordinary button-controlled heat presses. Whether you use it for clothes heat transfer, clothes sublimation, or metal sublimation, it is suitable.
We have two oscillating head pneumatic heat presses, one with touch screen control panel and one with normal button control panel. The touchscreen control-panel version features more expensive machine architecture, including a thicker swing arm, including larger-diameter cylinders, and more. In addition, there is a base plate 25X32 cm that can be quickly replaced to choose from. High-quality dampers reduce impact noise and create a comfortable working environment.
Significantly reduce the impact between the machines and avoid damage to the machine caused by the left and right swing arms.
The touch screen control page has three languages: Chinese, English, and Spanish. There are automatic mode and manual mode to switch.
The left side and right side of the PLC display are installed with stop buttons for emergency. When the stop button is hit, the heating plate will goes up.
Technical parameters
No | Item | Data |
1 | Total Power | 3.5KW |
2 | Platen size | 40x50cm(16"x20") and 40x60cm(16"x24") |
3 | Timer control | 0-999 seconds |
4 | Temperature range | 0-300℃ |
5 | Touchscreen control | Yes |
6 | Language | Chinese, English and Espanol |
7 | Voltage | 220V 1 phase |
8 | Plug type | European plug, UK plug, American plug, etc. |
9 | Thickness of silicone pad | 1cm |
10 | With laser alignment | Yes |
11 | Exchangeable platen design | Yes |
12 | Optional exchangeable platen size | 25x32cm |
13 | Gross weight | 225 kg (included exchangeable platens) |
14 | Packing dimension | 107x100x105cm |
15 | Package type | Plywood case |
16 | HS Code | 8443399000 |
Heat press package

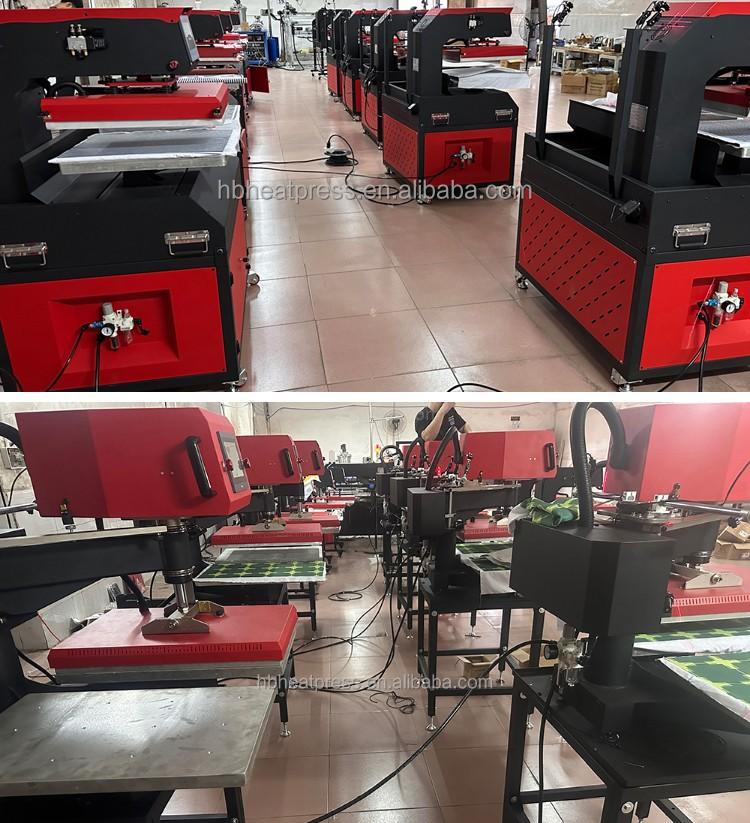

Heat press workshop
FAQ:
Q1: Does it come with laser alignment?
A1: Yes, it does.
Q2: Does it come with exchangeable platen for kid's shirt?
A2: It's the option. Depends on your need.
Q3: Do I need an air compressor for it?
A3: Yes, you need.
Q4: What color it can be?
A4: It can be blue color, gray color, black color, etc.
Quality control for roll heat press
How to choose a suitable calander sublimation
How to maintain the roll heat press
