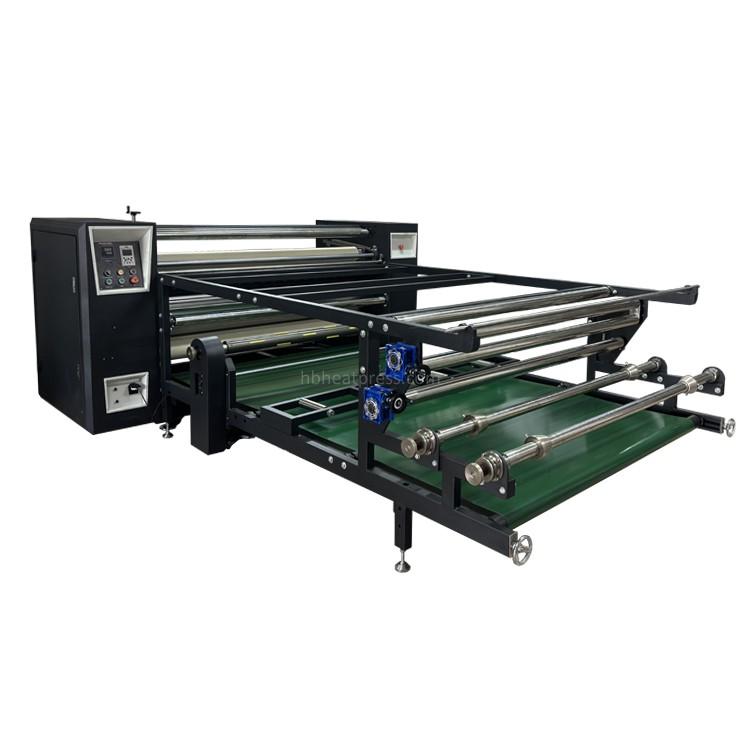

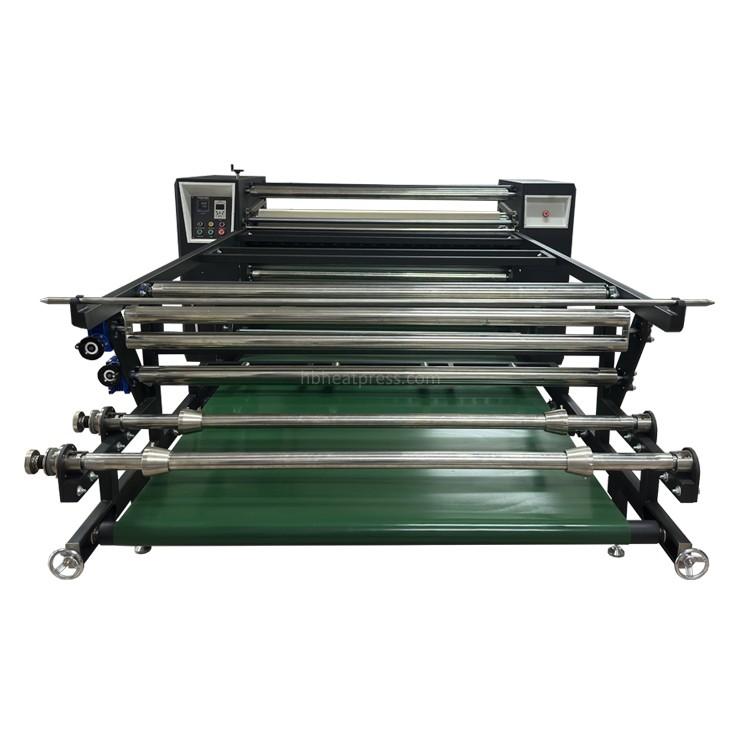

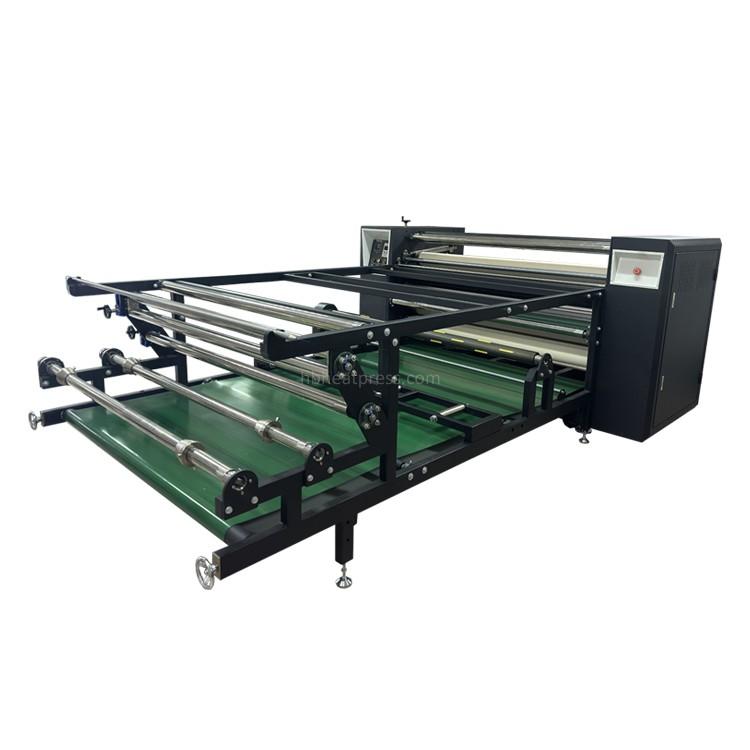

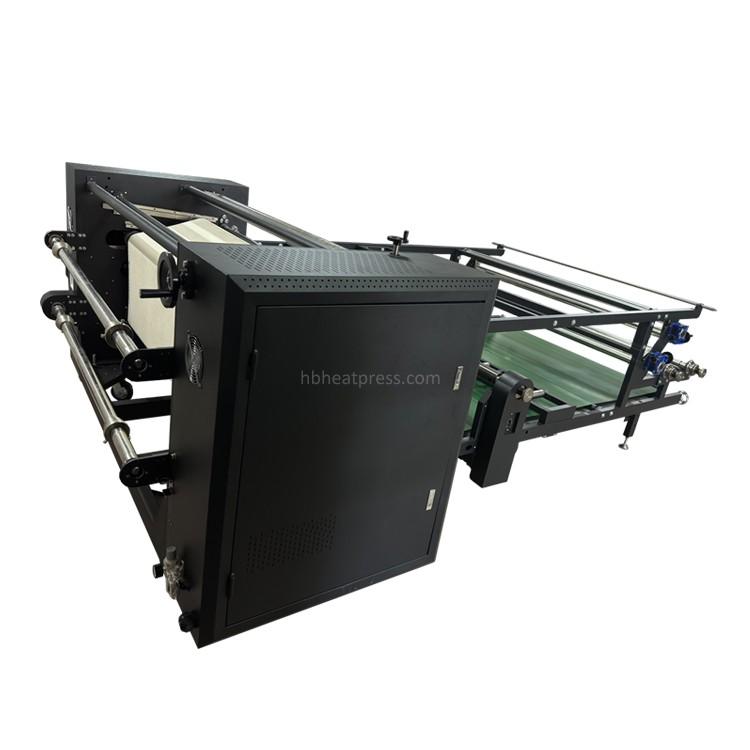

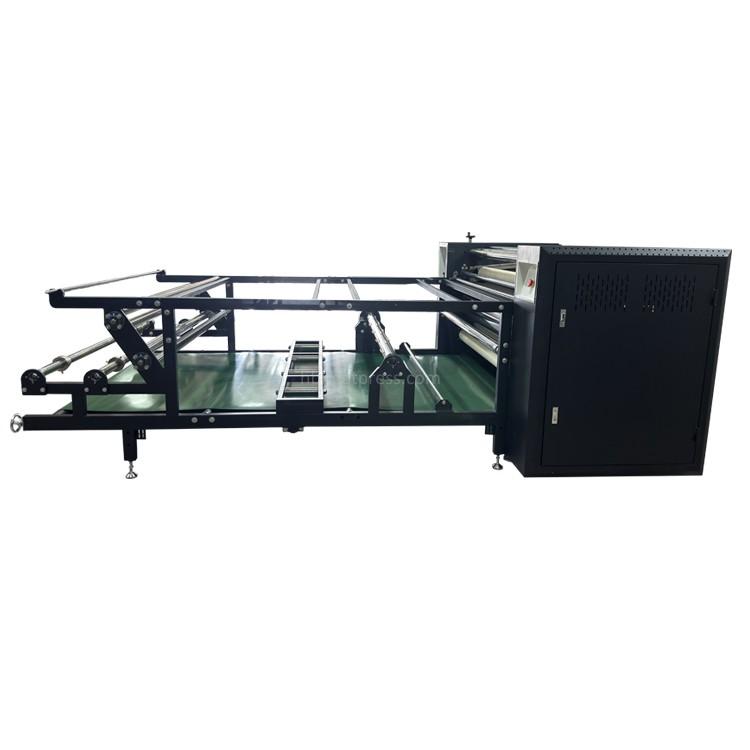

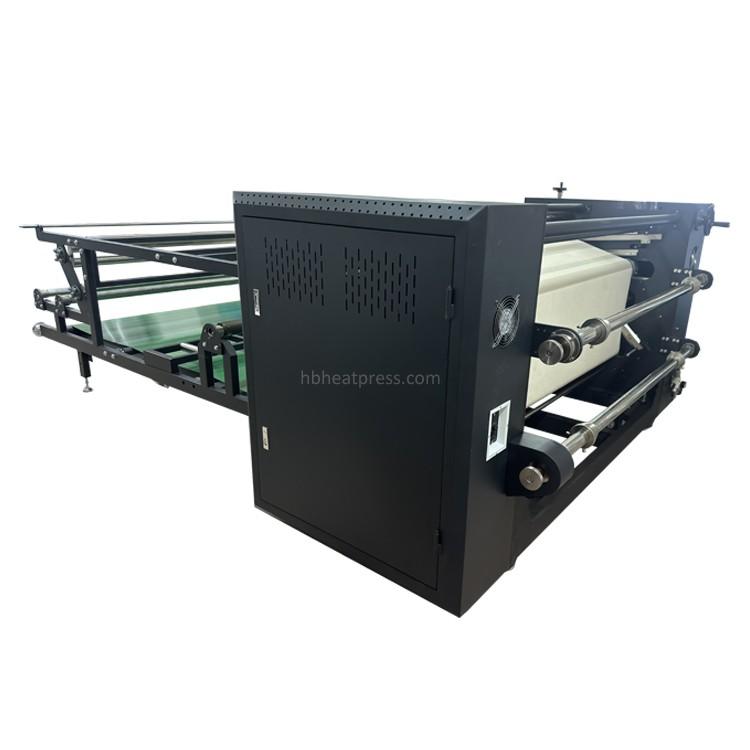

Cylinder heat transfer printing machine

Roller width: 170cm (other drum widths are available)
Printing width: 155cm
Drum diameter: 42cm
Heating method: Oil heating
Table length: 2m, 3m, etc.

Product Description:

Features

The drum width of this cylinder heat transfer printing machine is 1.7 m, the transfer printing width is 1.55 m, and the matching dye-sublimation printer width is 1.6 m. Its transfer speed is 80 to 100 meters per hour in a straight line. If it is an ordinary dual-head printer, it needs about 3 printers to match it.



.The operation is simple, press the "blanket enter"  button, the blanket will automatically enter the position and stop, then you can press the "start" button, and then adjust the speed and temperature. If there is an operation error, you can use the "drum forward / reverse"  switch on the panel, or press the "stop" button. (the blanket will be automatically removed immediately after pressing the emergency stop).


When blanket goes to a side, after a few seconds, the motor will start to rotate forward or reverse and then move the shaft upwards or downwards to get the blanket automatically moved to the center.


Independent motors blanket moving and paper take-up are made for the stable running of the calender.


It not only has a spare fuse, but also a spare thermocouple installed on the machine.


All bearings of the calendar heat press are coated with high temperature resistant high quality lubricating oil before delivery. However, in order to ensure the bearing life of the machine, the user needs to add lubricating oil to the machine regularly according to the frequency of use of the machine.


In order to improve the operator's transfer efficiency and save cloth or protective paper, the machine is designed with two sublimation paper rollers. So that the operator can install another roll of sublimation paper during the transfer process of the machine. When the roll in use has been transferred, another roll can be used immediately.


Technical parameters


No

Item

Data

1

Drum type

Durable chrome-plated   double-layer

2

Drum diameter

420mm

3

Drum width

1700mm (other drum widths   are available)

4

Temperature range

0-260℃

5

Control

Button control

6

Main motor power

0.75KW

7

Other motors power

0.15KW and 0.18KW, etc.

8

Preheating power for 380V 3   phase

25KW

9

Amperage for 380V 3 phase

38A

10

Preheating power for 220V 3   phase

22KW

11

Amperage for 220V 3 phase

58A

12

Automatic pneumatic   pressure

Yes

13

Automatic blanket alignment

Yes

14

Adjustable blanket length

Yes

15

Automatic blanket moving

Yes

16

Number of air shaft

2

17

Working way

Roll to roll, roll to   pieces, pieces to pieces

18

Packing dimension

270x150x158cm

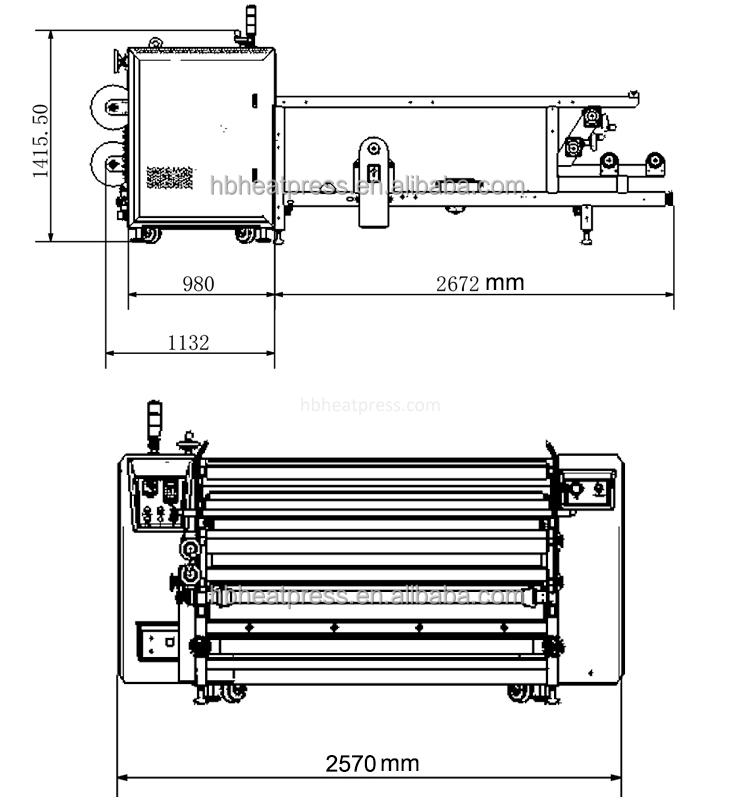

Calandra dimension


 Working flow

cylinder heat press.jpg
