Roller width: 1200mm (available in other widths) Roller diameter: 210mm Heating method: Oil heating Roller type: Chrome-plated Voltage: 220V 1 phase, 220V 3 phase and 380V 3 phase
US$4800-US$5500
Features

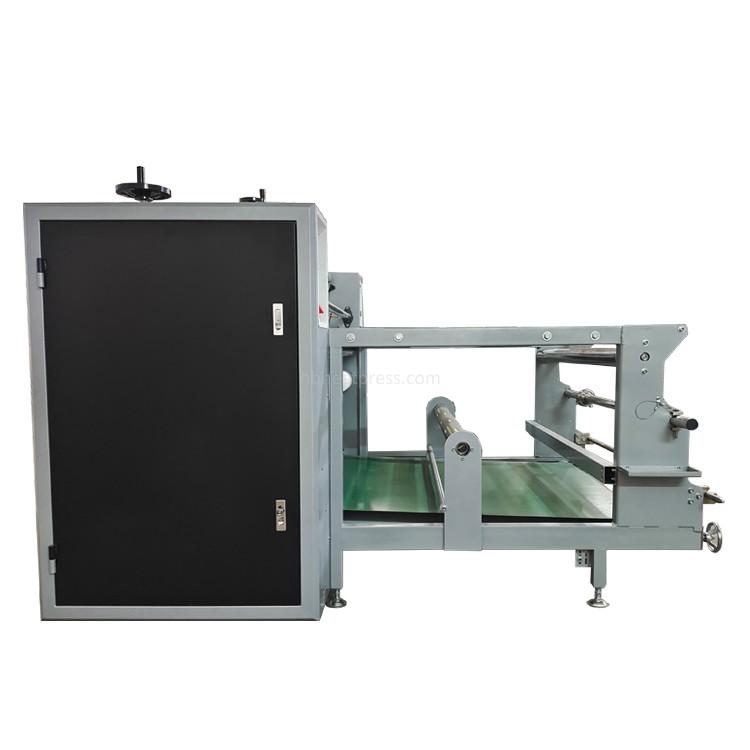

Although it is a small sublimation press calendar, our standards are the same as those for larger diameters. To assure its endurance, we only employ premium components. Customers who wish to launch a sublimation business should definitely consider it.
Most clients are satisfied with the table's length of 1 meters, which is standard for this equipment. The printed substrates can be transported along the table's conveyor belt.
The 1200 mm drum width can accommodate the 1050 mm printing width. If the printing width is larger, other drum widths are conceivable.

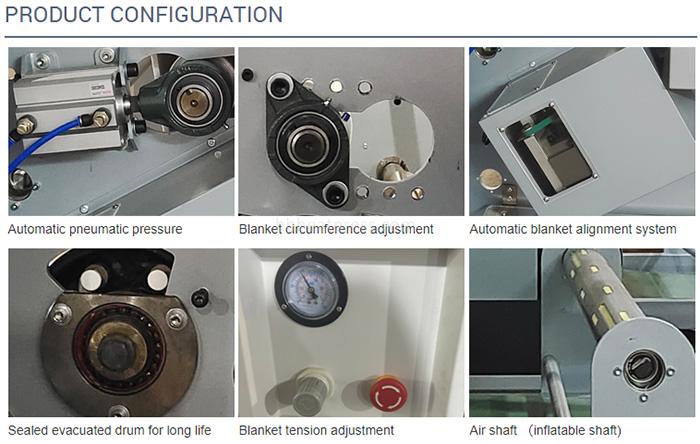

After the oil has been refined, the air inside the drum is drained before it is sealed, preventing the oil from coming into touch with the air and extending the oil's lifespan.
Utilizing an air shaft, the gadget collects used sublimation paper. After air has been charged, used paper can be collected. When the used paper roll gets too big to fit inside the machine, just press the button on the air shaft to release air and remove the paper.
When the machine has been running for long time and the blanket gets loose from stretching, the two bearings that link to the roll can be shifted to the next position.
If fabric is like nylon or something thin, the "forcing" button can be hit to get more pressure.
Two small pallets on left side and right of the calendar is for putting tools.
Inverter panel is installed on the control panel together with the temperature controller and other buttons for easily setting speed of the drum.
Blanket tension can be set at the right side of the calandra.
Technical parameters
Item | Data |
Control panel | Digital button control |
Drum diameter | 215mm |
Drum width | 1200mm (other drum widths are available) |
Temperature range | 0-260℃ |
Pressure range | 0-8kg |
Total Power | 8KW |
Main motor power | 0.4KW |
Heat transfer power | 5.6KW |
Automatic shutdown | Yes |
Automatic blanket alignment | Yes |
Adjustable blanket length | Yes |
Safety design | Yes |
Heating type | Thermal oil heating |
Voltage | 220V 1 phase/220V 3 phase/380V 3 phase |
Number of air shaft | 1 |
Working way | Roll to roll, roll to pieces, pieces to pieces |
Packing dimension | 205x101x156cm |

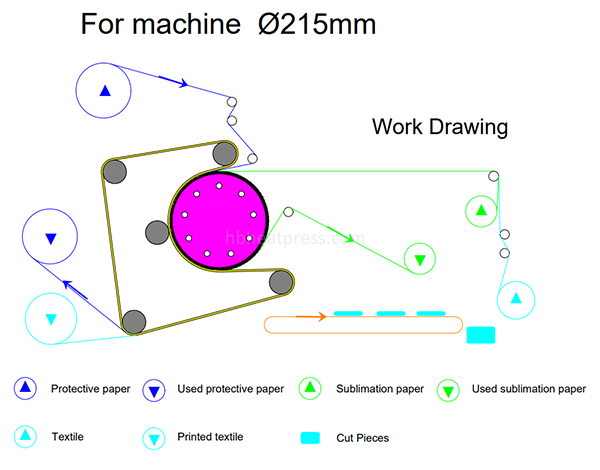

Working flow

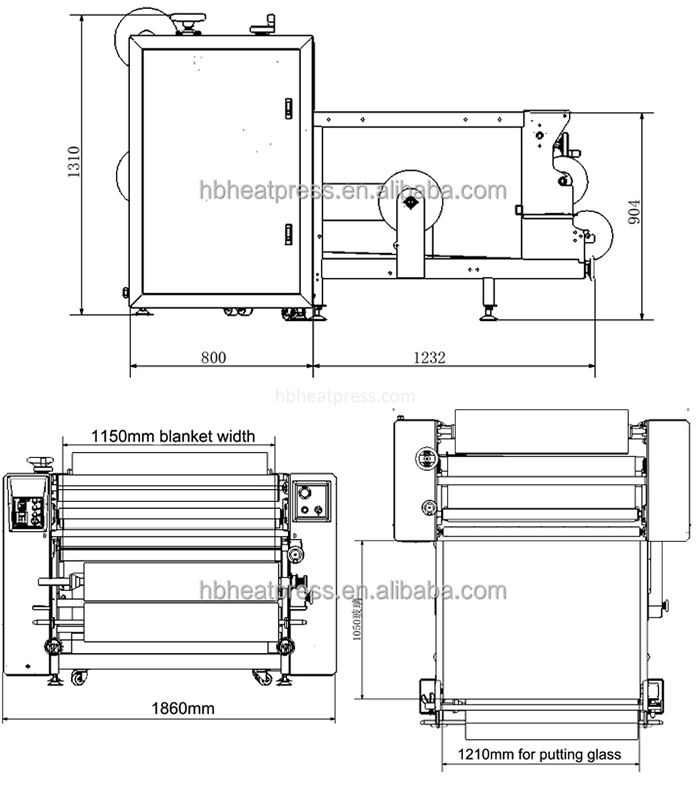

Sublimation press calender dimension
FAQ
Q1: Is it oil heated?
A1: Yes, it is oil heated.
Q2: Which drum width is suitable for me?
A2: If the printing width is 1050 mm, you can choose the 1200 mm drum width.
Q3: How many meters per hour it can transfer?
A3: Sublimation speed is 35 to 50 meters per hour.
Q4: Why do I need the automatic pneumatic pressure function?
A4: It is perfect for thin fabric especially those are less than 100 grams. And with the pneumatic pressure, you can sublimate with higher speed.
Q5: What is air shaft?
A5: Air shaft means it will be inflatable after you charge air for it. Use the air expansion to secure down paper tube instead of screws.
