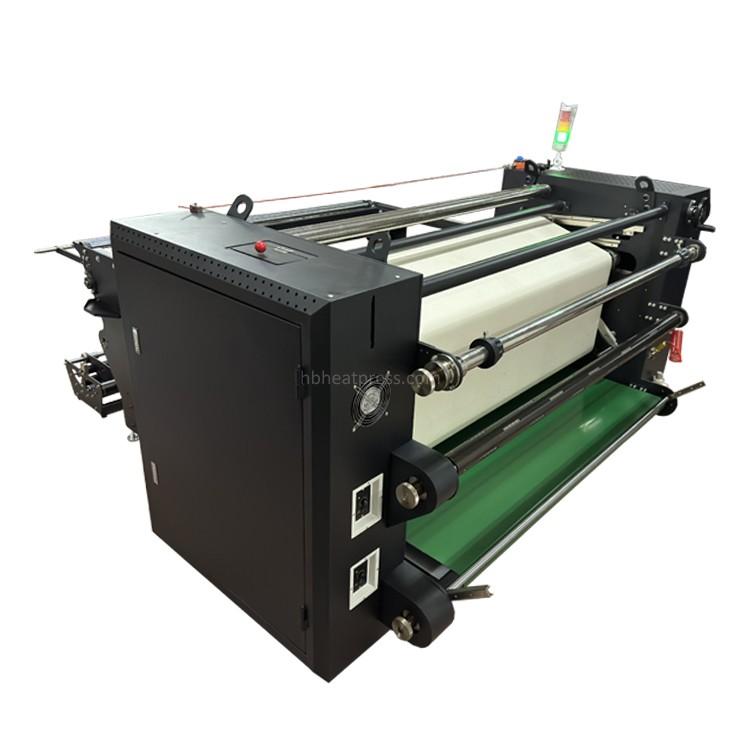

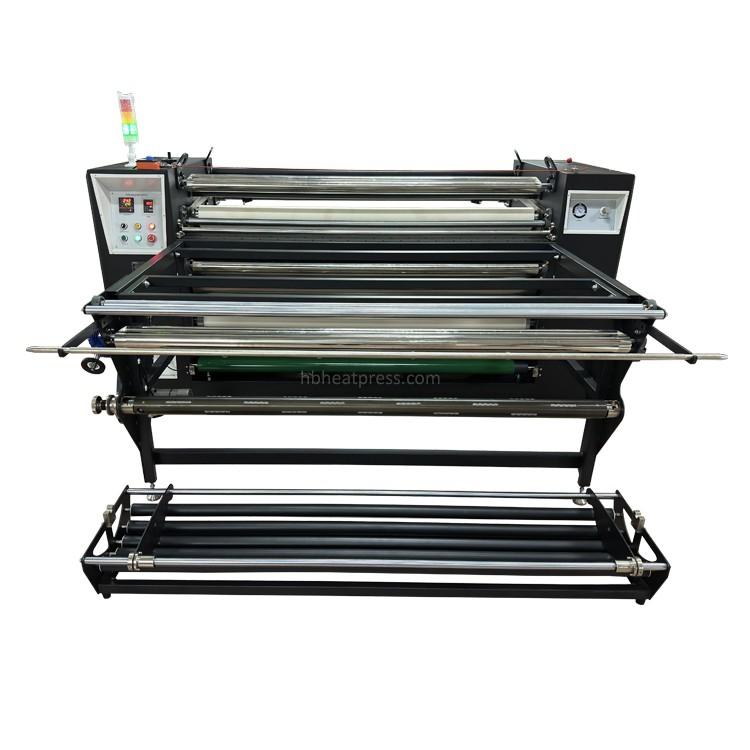

Textile sublimation calender 1800mm

Drum type: double-layer chrome-plated
Heating type: oil heating
Temperature range: 0-260℃
Drum speed: Adjustable
Voltage: 220V 3 phase, 380V 3 phase

Product Description:

Features

The purpose of designing this textile sublimation calender is to save space. The cutting piece is transferred to the back of the machine instead of the front of the workbench. In addition, the total length of the workbench is only 1.118m. If you include the textile basket placed on the ground, it is only 1.46m.


Compact design: The total length of the conventional calander  sublimation (including the main machine and workbench) is 3.94m, while the total length of this machine is 2.25m.

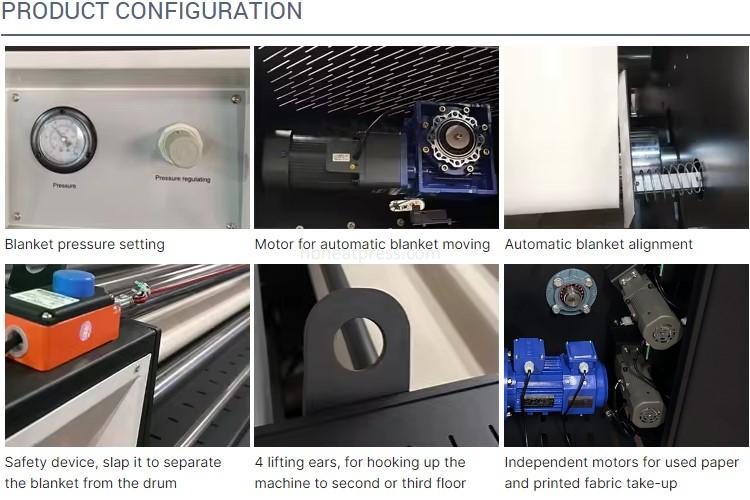

Safety design: Pull-cord switch and stop button, and circuit breaker. Pull cord switch and stop button allows the operator to get the blanket separated from the drum when there is emergency. Circuit breaker makes sure the machine will trip if there is leakage or overload.


Multiple choice: If fabric roll doesn't have a paper tube, the machine can come with a textile basket. If operator needs quicker changing the papers, it can come with more air shafts. If paper tube diameter is not 3 inches, the air shaft or the ordinary shaft can be made for 2 inches diameter paper tube.


Easy rewinding: Printed fabric can be taken up by the rod at the back side of the calander.


Easy operation: Fabric rod can be removed when the machine is used for roll paper to cut pieces and operator can stand in front of the machine to put cut pieces.


Simple monitoring: The voltmeter under the control panel allows you to see the voltage and power consumption.


Technical parameters

No
Item
Data
1
Drum type
Durable chrome-plated double-layer
2
Drum diameter
420mm
3
Drum width
1.8 m (other drum widths are available)
4
Printing width
1.65m
5
Control Temperature range
0-260℃
6
Main motor power
0.75KW
7
Other motors power
0.15KW and 0.18KW, etc.
8
Preheating power for 380V 3 phase
25KW
9
Amperage for 380V 3 phase
38A
10
Preheating power for 220V 3 phase
22KW
11
Amperage for 220V 3 phase
58A
12
Automatic pneumatic pressure
Yes
13
Automatic blanket alignment
Yes
14
Adjustable blanket length
Yes
15
Automatic blanket moving
Yes
16
Take-up rod for printed fabric
Yes
17
Fume exhaust system
Optional
18
Textile basket
Optional
19
Number of air shaft
2
20
Working way
Roll to roll, roll to pieces, pieces to pieces
21
Packing dimension
283x153x164cm
22
Volume
7.101 CBM


sublimation calender.jpeg

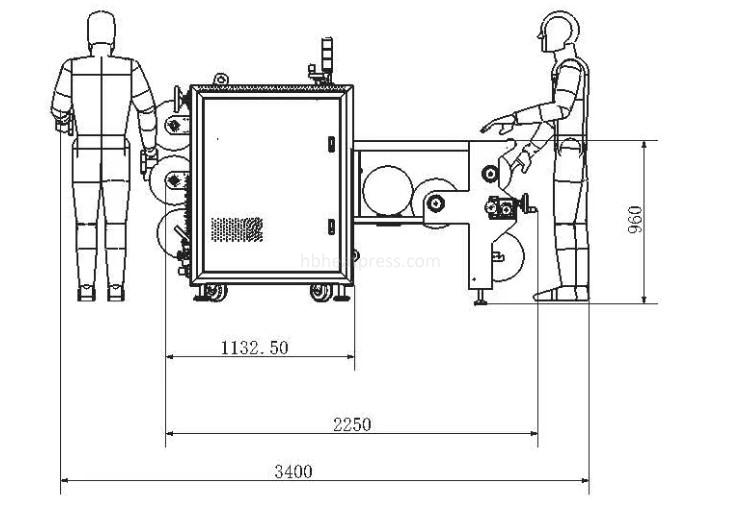

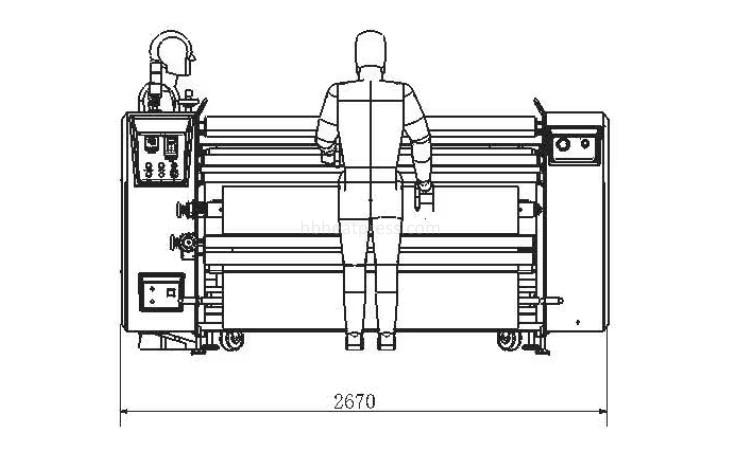

Calender dimension

calender for sublimation.jpeg

calender for sublimation (2).jpeg

Calander sublimation package

calendar roll to roll.jpg


FAQ:

Q1: Which drum width should I choose?

A1: If the printing width is 1,6 m, you can choose the 1,8 m drum width.


Q2: How many meters per hour it can transfer?

A2: Sublimation speed is 80 to 100 meters per hour.


Q3: Which type of drum do you use?

A3: We use the chrome-plated drum. It is more durable, anti-stretching, etc.


Q4: What is air shaft?

A4: Air shaft means it will be inflatable after you charge air for it. Use the air expansion to secure down paper tube instead of screws.
