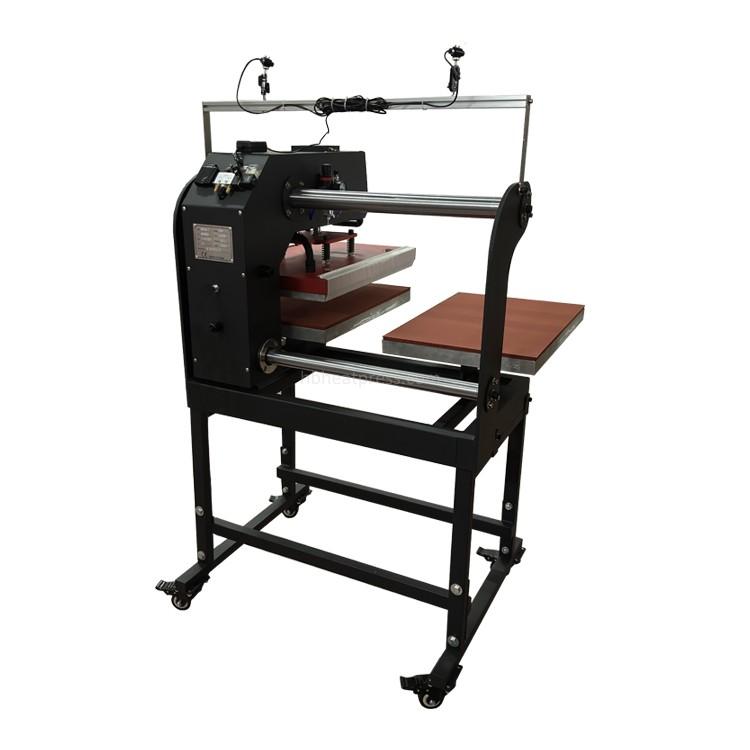

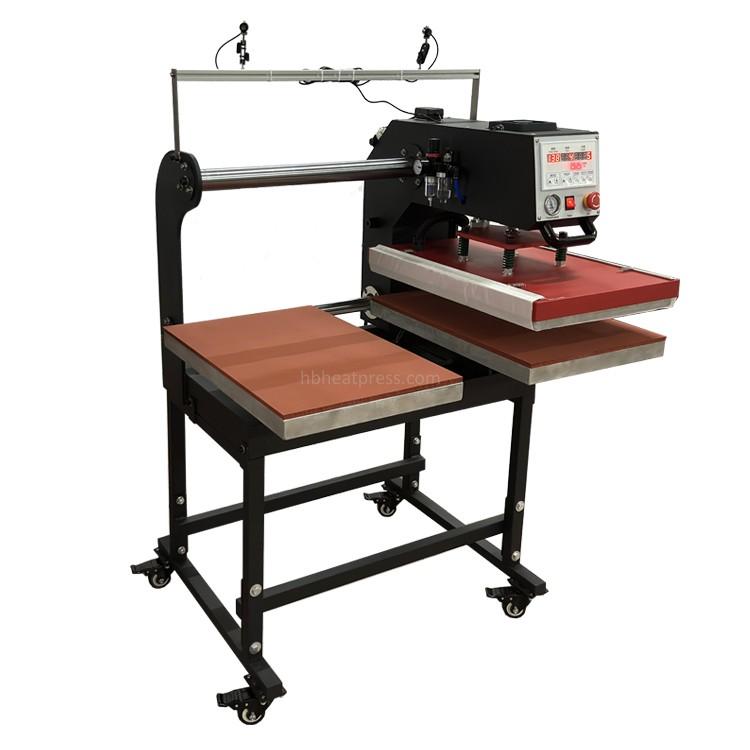

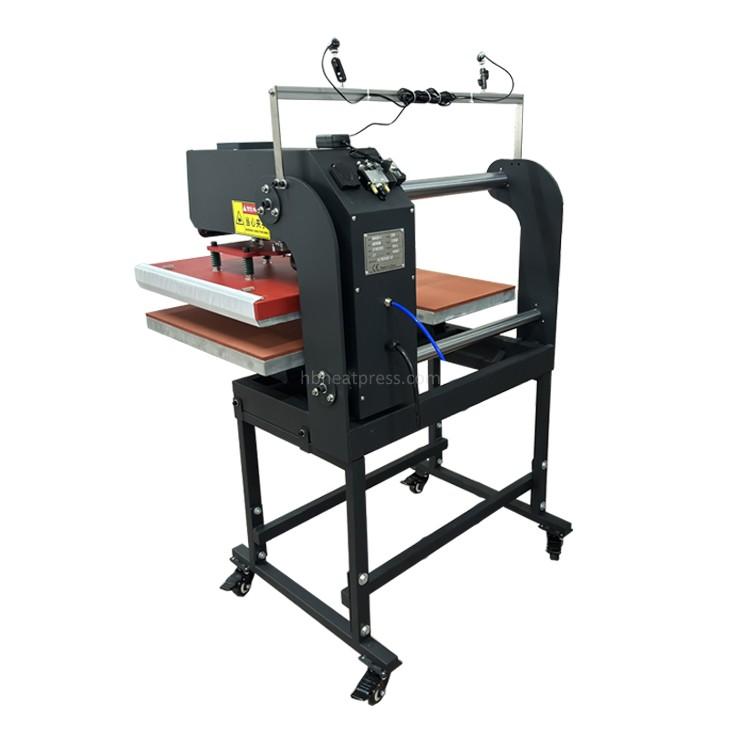

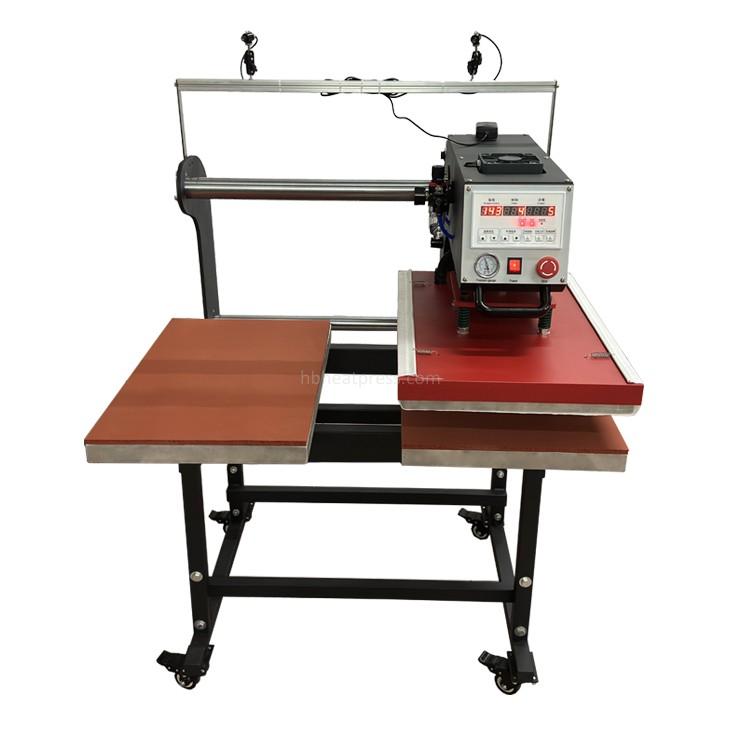

Heat transfer machine for shirts

Heating plate size: 40x50cm ( 16x20 inches) and 40x60cm( 16x24 inches)
Temperature range: 0-300℃
Timer control: 0-999 seconds.
With counting jobs function

USD650-USD730

Product Description:

Features

Compared with the fully automatic heat press, this semi-automatic heat transfer machine spends less money. The ultimate outcome is exactly the same. To activate the limited switch and descend the heating plate, manually slide the head till to the end. The heated plate will then move back when the timer reaches zero.

This pneumatic heat press is available in two voltage options: 220V and 120V. Plug can be matched to your country's socket type.

The machine contains a count display, temperature and time adjustments, and an integrated control panel. It is feasible to reset the count to zero.

For faster and easier garment placement, each heat press station contains one set of infrared alignment. There is a plug connecting them. Simply put the plug into the machine's socket whenever the infrared alignments need to be on.

The frame is equipped with 4 casters, which allows users to move it at any time if they want to change the position of the machine.

In order to ensure the durability of the machine, both the base plate and the heating plate are made of thickened aluminum plates.

The pneumatic system includes cylinders, solenoid valves, air filters, and other important components. To guarantee that the heating plate of the machine pushes down and rises and that the machine moves steadily, all of them are of the highest quality.

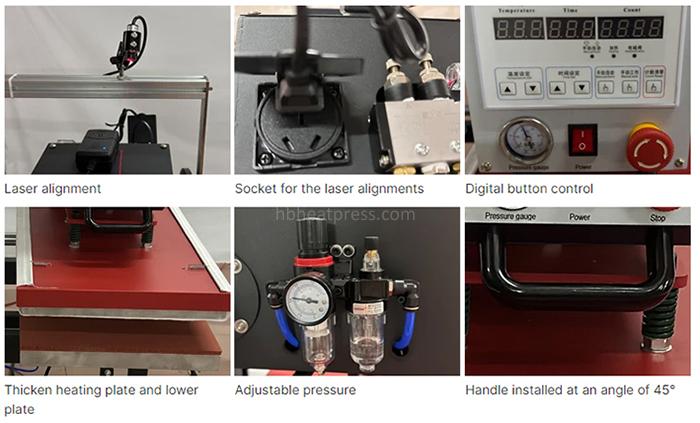

heat press details.jpg

Technical parameters

Model	HB4060-2
Size	60x40cm( 24"x16")
Timer control	0-999seconds
Temp. range	0-300℃
Machine type	Semi-automatic Pneumatic
Air compressor	Needed
Voltage	220V	120V
Power	3.5KW	2.5KW
Amperage	16A	21A
Plug	Germany plug, UK plug, American plug, etc.
Net weight	145KG
Gross weight	175KG
Packing dimension	110x105x85cm
