Working method: Roll to roll sublimation printing Drum width: 1.8m (other sizes are available) Drum diameter: 420mm Voltage: 220V 3 phase, 380V 3 phase
Features

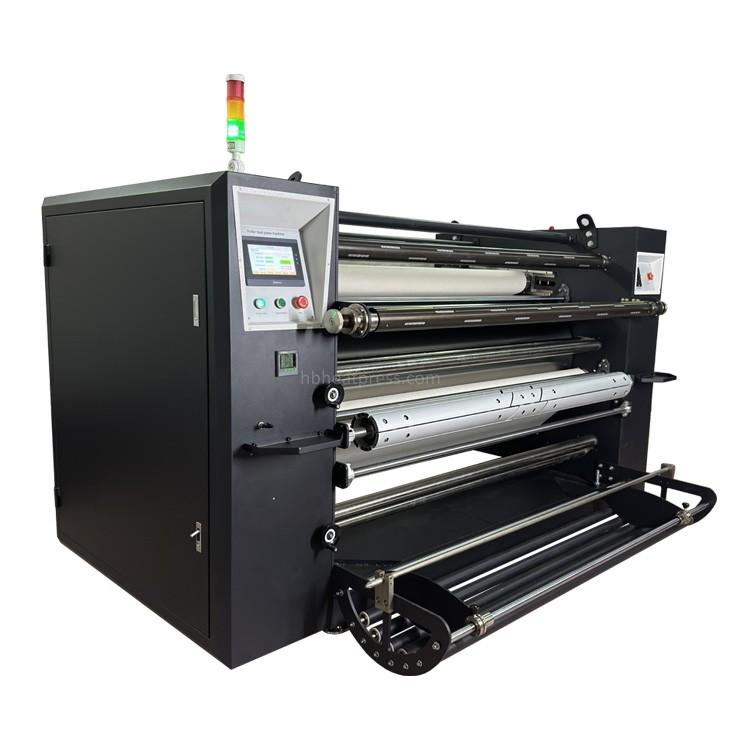

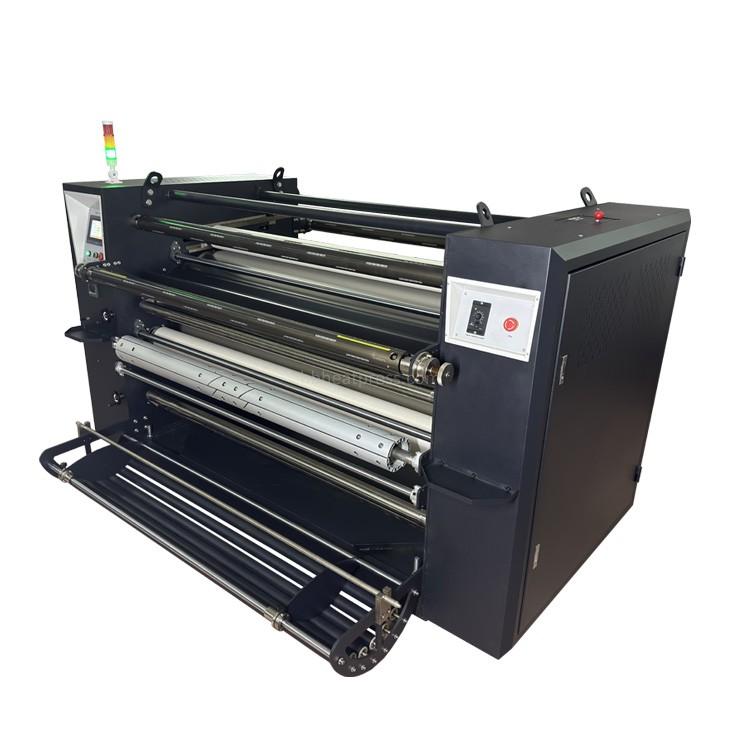

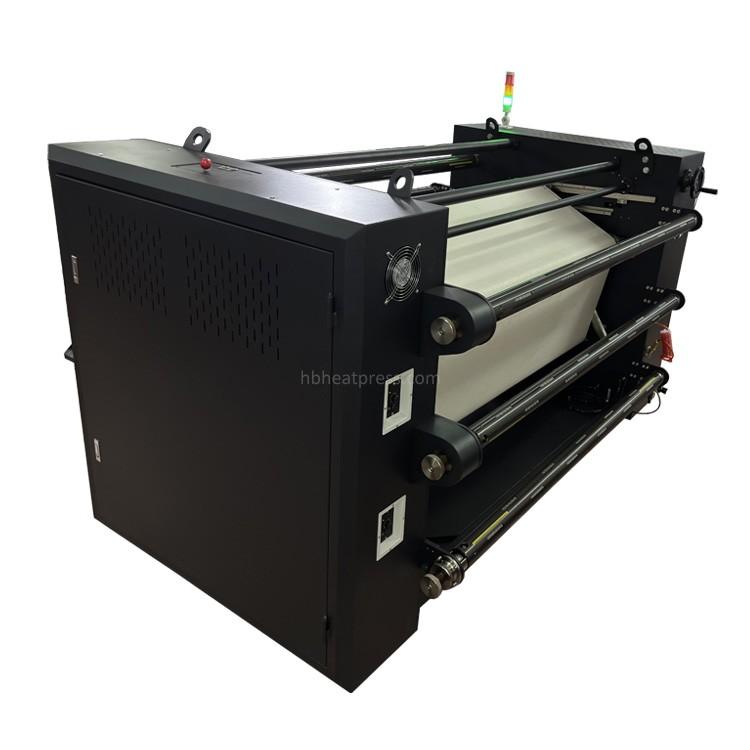

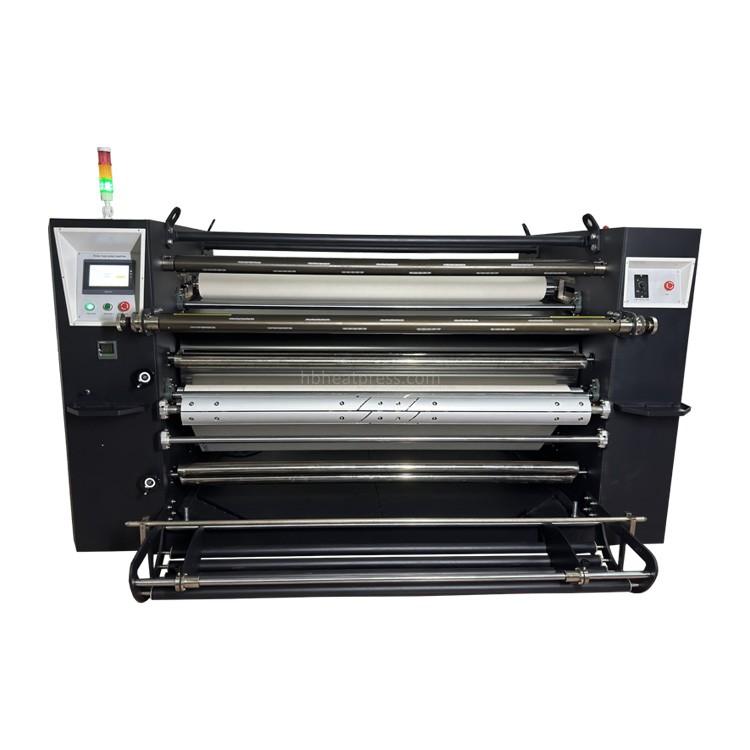

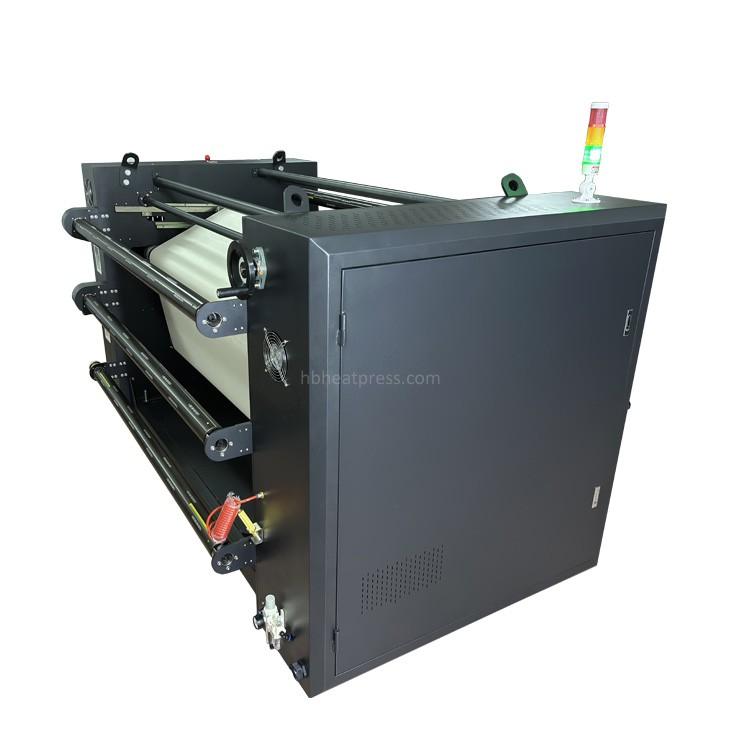

This roll textile heat press without a table is ideal for roll paper to roll fabric sublimation printing, especially perfect for polyester with spandex. It can keep from fabric stretching before feeding in.
A mobile phone can be used to control and run the sophisticated roll heat transfer machine by connecting it to the wifi of a computer or mobile phone.
Using an opening roll is to flatten and open fabric before feeding into the calendar and can make sure the sublimation printing result is good.

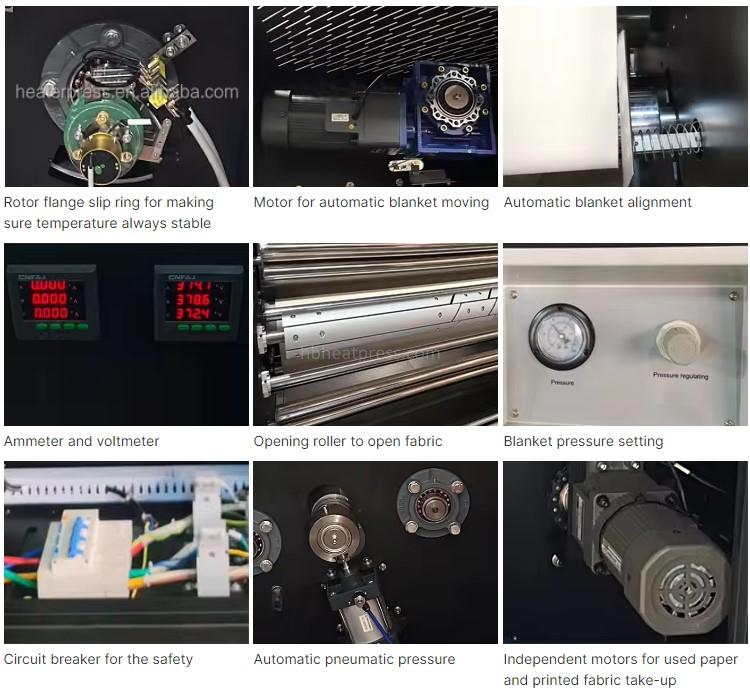

The rotor flange metal slip ring which is connected to the copper ring can solve the temperature fluctuation problem. So you don't need to often replace carbon brushes in the future.
1.5KW big main motor is installed for this 420mm calendar heat press rather than 0.75KW, which is noise free and power is strong enough for making sure the stable running.
The used papers take-up and printed fabric take-up have their independent motors.
The button "blanket feed in" can be pushed to get the blanket moved forward. The button "stop" can be hitted to get the blanket moved backward.
Technical parameters
No | Item | Data |
1 | Total Power | 22KW (220V 3 phase) |
2 | Total power | 25KW (380V 3 phase) |
3 | Drum width | 1800mm (other drum widths are available) |
4 | Drum diameter | 420mm (600mm and 800mm are available) |
5 | Speed | Adjustable |
6 | Temperature range | 0-260℃ |
7 | Touchscreen control | Yes (Ordinary control is available also) |
8 | Language | English and Espanol |
9 | Automatic shutdown | Yes |
10 | Automatic blanket alignment | Yes |
11 | Adjustable blanket length | Yes |
12 | With textile basket | Yes |
13 | With opening roll | Yes |
14 | Heating type | Thermal oil heating |
15 | Number of air shaft | 5 |
16 | Working way | Roll to roll |
17 | Packing dimension | 281x171x167cm |

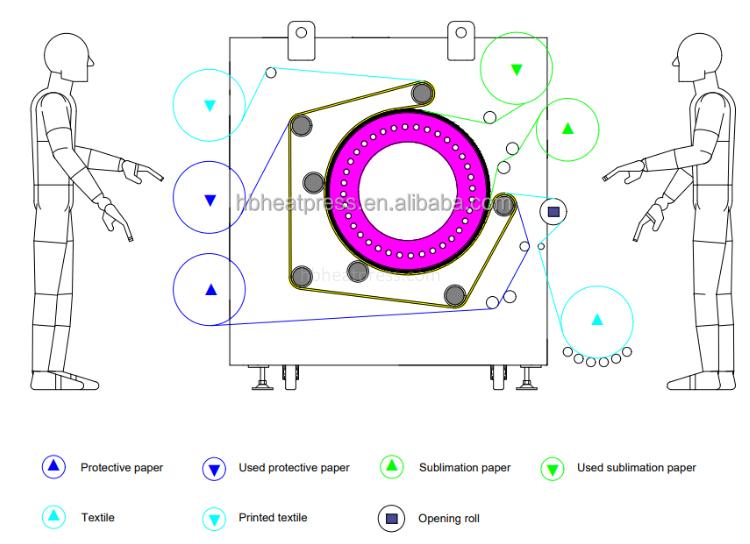

Working flow
Calendar heat press package
Quality control for roll heat press
How to choose a suitable calander sublimation
How to maintain the roll heat press
