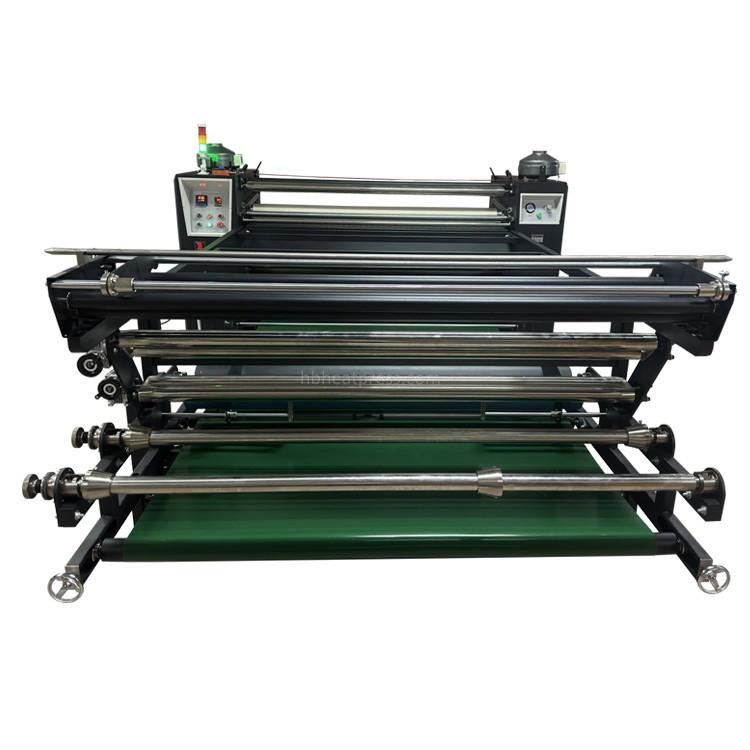

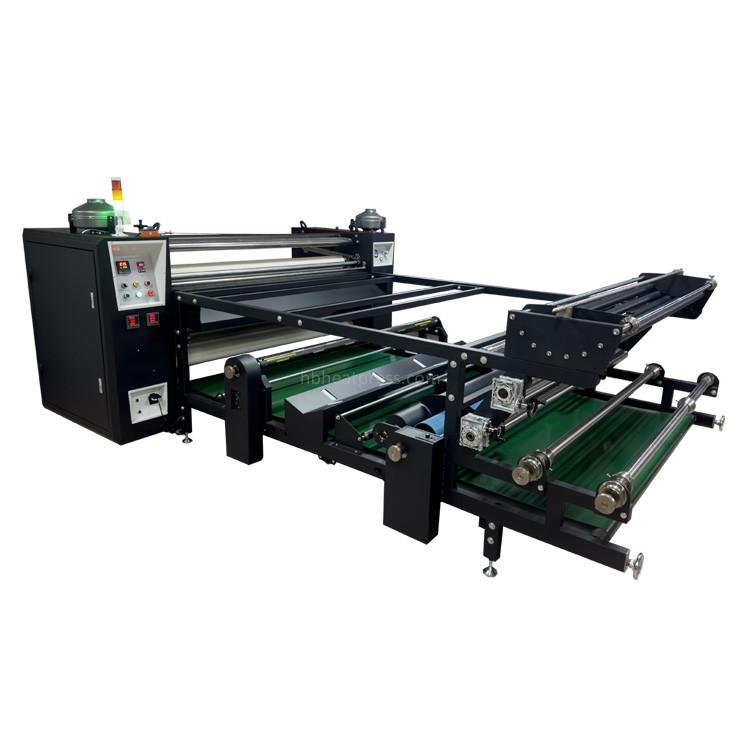

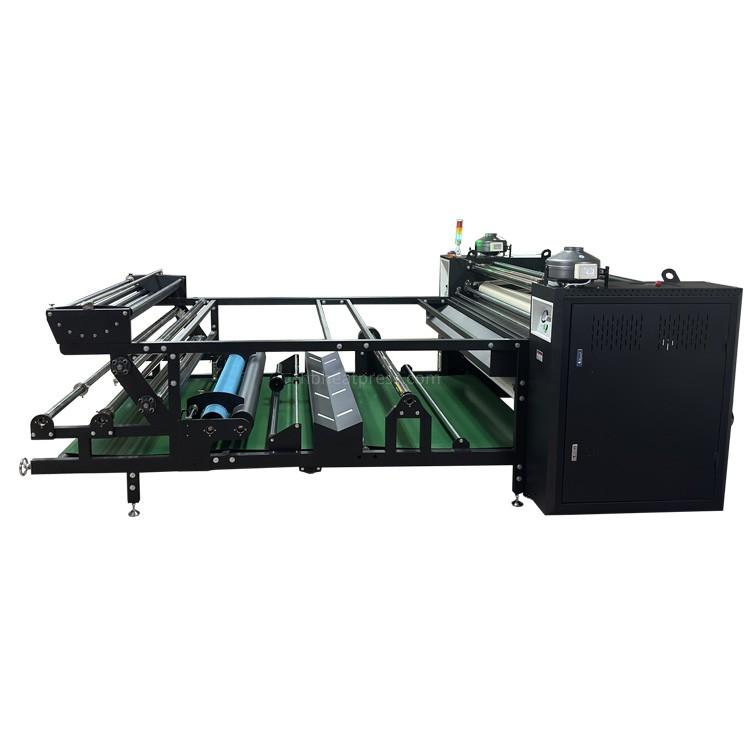

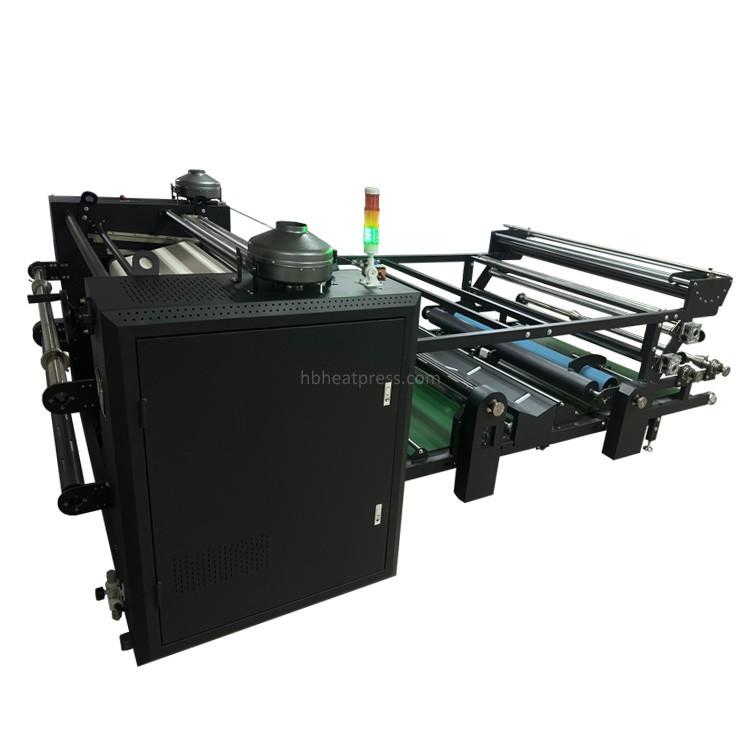

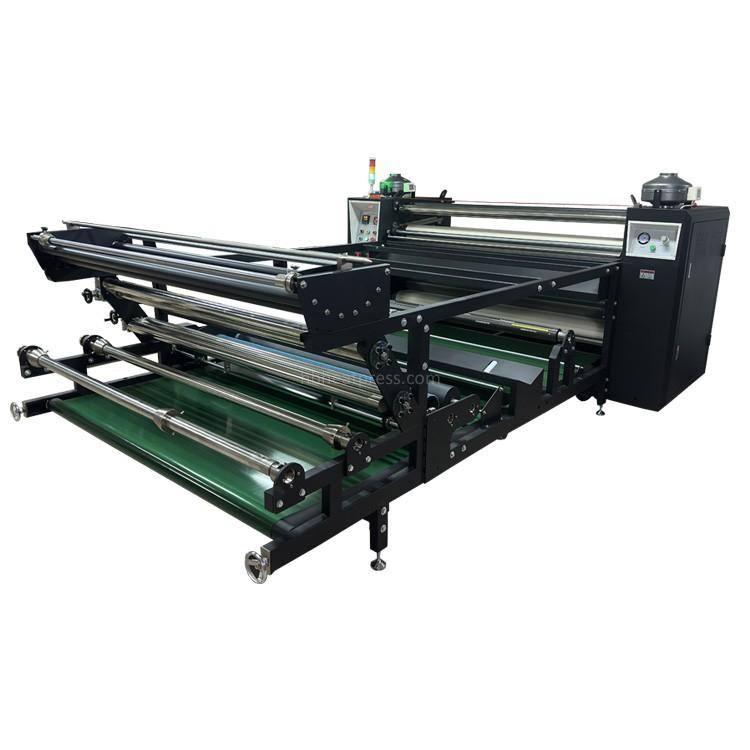

Roll to roll heat transfer printing machine

Roll to roll heat transfer printing machine

Drum type: double-layer chrome-plated
Heating type: oil heating
Temperature range: 0-260℃
Drum speed: Adjustable
Voltage: 220V 3 phase, 380V 3 phase

Product Description:

Features

Why is the price of this roll to roll heat transfer printing machine so high? Because it has complete functions, including automatic blanket feeding and automatic blanket separation, automatic blanket deflection correction, automatic pneumatic pressurization, smoke exhaust system, drum forward and reverse rotation, winding system,textile basket, etc. We can increase or decrease the functions according to your actual needs.

When you find that the fabric is not fed well, then you can press the button " drum forward and reverse" , and the fabric will be ejected and re-entered.

There is a mounting device connected to the top of the left and right sides of the machine, no matter the operator on the left or the right encounters any emergency, he can tap the red rope, so that the blanket will be separated from the drum immediately.

If the machine needs to be placed on the second or third floor, the machine can be hoisted to the floor you need to place through the four lifting lugs of the machine.

Optional functions include: Fabric rewinding device with meter counter, smoke exhaust device, textile basket, etc.

With the textile basket, user doesn't need to worry about the trouble and waste of time to get fabric through the metal rod caused by the deformation of the paper tube.

The V-shaped waste paper support rack is to better help the operator pull the waste paper away from the air-expanding shaft.

The advantage of automatic blanket feeding and separating is that it saves time and effort.

There are two rolls for sublimation paper, one of which is spare. When transferring one roll, the other roll can be ready. Our original intention in designing these roll heat transfer machines is to help customers save time and costs during use.

Calendar machines roll sublimation (1).jpg

Technical parameters

No	Item	Data
1	Drum type	Durable chrome-plated double-layer
2	Drum diameter	420mm
3	Drum width	1.7 m (other drum widths are available)
4	Temperature range	0-260℃
5	Control	Button control
6	Main motor power	0.75KW
7	Other motors power	0.15KW and 0.18KW, etc.
8	Preheating power for 380V 3 phase	25KW
9	Amperage for 380V 3 phase	38A
10	Preheating power for 220V 3 phase	22KW
11	Amperage for 220V 3 phase	58A
12	Automatic pneumatic pressure	Yes
13	Automatic blanket alignment	Yes
14	Adjustable blanket length	Yes
15	Automatic blanket moving	Yes
16	Take-up system for printed textile	Optional
17	Fume exhaust system	Optional
18	Textile basket	Optional
19	Number of air shaft	2
20	Working way	Roll to roll, roll to pieces, pieces to pieces
21	Packing dimension	270x150x173cm
22	Volume	7.015 CBM
