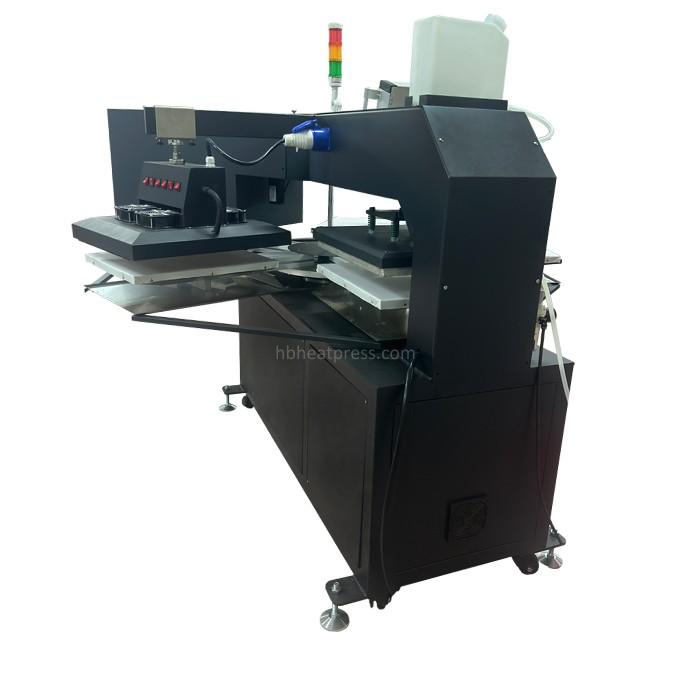

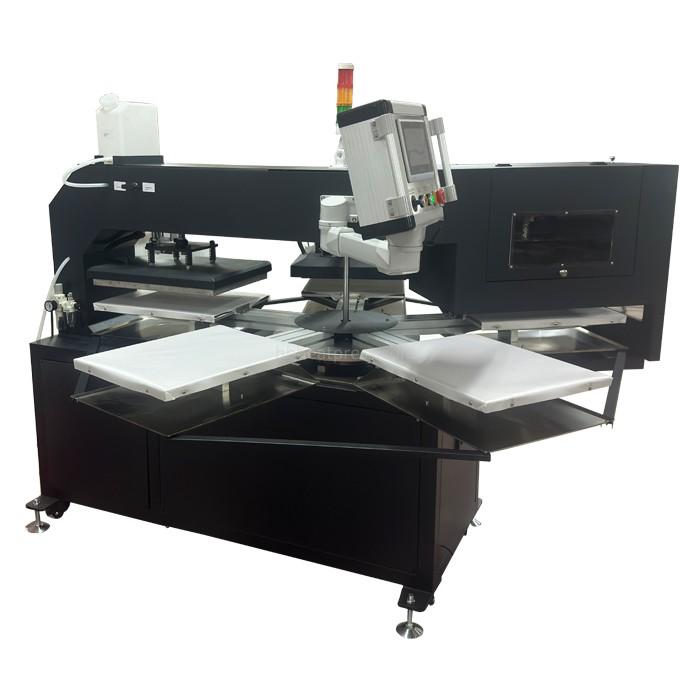

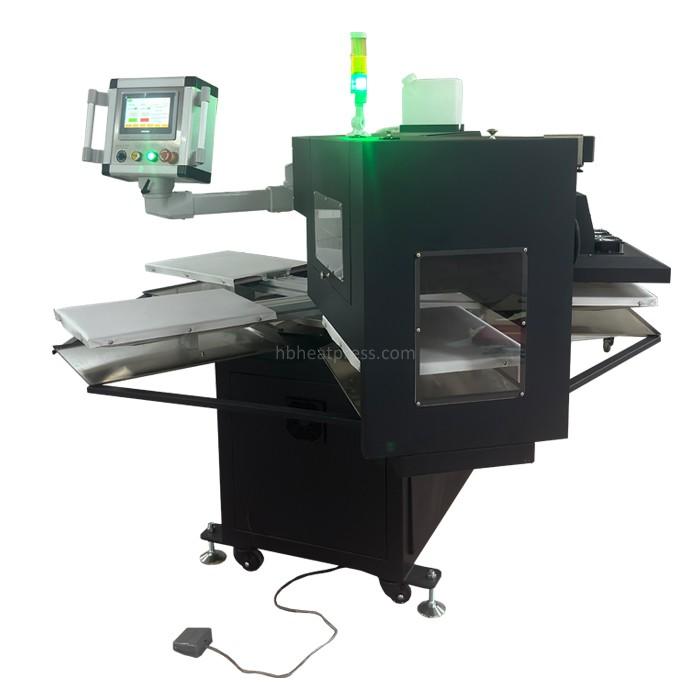

Pretreatment machine for digital printing

Features

Although its price is not low, it combines three machines: pretreatment machine, dryer and heat press machine. The garments are put on the bottom plate, sprayed, dried, and then heat pressed. There is no need to smooth the surface of the clothes before printing. When spraying or drying is not required, just disable these two items and it can become a heat press.

It has 5 stations, loading, spraying, drying, heat pressing and unloading. Whether it is spraying, drying or heat pressing, it can be controlled individually.

It has the function of delaying the opening of the spray pump and spray valve to ensure uniform spraying. The spray flow rate can be adjusted. The spray length can be set according to needs. The count is displayed on the touch screen.

When you need to switch the working mode, you need to press Stop on the touch screen first. After all stations have rotated from 1 to 5, the machine will stop. At this time, you can switch to automatic or foot pedal mode.

If you need faster drying, you can turn on all the heating elements.

The spray position is covered by a box to ensure that the treatment liquid will not spray to places outside the machine. The side and top covers can be opened for easy cleaning.

It is pneumatic system. So air compressor is needed.

Easy assembly. There are numbers from 1-5 for the lower plates and for the mainframe.

Technical parameters

FAQ:

Q1: Is it pneumatic or electric?

A1: It is pneumatic.

Q2: Which air compressor do I need for it?

A2: You need the 1.1 KW power and 50L capacity air compressor.

Q3: Do I need to install the machine when I receive it?

A3: Yes, you need to install the turntable.

Q4: How many spray nozzle does it have?

A4: It has 1 spray nozzle.

Q5: How many units of this DTG pretreatment heat press machine can be loaded into a 20 ft container?

A5: 4 units.
