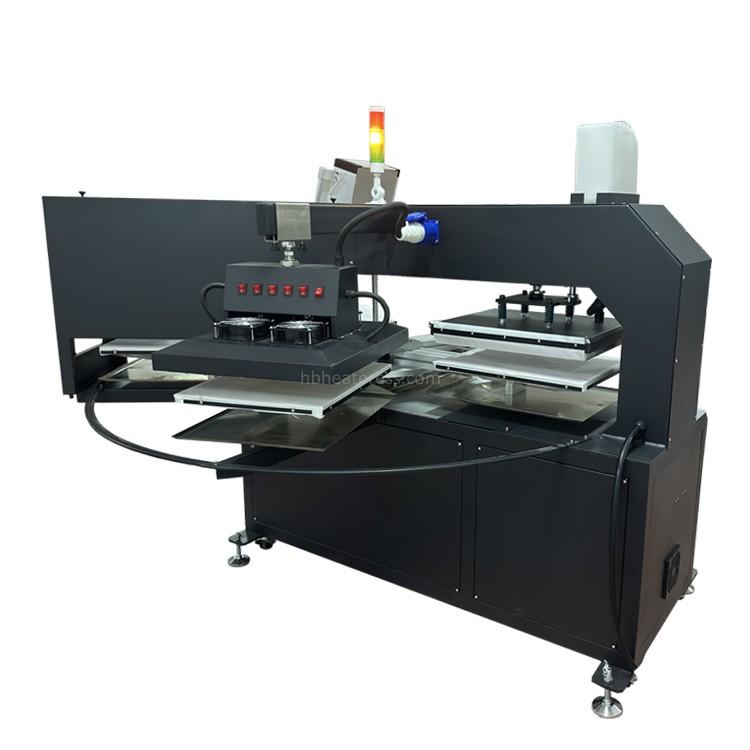

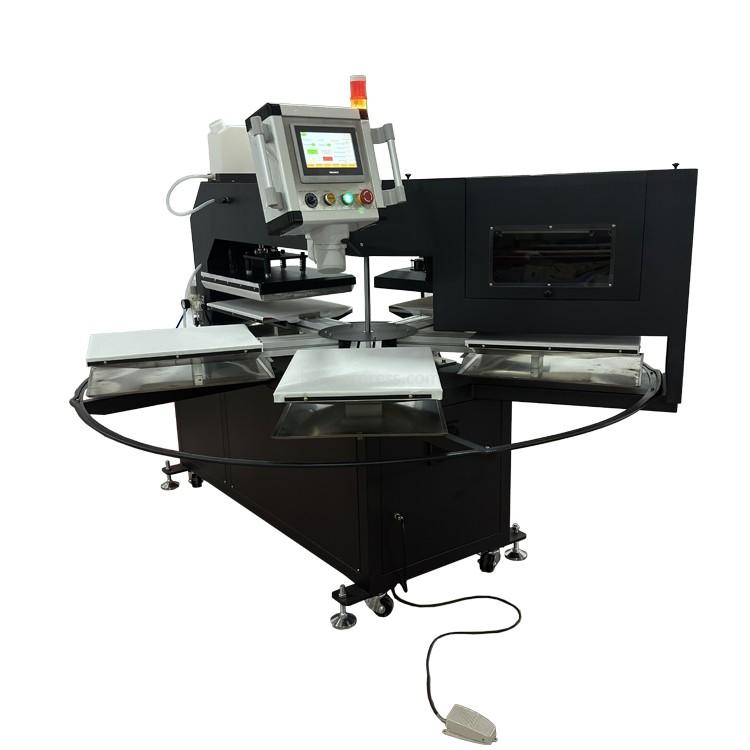

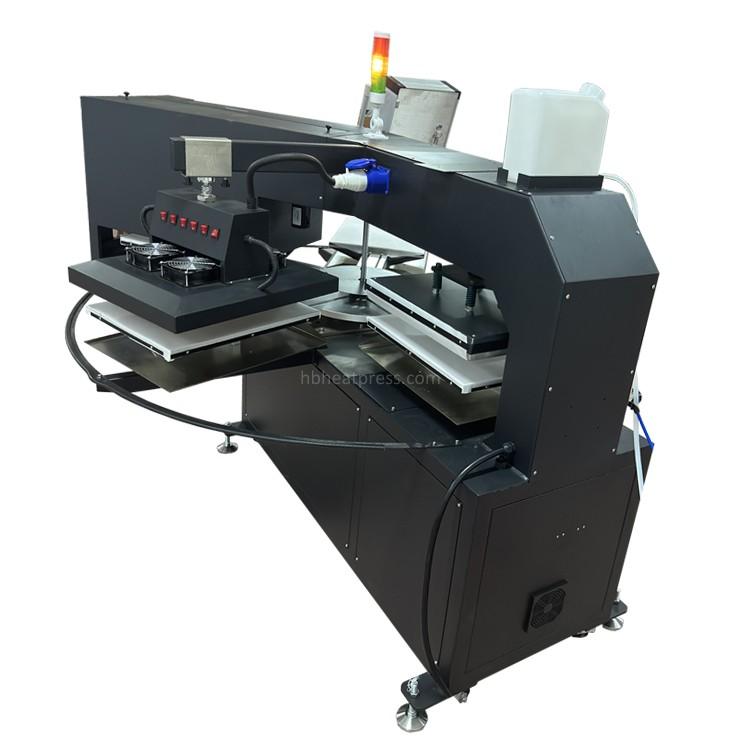

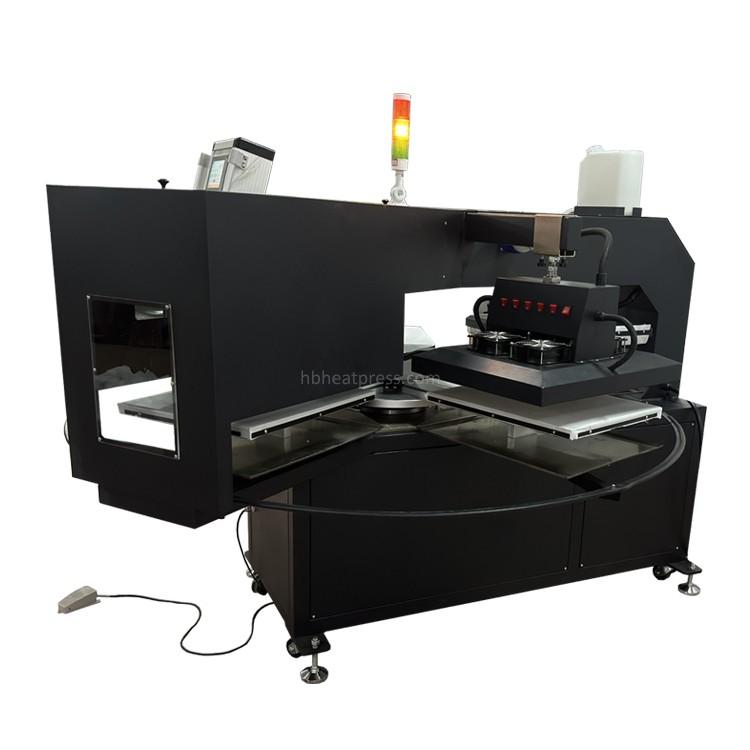

Direct to Garment Pretreat Machine

Features

Compared with ordinary separate pre-treatment liquid machines, dryers or heat presses, this machine integrates three machines. In this way, the spraying, drying and ironing of T-shirt pre-treatment liquid can be completed in one machine. It saves labor and improves work efficiency.

Whether it is spraying, drying or heat pressing, they can be controlled individually. So when you don't need one or both features, you can disable it.

The spray range can be adjusted, and the spray start position and spray end position are displayed on the touch screen.

The volume of the spray flow can be adjusted to suit light and dark T-shirts.

The flash dryer has 6 heating elements, which are controlled individually by 6 switches. When you spray a small area, you can choose to turn off one of the heating elements to save power.

If you need to dry the heating tube closer to the T-shirt, then you can adjust the distance between the dryer and the bottom
plate.

The heating plate and all bottom plates are wrapped with high-temperature anti-stick cloth and are easy to clean.

The spray station is covered by a box, and there is a plate under the base plate to collect the treatment liquid to prevent it from spraying onto the floor.

Technical parameters

FAQ:

Q1: Is the spray flow volume adjustable?

A1: Yes, it is.

Q2: Which air compressor do I need for it?

A2: You need the 1.1 KW power and 50L capacity air compressor.

Q3: Do I need to install the machine when I receive it?

A3: Yes, you need to install the turntable.

Q4: How many spray nozzle does it have?

A4: It has 1 spray nozzle.

Q5: How many units of this DTG pretreatment heat press machine can be loaded into a 20 ft container?

A5: 4 units.
