Product

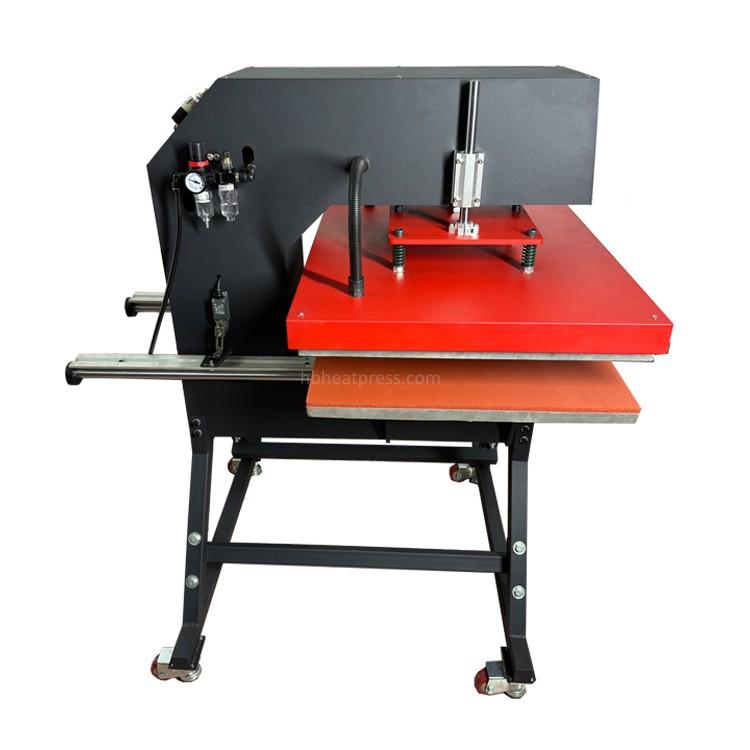

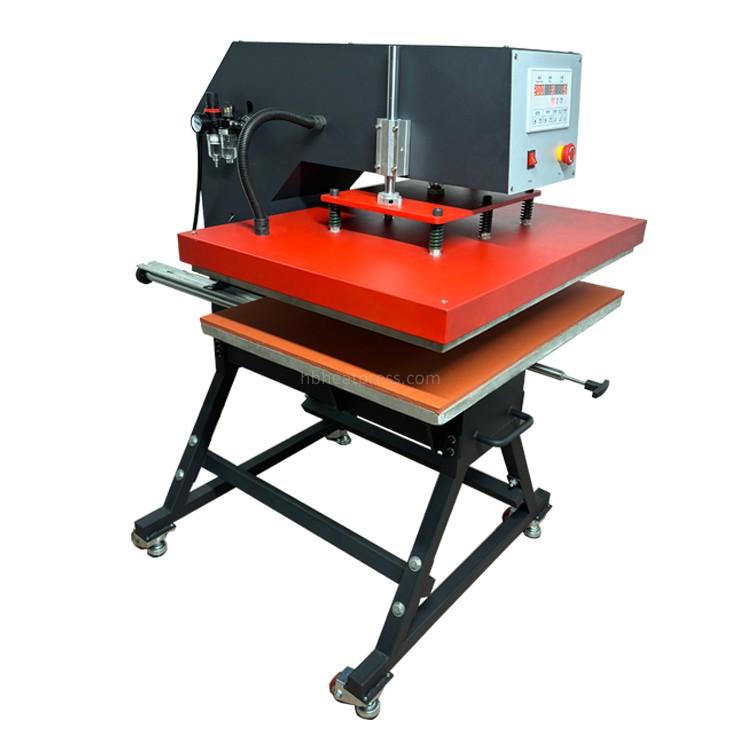

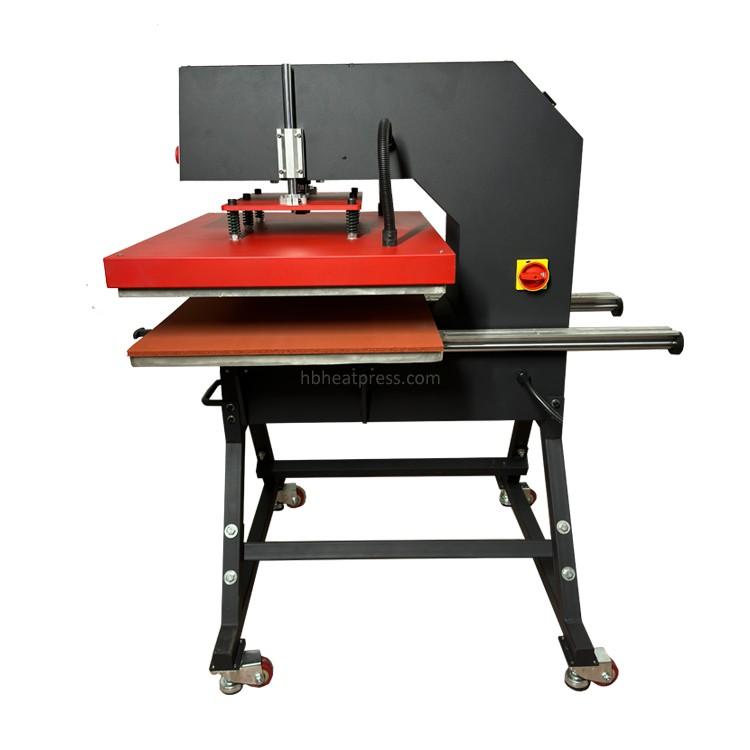

60x80cm heat press machine

Platen size: 60x80cm
Temperature range: 0-300℃
Timer control: 0-999seconds
Pressure: Adjustable
Machine type: Pneumatic
Voltage: 220V 1 phase, 220V 3 pase and 380V 3 phase

US$900-US$1000

Product Description:

Features

This single-station pneumatic heat press is mainly used for sublimation sportswear, canvas bags, or some large substrates, such as tents. It can individually transfer a small pattern to any position of the tent, because this The machine is open on three sides.  Since its heating plate is 60x80cm and the power is 6KW, it has three voltages to choose from: 220V single-phase, 220V 3-phase or 380V 3-phase.


This single-station pneumatic heat press is mainly used for sublimation sportswear, canvas bags, or some large substrates, such as tents. It can individually transfer a small pattern to any position of the tent, because this The machine is open on three sides.  Since its heating plate is 60x80cm and the power is 6KW, it has three voltages to choose from: 220V single-phase, 220V 3-phase or 380V 3-phase.

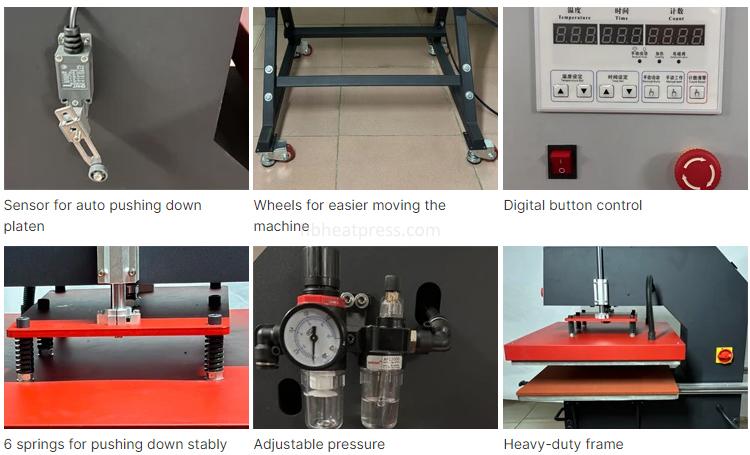

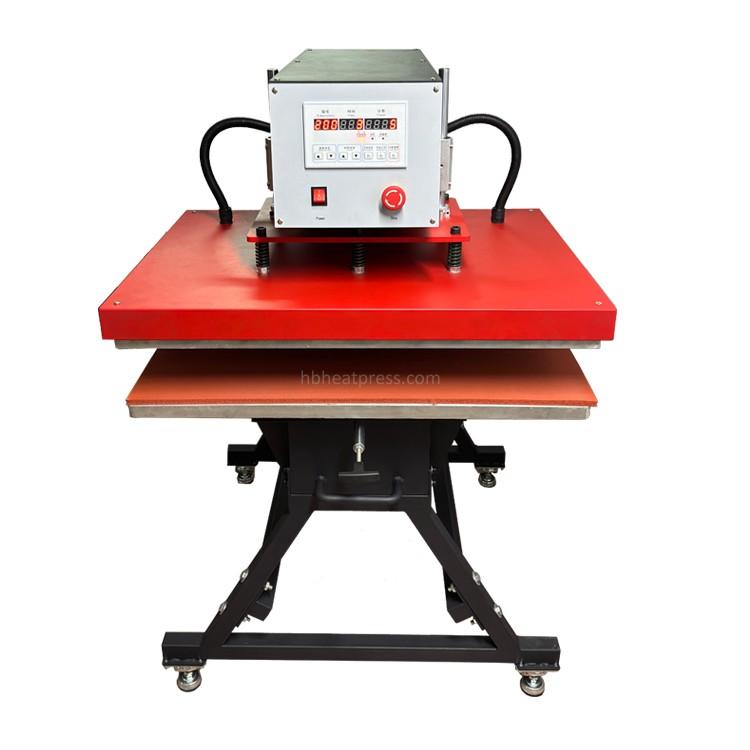

Integrated temperature and time counting panel, easy to operate. When the count reaches 9999 pieces, you can press the count reset button.


The heavy-duty frame can make sure that the frame will not shake no matter whether the heating plate is raised or pressed down during the operation of the machine.


The 6 springs are used to provide a buffering effect during the pressing process of the heating plate, making the pressing process more stable and smooth.


The machine is equipped with a tripod with wheels by default. After receiving the machine, you need to install the tripod and then place the main unit on the tripod. Wheels are installed to facilitate changes in the machine's position.

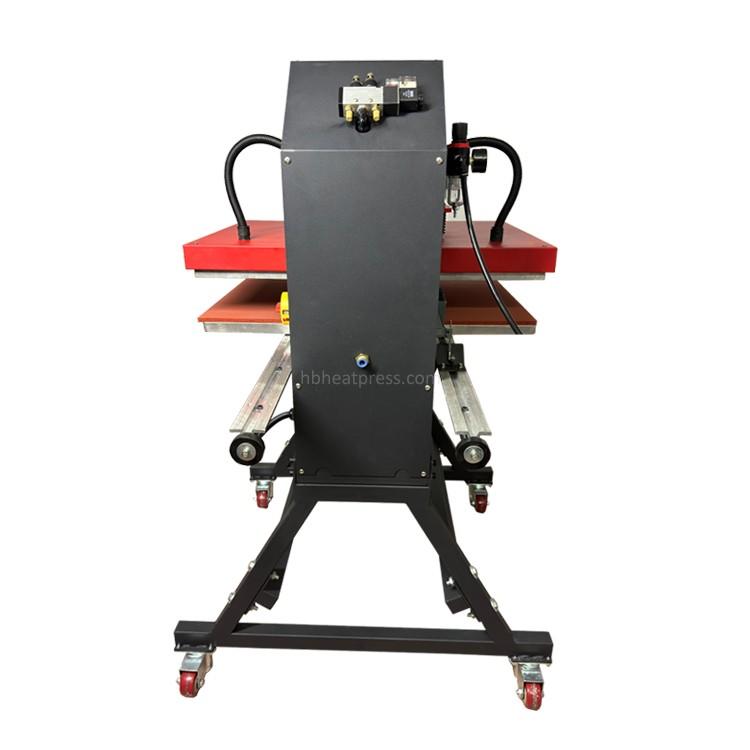

Although the machine has no visible cylinder, it is pneumatic because its cylinder is hidden. On the side of the machine, the pressure of the machine can be adjusted through the air pressure regulating valve.

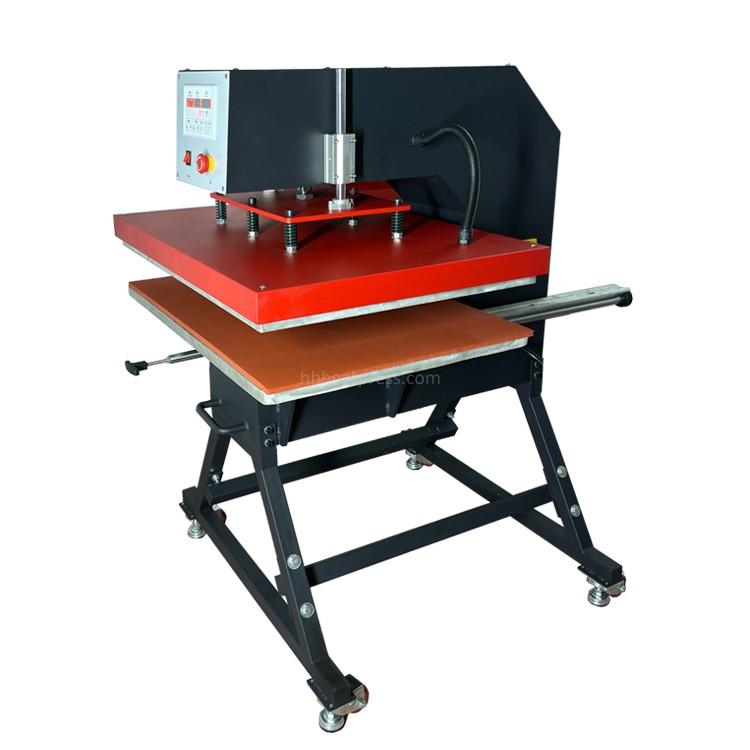

60x80cm heat press.jpg

Technical parameters


No
Item
Data
1
Total Power
HB-0814-1
2
Platen size
60x80cm
3
Timer control
0-999 seconds
4
Temperature range
0-300℃
5
Button control
Yes
6
Counting pieces display
Yes
7
Voltage
220V 1 phase,220V 3 phase, 380V 3 phase
8
Power
6KW
9
Thickness of silicone pad
1cm
10
With laser alignment
Yes
11
Pressure
0-8 kg
12
Net weight
160kg
13
Gross weight
200kg
14
Packing dimension
130x90x93cm
15
Package type
Plywood case
16
HS Code
8443399000

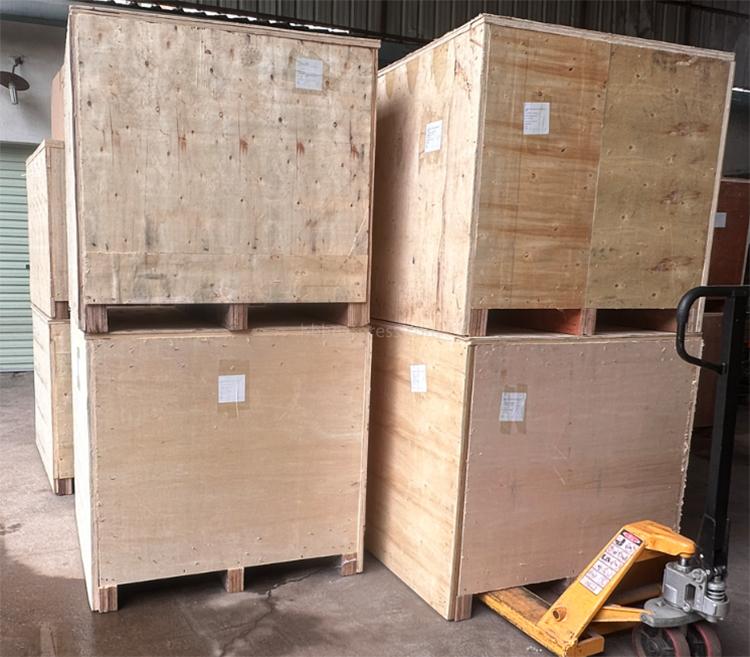

Heat transfer machine package
heat press package.jpg

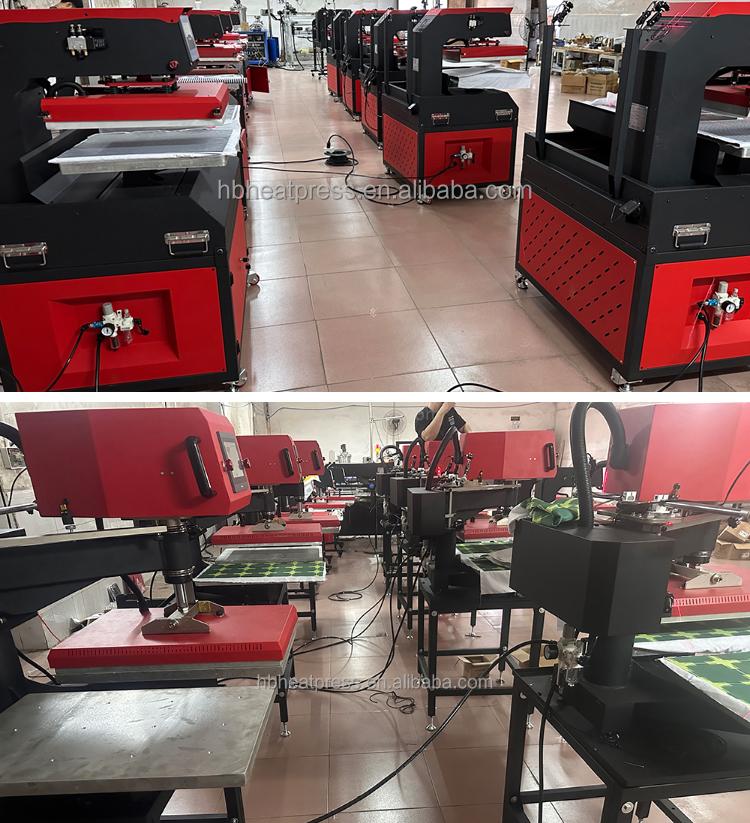

Heat press workshop

automatic heat press.jpg

FAQ:

Q1: Is it pneumatic or electric?

A1:  It is pneumatic.


Q2: Which air compressor do I need for it?

A2: You need the 1.1 KW power and 50L capacity air compressor.


Q3: Do I need to install the machine when I receive it?

A3: Yes, you need to install the stand. And then put the main machine body on it.


Q4: How thick are the silicone pads which come with the machine?

A4: They are 1 cm thick.


Q5: How many units of this 60x80cm heat press machine can be loaded into a 20 ft container?
A5: 20 units.
