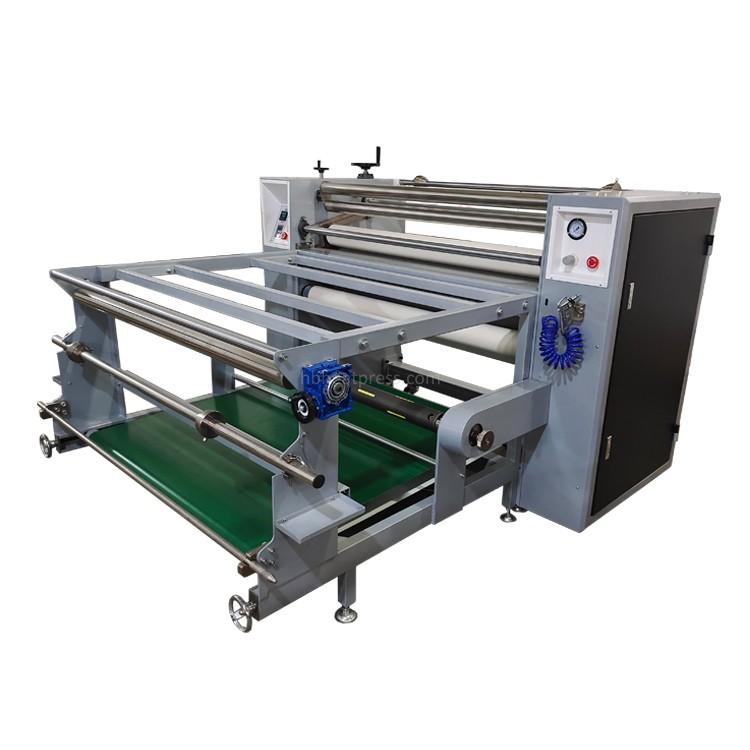

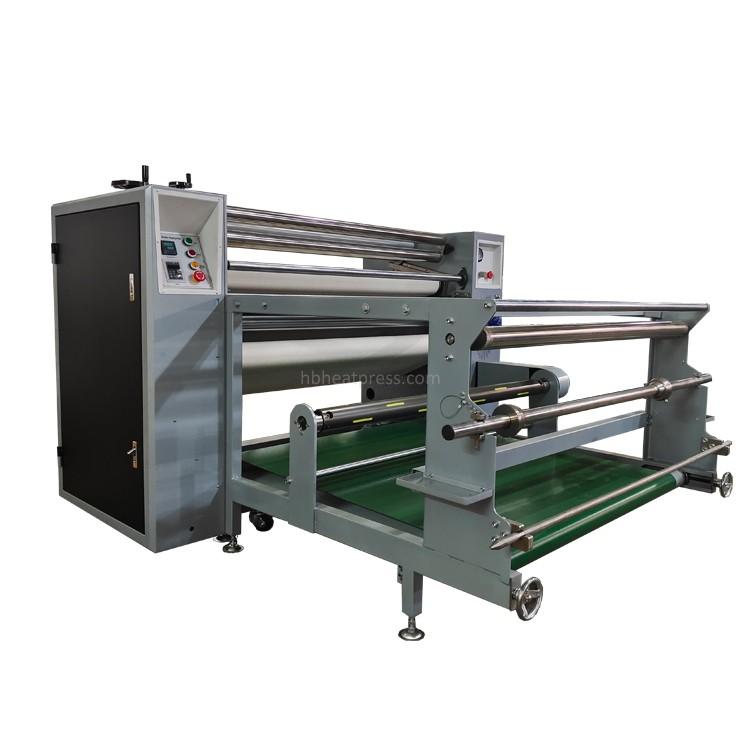

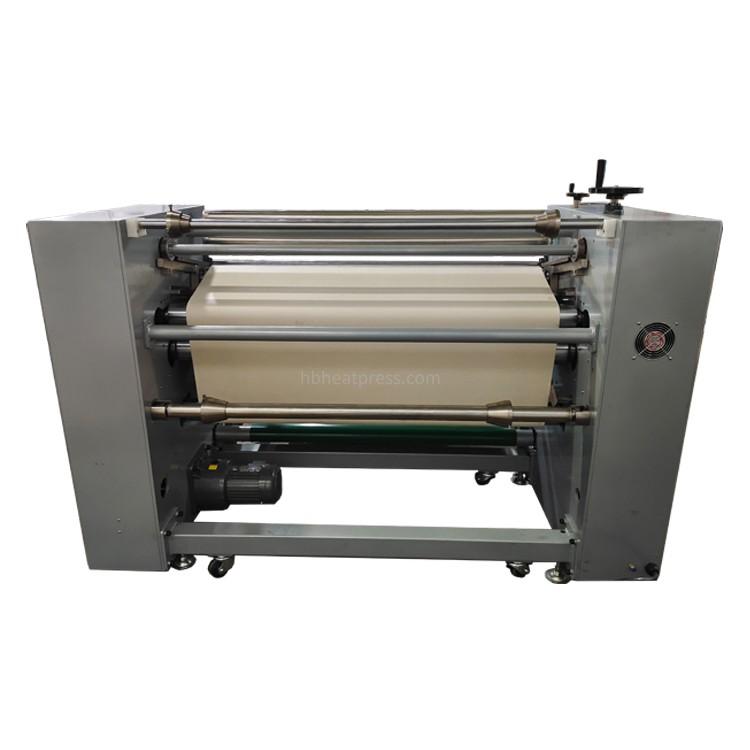

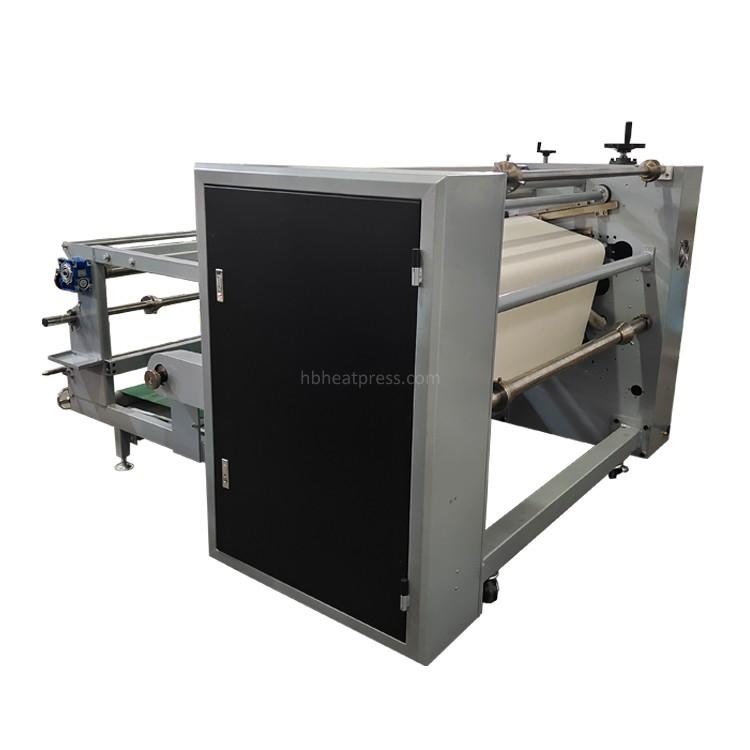

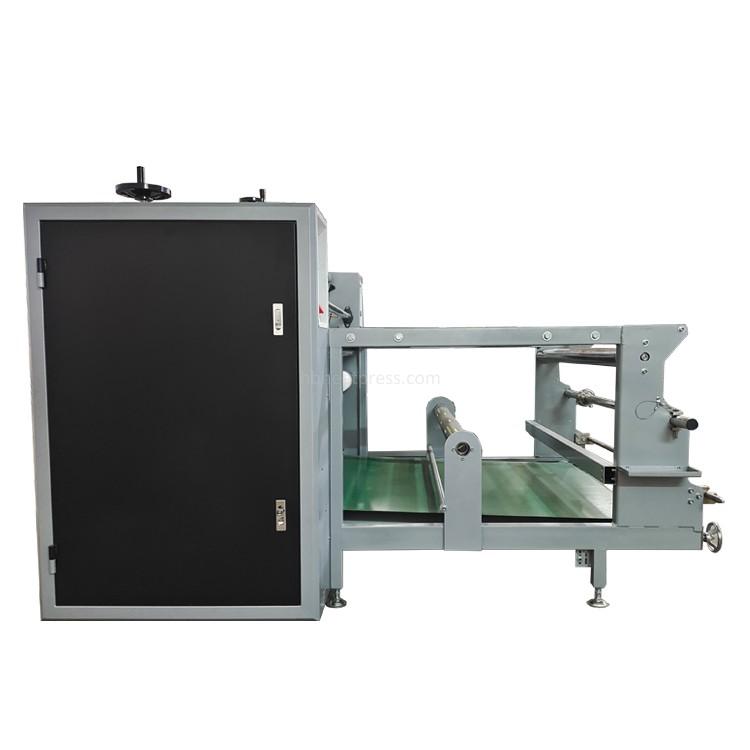

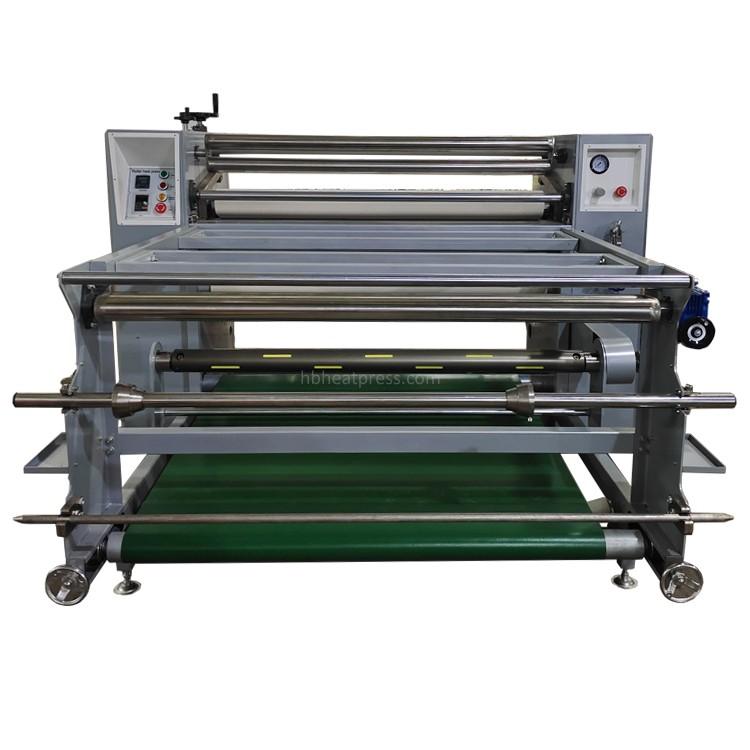

Calendar thermal press for flags

Roller width: 1200mm (available in other widths)
Roller diameter: 210mm
Heating method: Oil heating
Roller type: Chrome-plated
Voltage: 220V 1 phase, 220V 3 phase and 380V 3 phase

Product Description:

Features

This calandra has a pressure roll that is connected to an air cylinder. When the "forcing" button is pushed, the roll will be moved by the air cylinders on the left and right sides to make greater contact with the blanket.


After some time passes, the blanket's circumference will get longer.If the blanket is too loose, the roll can be changed to the following position to make it tighter.


It is a regular version calendar. So it has an automatic blanket alignment system.The automatic deviation correction system can avoid the waste of materials caused by the transfer defects caused by the deviation of the felt, and can avoid the cost of replacing the felt caused by the deviation of the felt and the friction to the machine wallboard to damage the blanket


The printed pieces can be moved to the end of the table using a conveyor belt that is attached to it.


The tension of both protection paper and sublimation paper can be altered using their respective speed reducers.


The air shaft is for collecting the used sublimation paper.


When the temperature reaches 90°C, the automated shutdown button can be used to turn the machine off at the conclusion of the working day.


44 inch calender.jpg

Technical parameters

Item

Data

Control panel

Digital button control

Drum diameter

215mm

Drum width

1200mm (other drum widths are available)

Temperature range

0-260

Pressure range

0-8kg

Total Power

8KW

Main motor power

0.4KW

Heat transfer power

5.6KW

Automatic shutdown

Yes

Automatic blanket alignment

Yes

Adjustable blanket length

Yes

Safety design

Yes

Heating type

Thermal oil heating

Voltage

220V 1 phase/220V 3 phase/380V 3 phase

Number of air shaft

1

Working way

Roll to roll, roll to pieces, pieces to pieces

Packing dimension

205x101x156cm


Working flow

calandra with belt 210.png

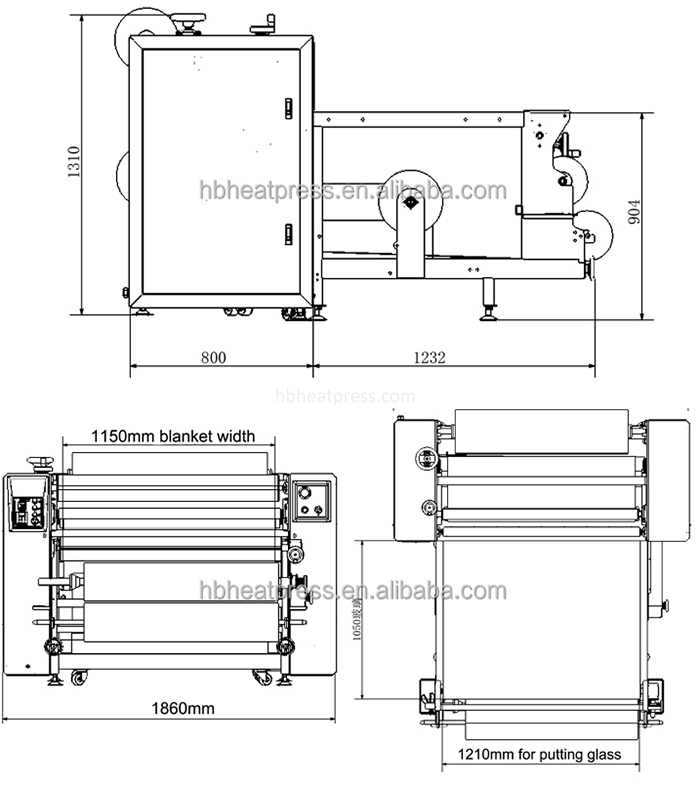

Calendar heat press dimension

calender thermal press.png

FAQ

Q1: Is it oil heated?

A1: Yes, it is oil heated.



Q2: How can I know which roller width is suitable for me?

A2: If the printing width is 1150 mm, you can choose the 1300 mm drum width.



Q3: How many meters per hour it can transfer?

A3: Sublimation speed is 35 to 50 meters per hour.



Q4: Why does the automatic pneumatic pressure function be needed?

A4: It is perfect for thin fabric especially those are less than 100 grams. And with the pneumatic pressure, you can sublimate with higher speed.



Q5: What is air shaft?

A5: Air shaft means it will be inflatable after you charge air for it. Use the air expansion to secure down paper tube instead of screws.
