Product

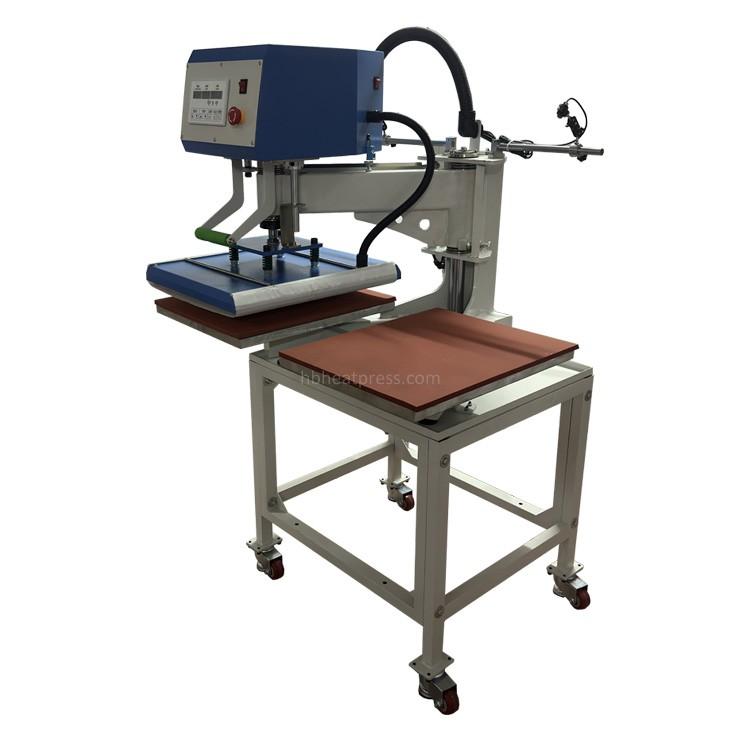

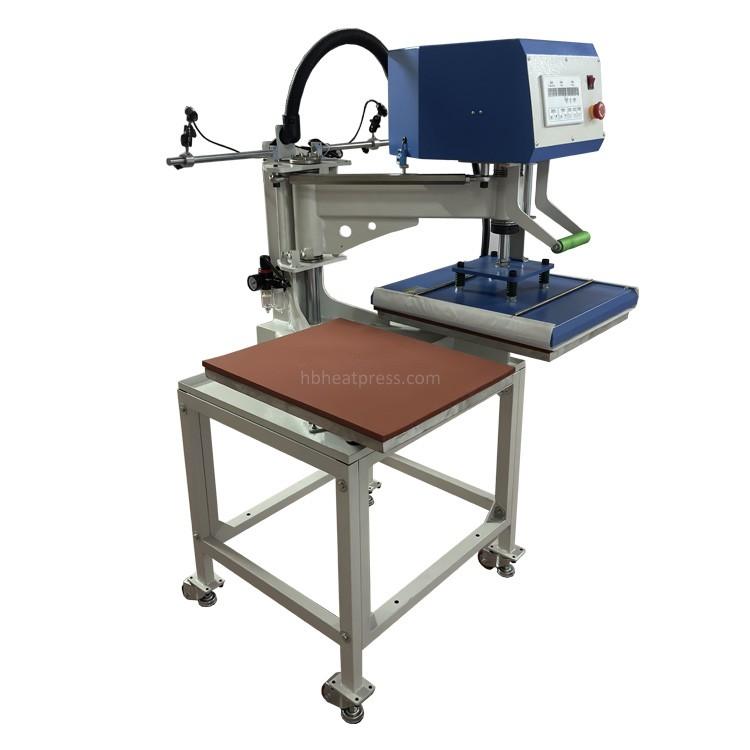

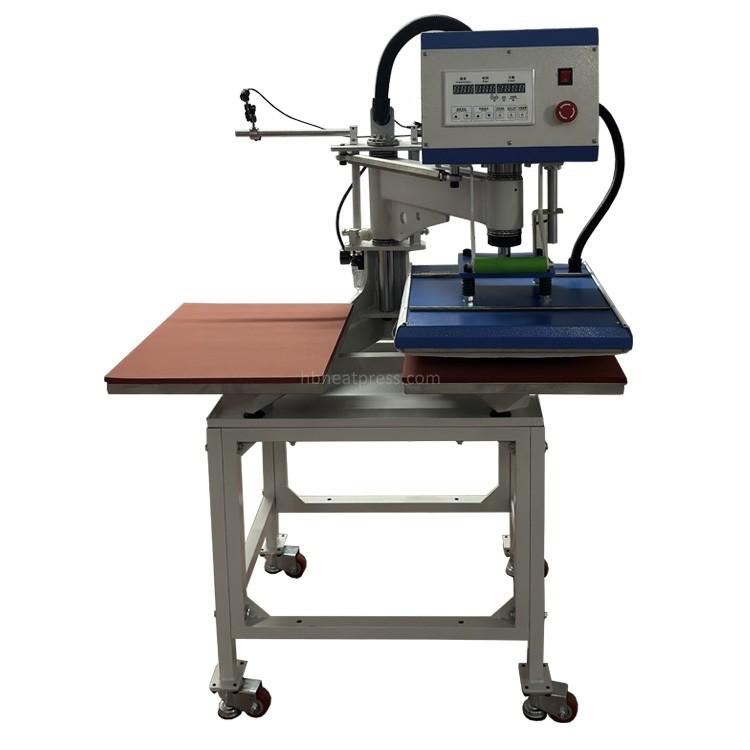

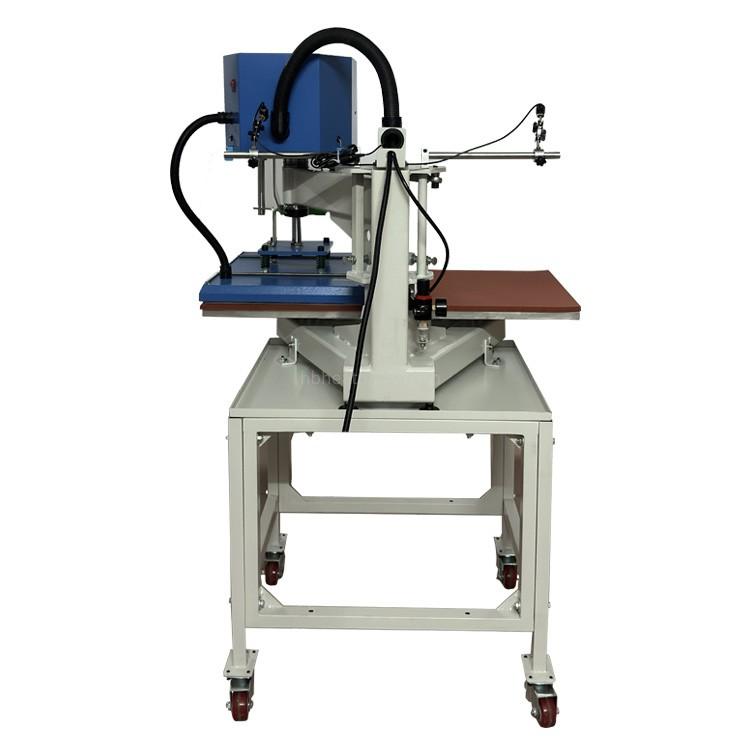

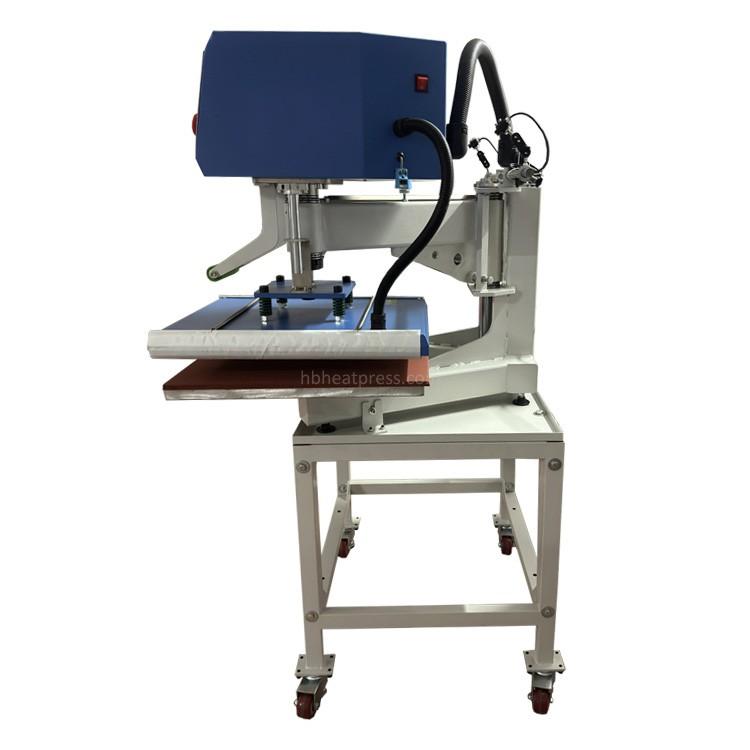

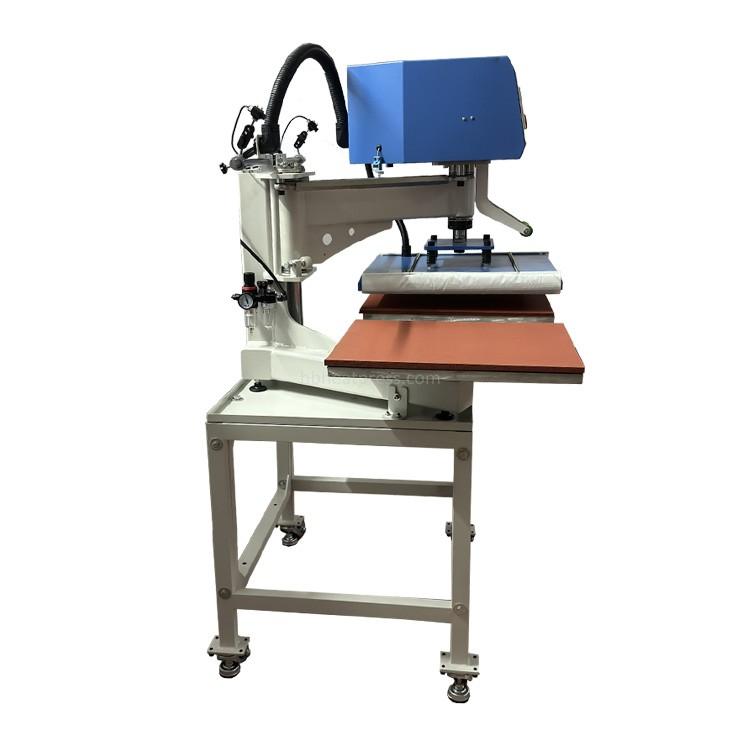

16x20 swing away heat press

Platen size: 16x20 inches and 16x24 inches
Temperature range: 0-300℃
Timer control: 0-999seconds
Pressure: Adjustable
Machine type: Pneumatic

Product Description:

Features

There is no doubt that the shaking head heat press is more popular in the European and American markets than other styles of heat presses. You can use it to heat transfer beach slippers, coasters, puzzles, T-shirts and more.


In the past few years, DTF transfer has become very popular, so many customers also need laser alignment for the heat press to help the operator quickly place the garments on the exact positions.

This machine uses a button to control the laser alignment on and off.


For different heat transfer substrates, the pressure , time and temperature can be adjusted to ensure the transfer effect.


The maximum counting reading is 9999. After pressing 9999 times, it needs to be cleared and counted again.


The heat press machine is furnished with a tripod in addition to four wheels that make moving the device easier.


The semi-automatic swing away heat press is simple and convenient to operate. You only need to manually move its head left and right, and then it will automatically press down.


Each workstation is equipped with a 1cm high-quality silicone pad, which is durable and pressure-resistant and will not deform under long-term high temperatures.


swing heat press.jpg

Technical parameters


No
Item
Data
1
Total Power
3.5KW
2
Platen size
40x50cm(16"x20") and 40x60cm(16"x24")
3
Timer control
0-999 seconds
4
Temperature range
0-300℃
5
Button control
Yes
6
Counting pieces display
Yes
7
Voltage
220V 1 phase
8
Plug type
European plug, UK plug, American plug, etc.
9
Thickness of silicone pad
1cm
10
With laser alignment
Yes
11
Pressure
0-8 kg
12
Net weight
160kg
13
Gross weight
210kg
14
Packing dimension
103x100x100cm
15
Package type
Plywood case
16
HS Code
8443399000

Heat transfer machine package
heat press package.jpg


Heat press workshop

automatic heat press.jpg

FAQ:

Q1: Is it semi-automatic or fully automatic

A1:  It is semi-automatic.


Q2: Which air compressor do I need for it?

A2: You need
