Lanyard printing machine heat press transfer

Features

This lanyard sublimation machine adopts the bottom feeding type, the feeding is simple and convenient, and it is easy to align the pattern to the ribbons. Heat transfer oil has been refined to expel air before sealing to ensure oil evenly heats across the whole drum, which offers you a uniform printing result.

Fixed-size ribbon positioning shafts eliminate the need for cumbersome loosening and locking screws. For example, if you sublimate 20 mm wide ribbons, you can put the 2 rods for 20mm at the entrance.

The top shelf is designed with transfer-printed double-sided webbing, because after the ribbons feed in for the first time, when they come out, they need to go around the upper shelf, and then turn the left and right hand wheels to adjust to make the ribbons tighter.

The machine has an automatic pneumatic pressurization function, which allows you to transfer any thickness of lanyards.

If there is a sudden power failure in the workshop, and the machine is over 100℃, the felt can be separated from the drum by turning the hand wheel on the left side.

The air shafts can help you quickly pull out the waste papers.

A 0.4 KW silent main motor is used to ensure the smooth operation of the machine without noise.

The blanket's circumference can be altered if it is stretched after a prolonged use of the calendar.

.

Technical parameters

Ribbon calendar dimension

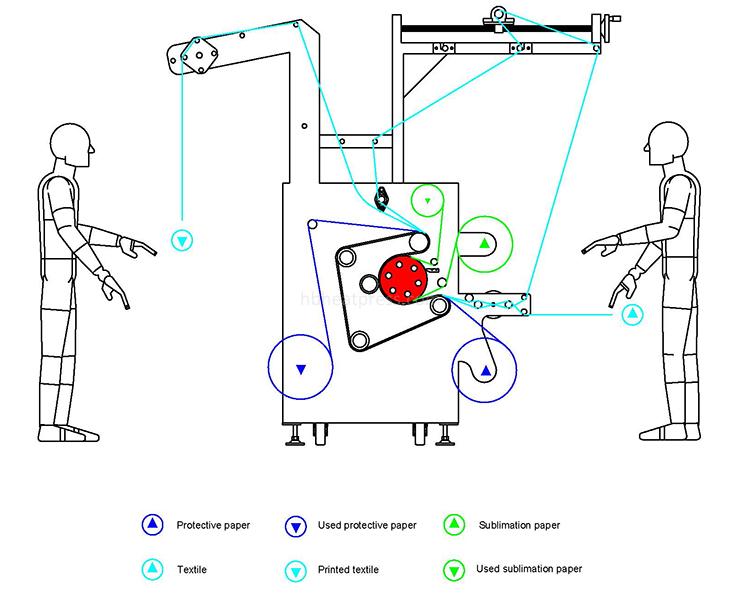

Working flow

FAQ:

Q1：Is it oil heated?

A1: Yes, it is thermal oil heated.

Q2: Do I need an air compressor for the calandra?

A2: Yes, you need it. It has pneumatic pressure function and the air shafts need to be charged air.

Q3: How many meters per hour it can transfer?

A3: Sublimation speed is 35 to 50 meters per hour for every single lanyard. But you can sublimate a few pieces at the same time.

Q4: Why do I need the automatic pneumatic pressure function?

A4: It is perfect for thin ribbon. And with the pneumatic pressure, you can sublimate with higher speed.

Q5: How many pieces of ribbon can I sublimate at the same time?

A5: If you print single side ribbon with 20mm width, you can print 22 pcs. If double side, it will be 11pcs.

Q6: Can it be 220V 1 phase?

A6: Yes, it can.
