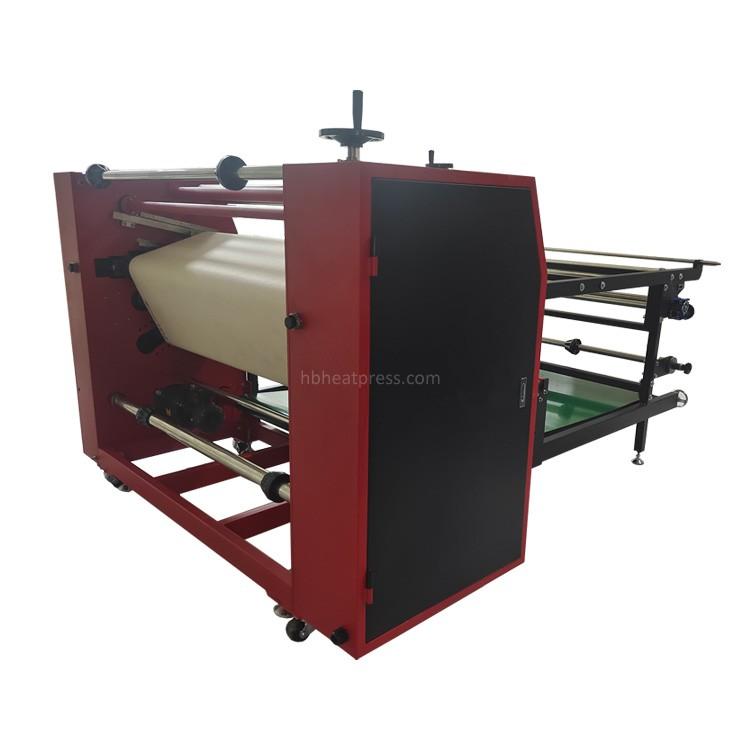

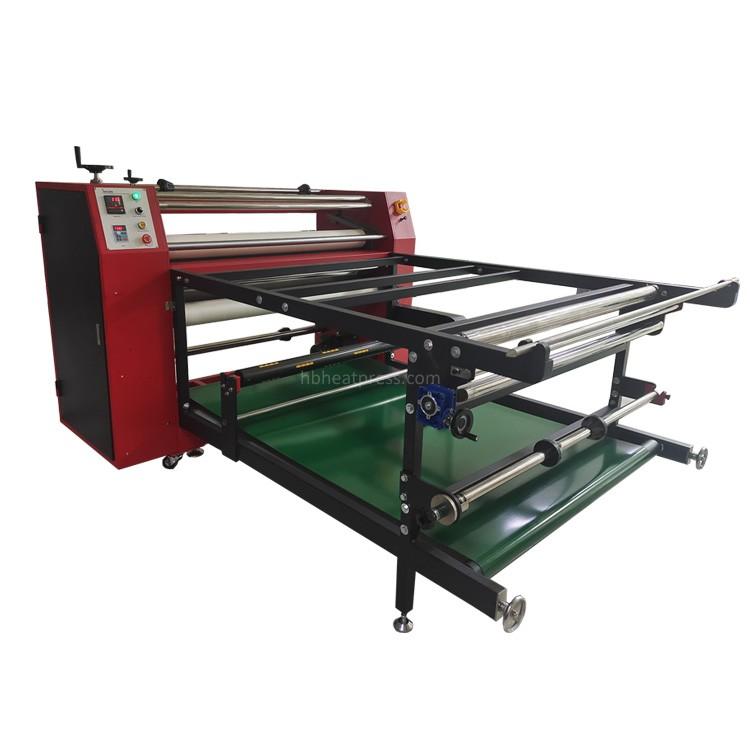

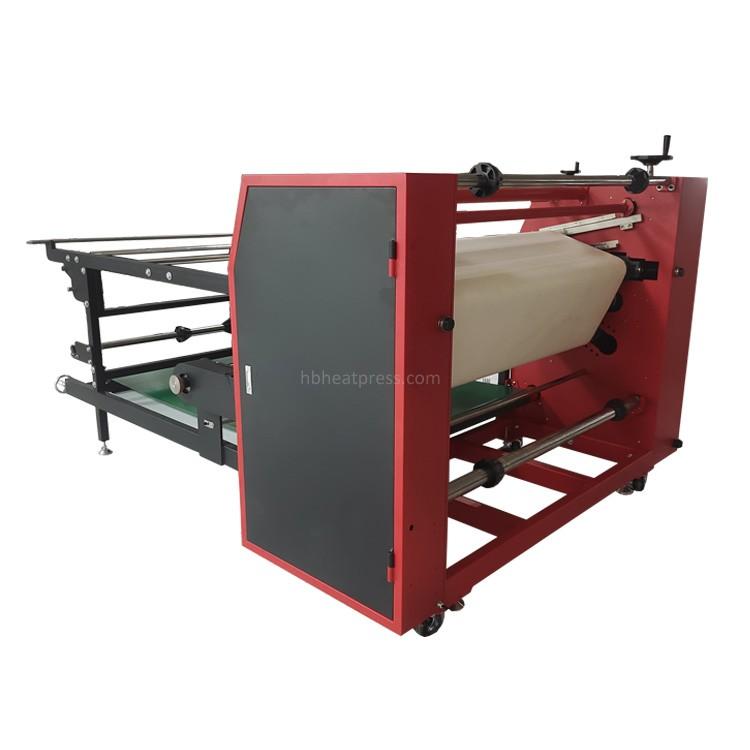

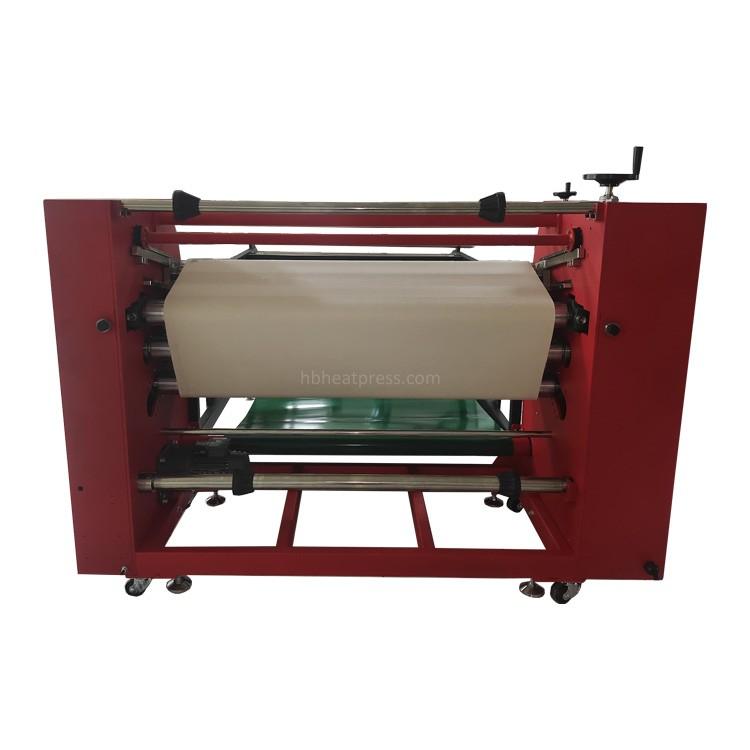

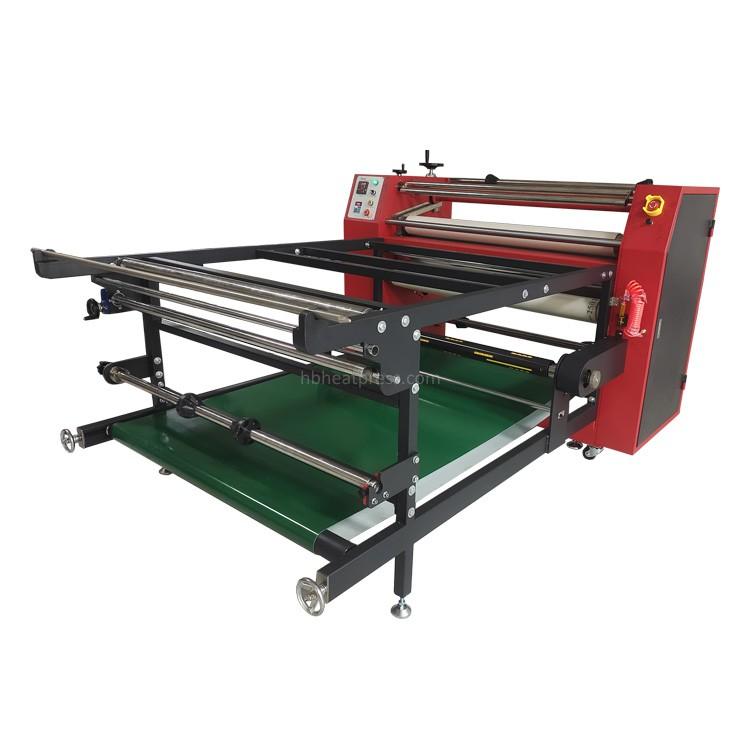

Sublimation heat calander

Drum type: chrome-plated
Heating type: Oil heating
Suitable for: Roll to roll and roll to pieces sublimation fabric printing
Temperature range: 0-260℃
Sublimation speed: Adjustable
Drum forward and reverse: Yes

US$4100-US$4700

Product Description:

Features

For shops that are just starting to produce sublimation fabrics, this 210mm-diameter roll heat transfer machine is undoubtedly a good choice. It has a low price and medium functional performance. There is a pneumatic pressurization function to meet the production of various fabrics.

Oil Heating System: Oil heating is to make sure the machine keeps heating evenly all the time. In the few years , if oil becomes too old or not enough, just need to replace it or fill more.

User-Friendly Controls: Set temperature by the temperature controller, set speed by the speed panel through turning the knob. Switch drum forward and reverse at any time. Push the "automatic shutdown" button at the end of working day for turning off the machine. The drum will keep rotating till temperature drops down to 90 degrees Celsius.

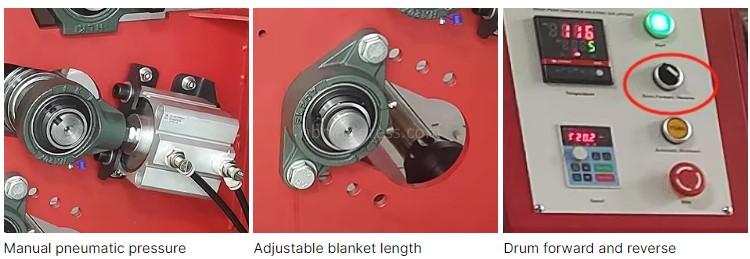

Reliable Performance: It installs air cylinders for pneumatic pressure to meet all requirements of fabric types.

Humanized design: If you protect the blanket well, it may run for long time. It is possible that you will need to adjust the circumference of the blanket. So that you can move the roller to the next position or next next position to set the blanket tight.

sublimation heat calander.jpg

Technical parameters

No	Item	Data	Data
1	Drum type	Durable chrome-plated double-layer
2	Drum diameter	Φ210mm
3	Drum width	1.8 m	1.3m
4	Printing width	1.65m	1.15m
5	Sublimation speed	Adjustable, mostly customers are using 35-50m/h
6	Main motor power	0.4KW
7	Voltage	220V 1 phase/220V 3 phase/380V 3 phase
8	Total power	11.2KW	8.2KW
9	Amperage for 220V 1 phase	51A	37A
10	Amperage for 220V 3 phase	29A	22A
11	Amperage for 380V 3 phase	17A	12A
12	Automatic blanket alignment	No
13	Manual pneumatic pressure	Yes
14	Automatic shutdown	Yes
15	Drum forward and reverse	Yes
16	Temperature range	0-260℃
17	Language of control panel	English

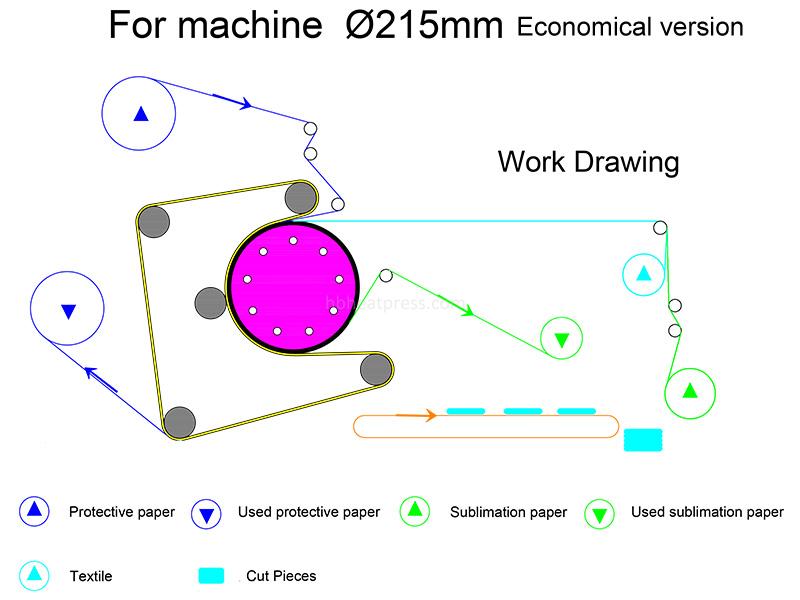

18	Working way	Roll to roll, roll to pieces, pieces to pieces

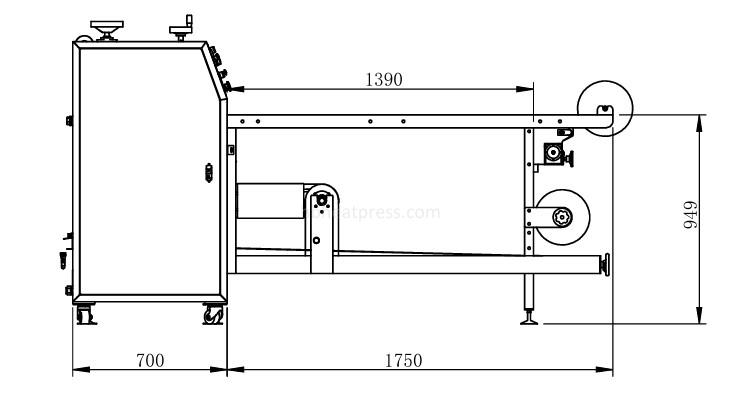

19	Packing dimension	258x96x155cm	215x96x155cm
20	Volume	3.84CBM	3.2CBM
