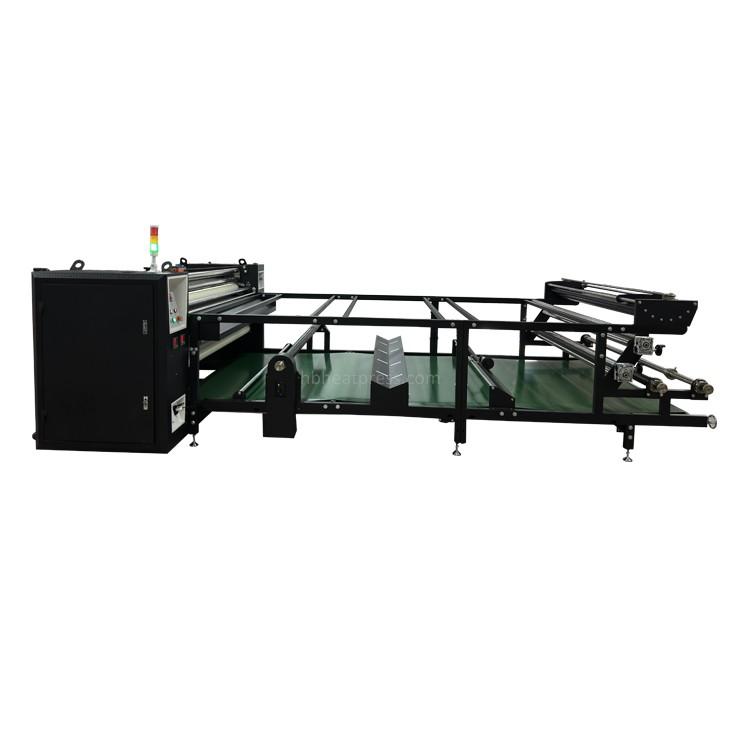

Ideal for: Roll to roll and roll pieces sublimation job Cylinder diameter: 32cm Cylinder width: 180cm Voltage: 380V 3 phase Temperature range: 0-260℃ Heating method: Oil heating
Features

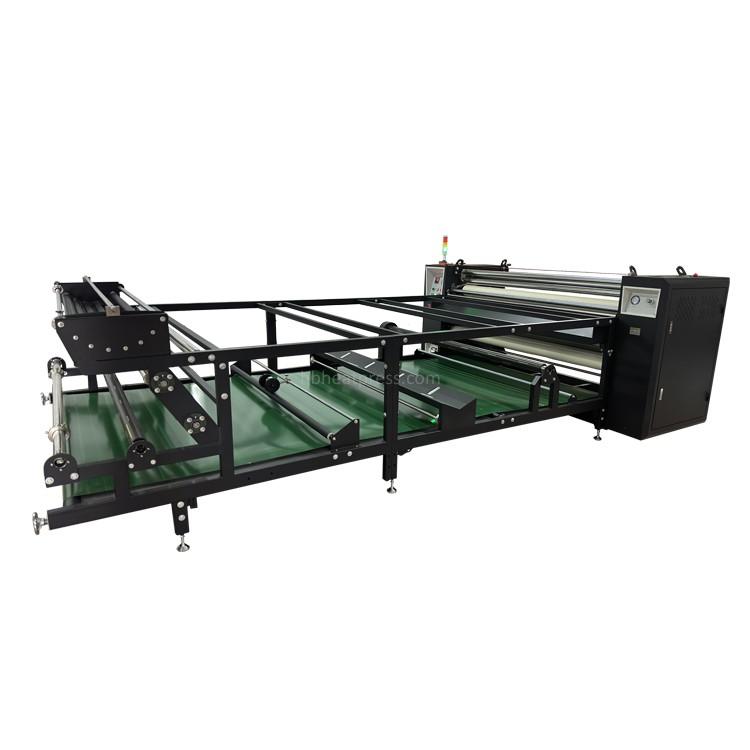

It is 320mm diameter, and the transfer printing speed is between 210mm and 420mm drum diameter machines, which is 50-70 meters per hour. The length of the workbench is the same as the 420mm diameter, and can be 2 meters or 3 meters or other customized sizes.
The calendar with a drum diameter of 320mm is the same as the machine with a drum diameter of 420mm. It has the function of automatically entering and separating the blanket. The blanket can be automatically entered by pressing the "blanket enter" button, and the blanket can be automatically separated by pressing the “stop” button. The forward and reverse rotation of the drum can be switched at any time.

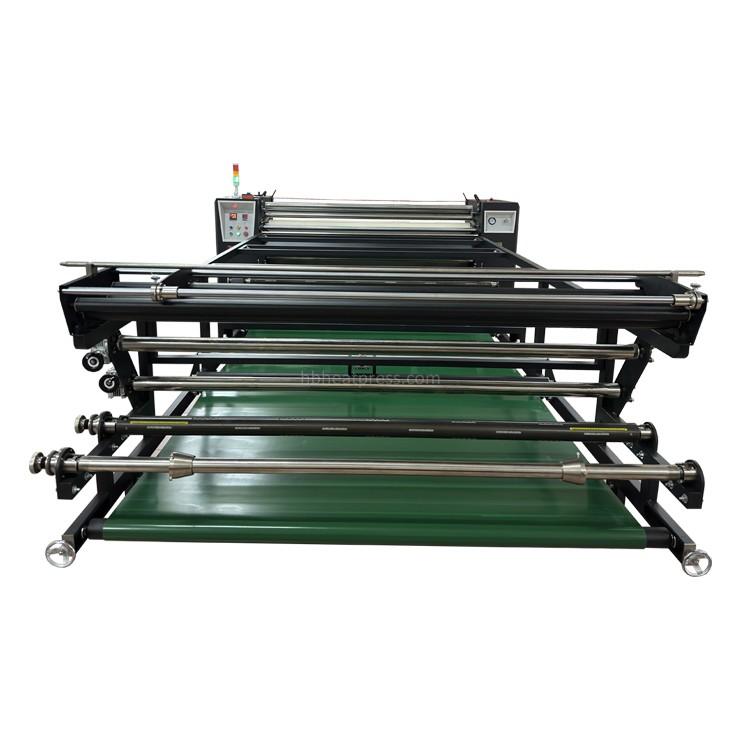

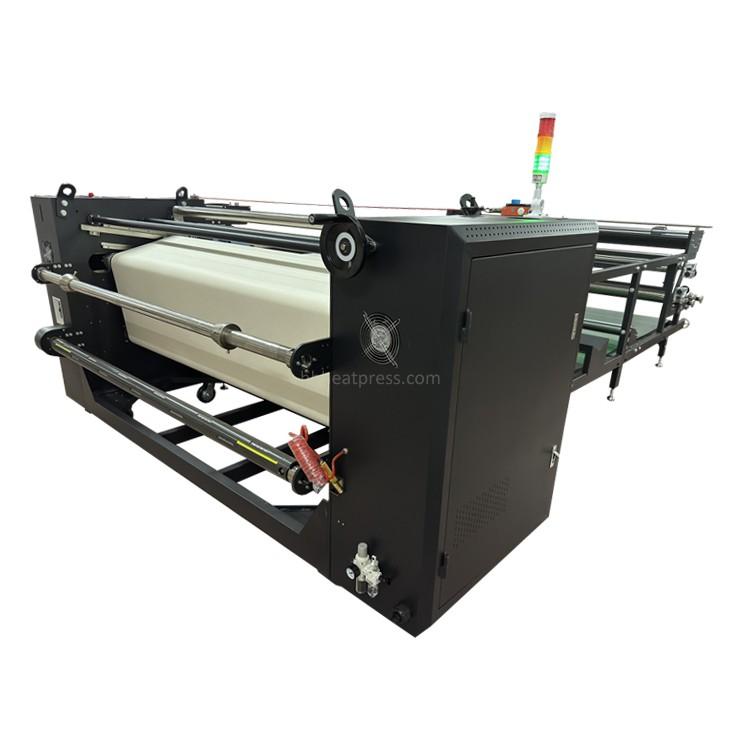

You can see that there are two shafts at the very end of the machine, both of which are used to place sublimation paper. While one roll of paper is transferring, the other roll can be ready. When roll 1 is transferred, roll 2 can be activated immediately.
Because it displays the current in real-time in relation to the actual voltage during the heating process, you can see from the image that it is 25A, 26A, and 27A.
The function of the fabric basket is to save time and effort. You don't have to worry about the paper tube of the cloth being deformed and unable to pass through the shaft. You can just put the fabric into the basket directly.
In addition to the textile basket, this machine can also be equipped with a winding system, a smoke exhaust system, etc.
Tehcnical parameters
Item | Data |
Drum type | Durable chrome-plated double-layer |
Drum diameter | 320mm |
Drum width | 1.8 m (other drum widths are available) |
Temperature range | 0-260℃ |
Control | Button control |
Main motor power | 0.55KW |
Other motors power | 0.15KW and 0.18KW, etc. |
Preheating power | 15KW |
Amperage for 380V 3 phase | 23A |
Amperage for 220V 3 phase | 39A |
Automatic pneumatic pressure | Yes |
Automatic blanket alignment | Yes |
Adjustable blanket length | Yes |
Automatic blanket moving | Yes |
Take-up system for printed textile | Optional |
Fume exhaust system | Optional |
Textile basket | Optional |
Number of air shaft | 2 |
Working way | Roll to roll, roll to pieces, pieces to pieces |
Packing dimension | 280x148x157cm |
Volume | 6.5 CBM |
Working drawing
Calender sublimation dimension
FAQ:
Q1: Which drum width should I choose?
A1: If the printing width is 1,65 m, you can choose the 1,8 m drum width.
Q2: How many meters per hour it can transfer?
A2: Sublimation speed is 50 to 70 meters per hour.
Q3: Which type of drum do you use?
A3: We use the chrome-plated drum. It is more durable, anti-stretching, etc.
Q4: How many pieces of air shaft does it come with?
A4: It comes with 2 standard air shafts.
Q5: How do I install the calandra when I receive it?
A5: We have the PDF for instructions of assembly.
