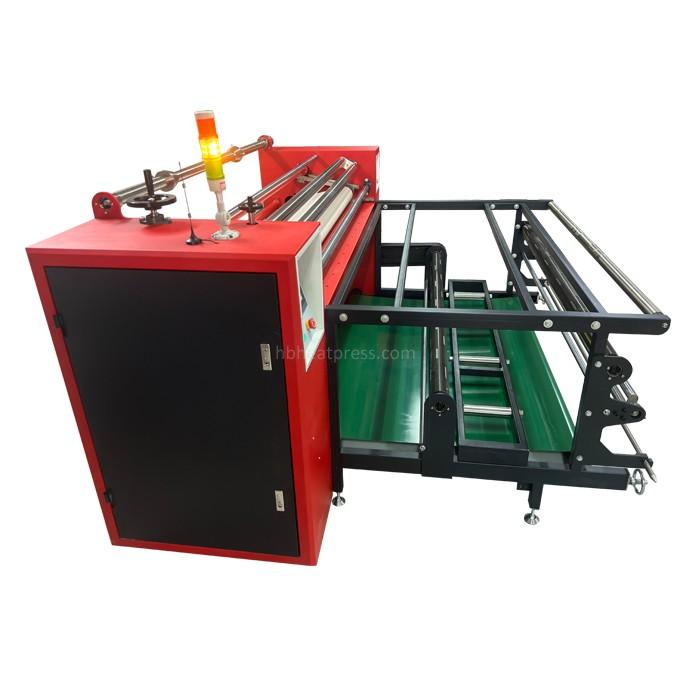

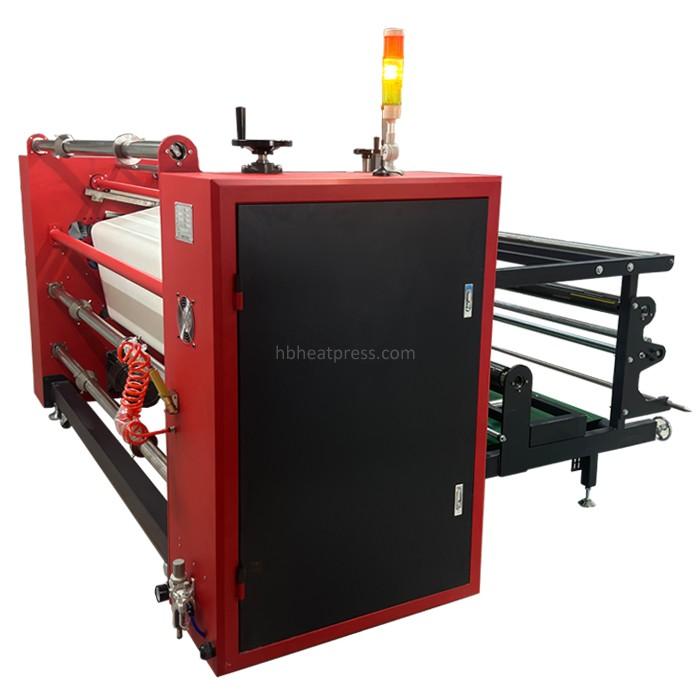

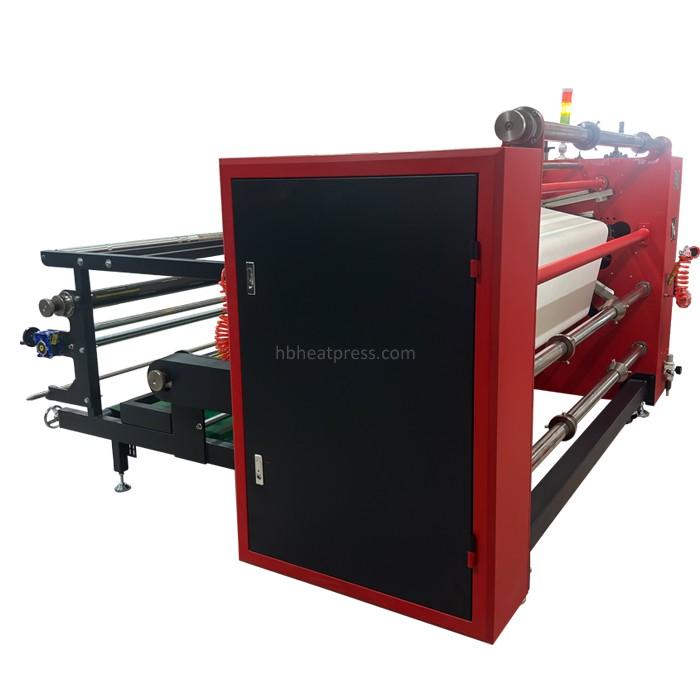

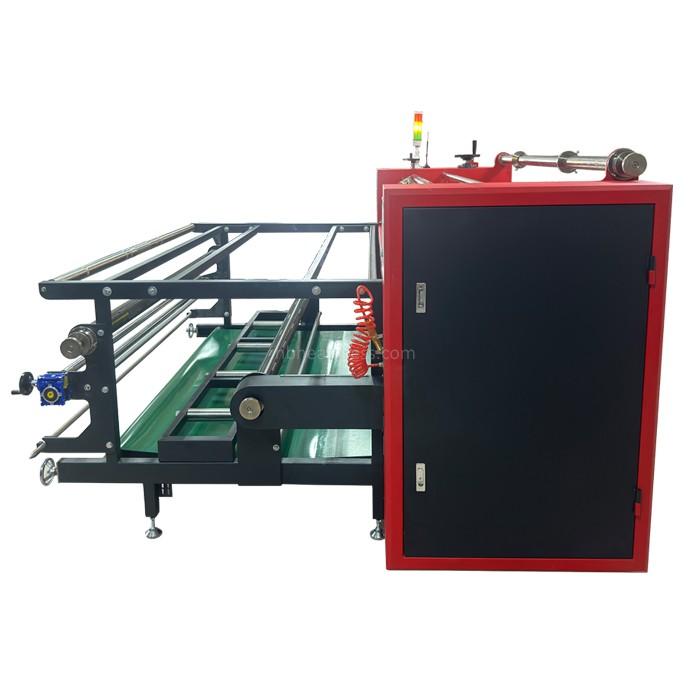

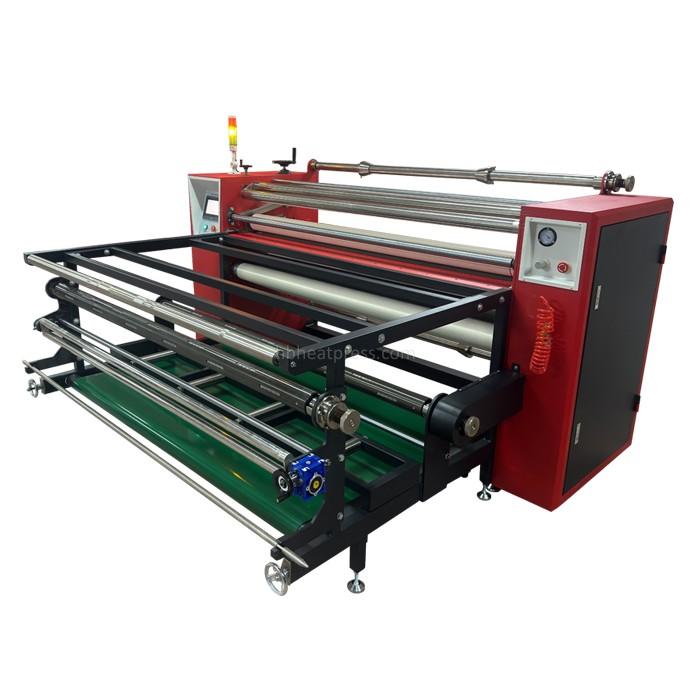

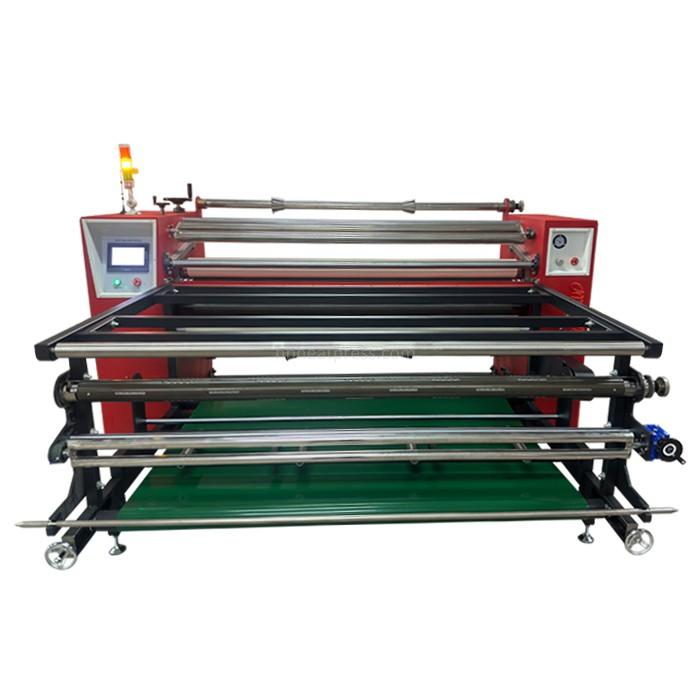

Textile Sublimation 1.7m Calendar Heat Press

Textile Sublimation 1.7m Calendar Heat Press

Drum type: chrome-plated
Heating type: Oil heating
Suitable for: Roll to roll and roll to pieces sublimation fabric printing
Temperature range: 0-260℃
Sublimation speed: Adjustable

Product Description:

Features

This machine is an improved version of the standard control sublimation calendar unit. A PLC touch screen for simpler temperature, speed, etc. setup. If an issue arises, alarm information will be displayed on the touch screen. Spanish, English, and Chinese are all available on the screen for the operator to select from, making it more accessible for those whose first language is any of those two.

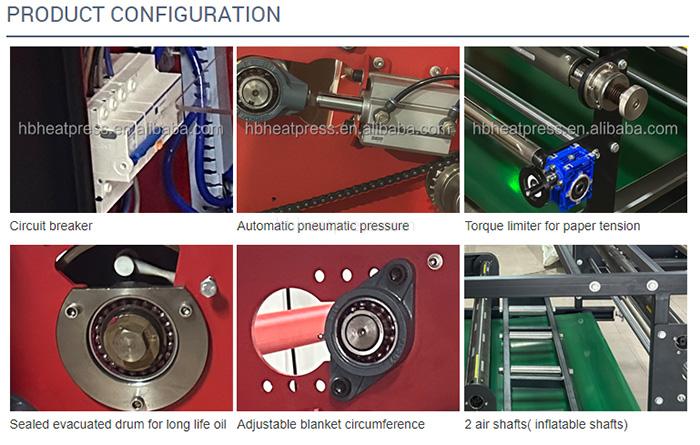

In the future, if any heating element burns out and causes electricity leakage, or the leakage caused by other electrical appliances of the machine, it will automatically trip as soon as the machine is started. The safety of the user is guaranteed, and it is also convenient to monitor problems.

Simple and easy to adjust the circumference of the blanket. When the blanket is used for a long time, it will generally become loose, which will affect the transfer effect. You can move the blanket shaft connected to the left and right bearings to the next position to make the blanket tighter.

There is a cylinder on the left and right sides of the machine connected to the pressurizing shaft. If the fabric needs to be pressurized, just hit the "pressure" by the touch screen.

Sealed evacuated drum can prevent air contacting the thermal oil inside the drum. This prolongs the life of the heat transfer oil. Avoids the trouble caused by frequent oil changes to users

sublimation calender.jpg

Technical parameters

Item	Data
Drum type	Durable chrome-plated drum
Drum diameter	215mm
Drum width	170cm ( other drum widths are available)
Temperature range	0-260℃
Touchscreen control	Yes
Language	English and Espanol
Total power	10.6KW
Heat transfer power	7.7KW
Automatic shutdown	Yes
Automatic blanket alignment	Yes
Adjustable blanket length	Yes
Safety design	Yes
Heating type	Thermal oil heating
Voltage	220V 1 phase/220V 3 phase/380V 3 phase
Number of air shaft	2

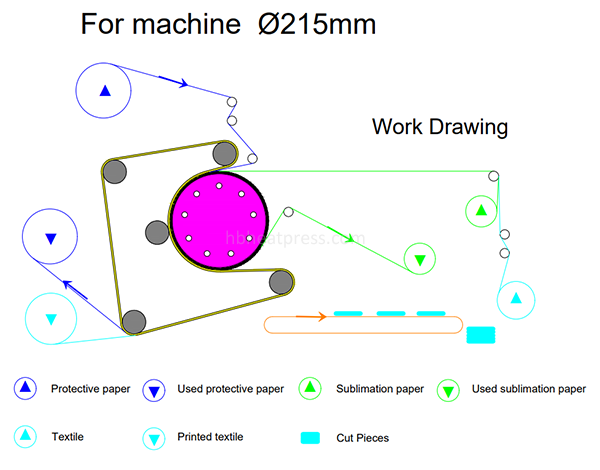

Working way	Roll to roll, roll to pieces, pieces to pieces

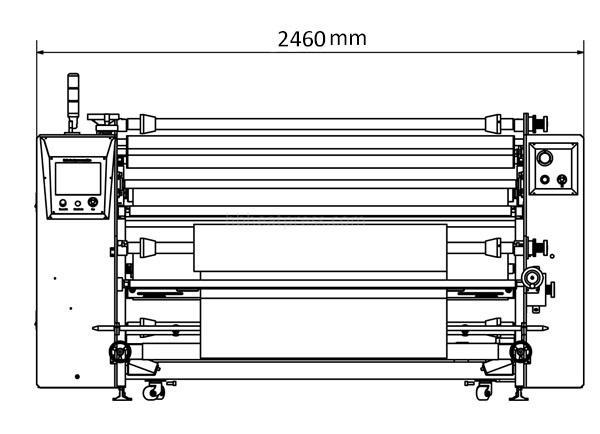

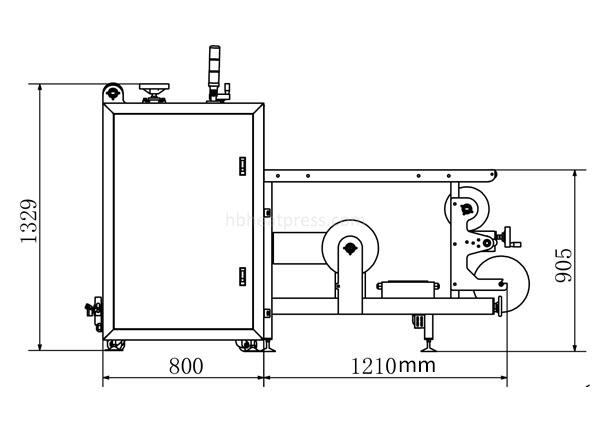

Packing dimension	265x101x152cm
