Product

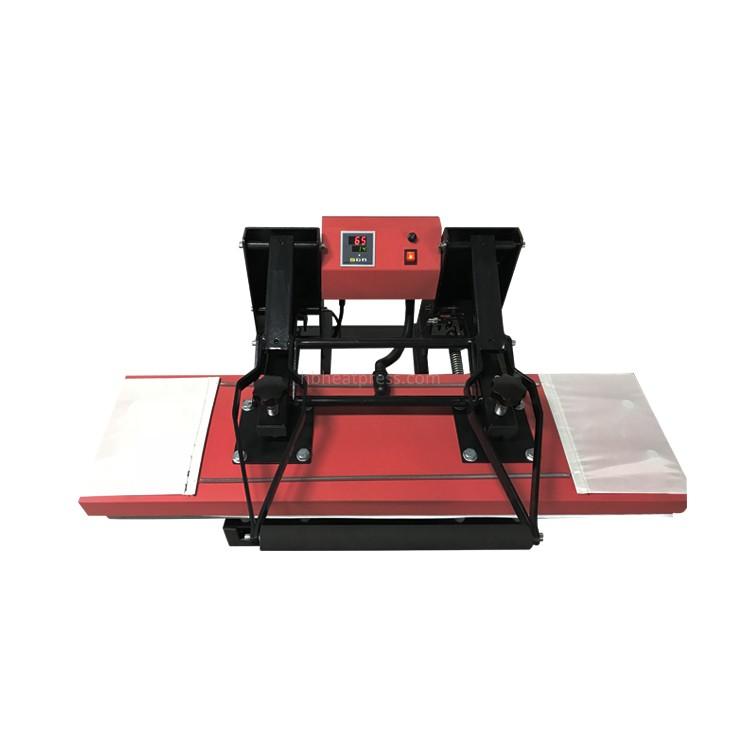

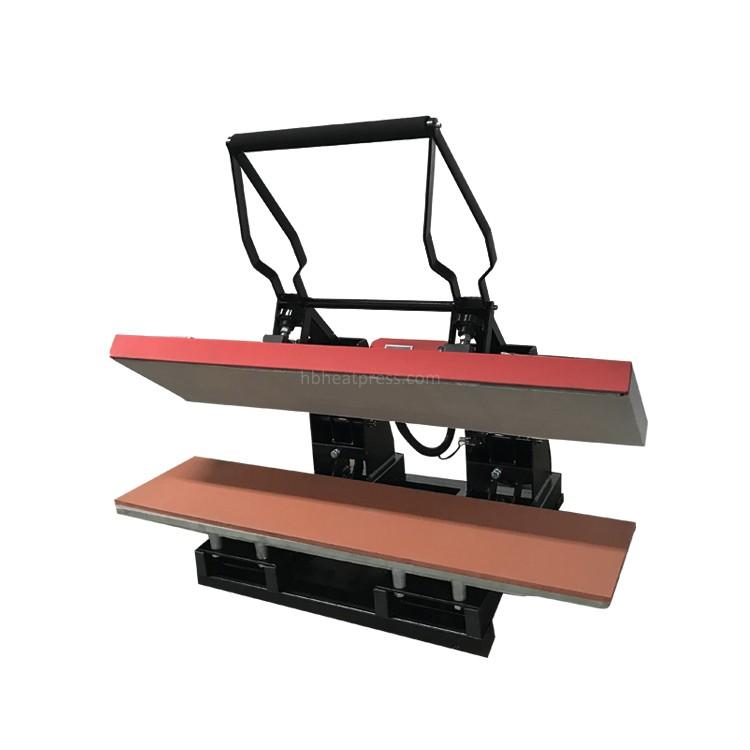

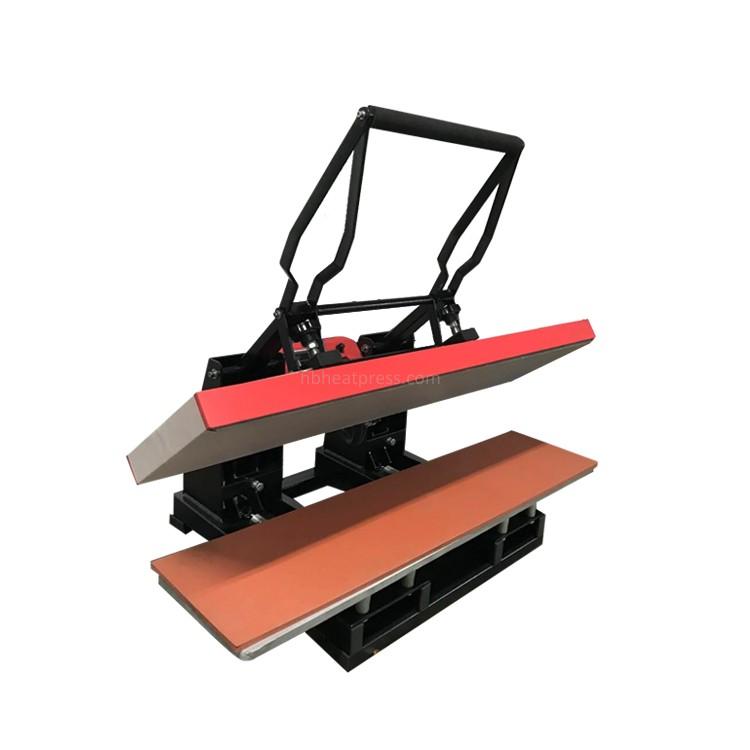

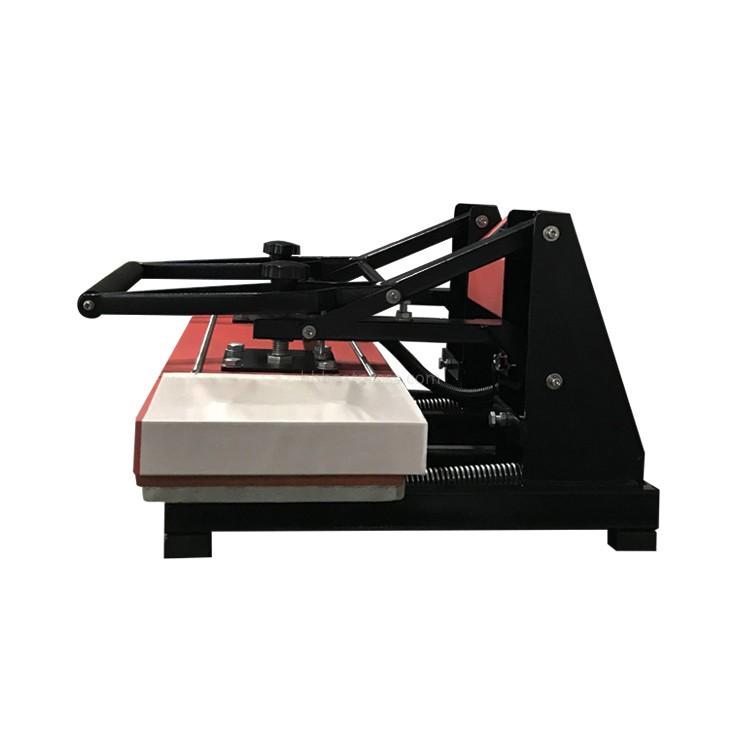

Lanyard heat press machine

Platen size: 25x100cm
Temperature range: 0-300℃
Timer control: 0-999seconds
Pressure: Adjustable
Machine type: Manual
Voltage: 220V 1 phase
Power: 2.5KW

US$350-US$400

Product Description:

Features

The heating plate size of this lanyard heat press machine is 25x100cm. It is designed for customers who occasionally need to transfer lanyards.

Of course, it can also be used to transfer long substrates, such as scarves.

It can only transfer one side and does not come with a feeding device. If you need to sublimate two sides, you need to choose another one.


Intelligent control panel, after turning on the power button, you can adjust the heating plate temperature and hot pressing time on the thermometer.


The 2 knobs on the machine is used for adjusting pressure.


Since it uses a heavy-duty frame, the carton is not enough to support it, so it is packed in wooden boxes to ensure the safety of the transportation process.


Technical parameters

No
Item
Data
1
Model
HB-S25100
2
Total power
2.5KW
3
Platen size
25x100cm
4
Temperature range
0-300℃
5
Timer control
0-999 seconds
6
Power
2.5KW
7
Voltage
220V 1 phase
8
Pressure
Adjustable
9
Thickness of silicone pad
1cm
10
Machine type
Manual
11
Heating platen
Single
12
Net weight
80kg
13
Gross weight
120kg
14
Packing dimension
110x77x63cm
15
Package type
Plywood case
16
HS Code
8443399000

Heat transfer machine package
heat press package.jpg


Heat press workshop

automatic heat press.jpg

FAQ:

Q1: Is it pneumatic or electric or manual?

A1:  It is manual


Q2: Does it come with a feeding system ?

A2: No, it doesn't.


Q3: Do I need to install the machine when I receive it?

A3: You don't need to install it.


Q4: Does it have a plug?

A4: Yes, it comes with plug type you need.
